GTXGN-12KV High voltage solid ring insulated cabinet Electrical control cabinet Switch control cabinet

Introduction:

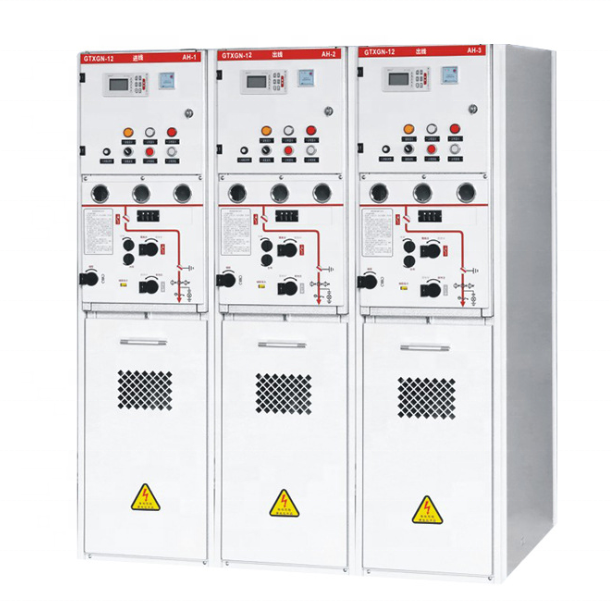

GTXGN-12 series solid insulated ring network cabinet is a fully insulated, fully sealed, and maintenance-free solid insulated vacuum switchgear. All high-voltage live parts are molded with epoxy resin material with excellent insulation performance, and the vacuum interrupter, main conductive circuit, insulating support, etc. are organically combined into a whole, and the functional units are connected by a fully insulated solid busbar. Therefore, the entire switchgear is not affected by the external environment, and the reliability of the operation of the device and the safety of the operator can be ensured. Because the product has the advantages of full insulation, full sealing, and full shielding, it is especially suitable for use in areas with high altitude, high temperature, mixed heat, severe cold, and severe pollution.

Product model and description:

Product parameters table:

Switch equipment technical parameters

Technical parameters of isolating grounding switch

Technical parameters of circuit breaker

Product dimensions :

Product solution application:

Isolated and non-isolated PT cabinets

circuit breaker cabinet

Circuit breaker busbar

Load switch cabinet

Load switch bus tie cabinet

Load switch fuse combination electrical cabinet

Metering Cabinets (Insulated and Common)

Lifting cabinet and isolation switch cabinet

Product main features:

Solid insulated fully enclosed switchgear: It is a single or combined main conductive circuit such as isolating switch, grounding switch, main busbar, branch busbar, etc., which is made of solid insulating material as the main insulating medium and conductive connection, and then wrapped and encapsulated with solid insulating medium. Or several modules with certain functions, which can be combined or expanded again with full insulation and full sealing performance. The three-position mechanism adopts an over-center spring design, which has the function of breaking and closing the load current, and can also realize manual and electric operation.

Environment condition:

Altitude:≤1000m

Ambient temperature: -35℃+45℃, the maximum daily average temperature difference ≤25℃.

The daily average relative humidity is not more than 95%, and the monthly average relative humidity exceeds 90%.

Shock resistance: 8 degrees.

Severe vibration and shock, no fire, chemical corrosion and explosion hazard area

P roduct details:

Actual Application Scenarios:

A corner of the production workshop:

More power distribution equipment, substations:

Practical application scenarios:

Delivery method:
