Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GOLDCNC
-
Model Number:
-
Z5140
-
Voltage:
-
220v/380v/customizable
-
Dimension(L*W*H):
-
1090*905*2465
-
Power (kW):
-
3
-
Weight (KG):
-
1250 KG
-
Marketing Type:
-
Hot Product 2021
-
Model:
-
Z5140
-
Max.drilling diameter (mm):
-
40
-
Spindle travel (mm):
-
250
-
Main motor power (kw):
-
3
-
Machine Weight (kg):
-
1090*905*2465 mm
-
Certification:
-
CE,ISO
-
Product name:
-

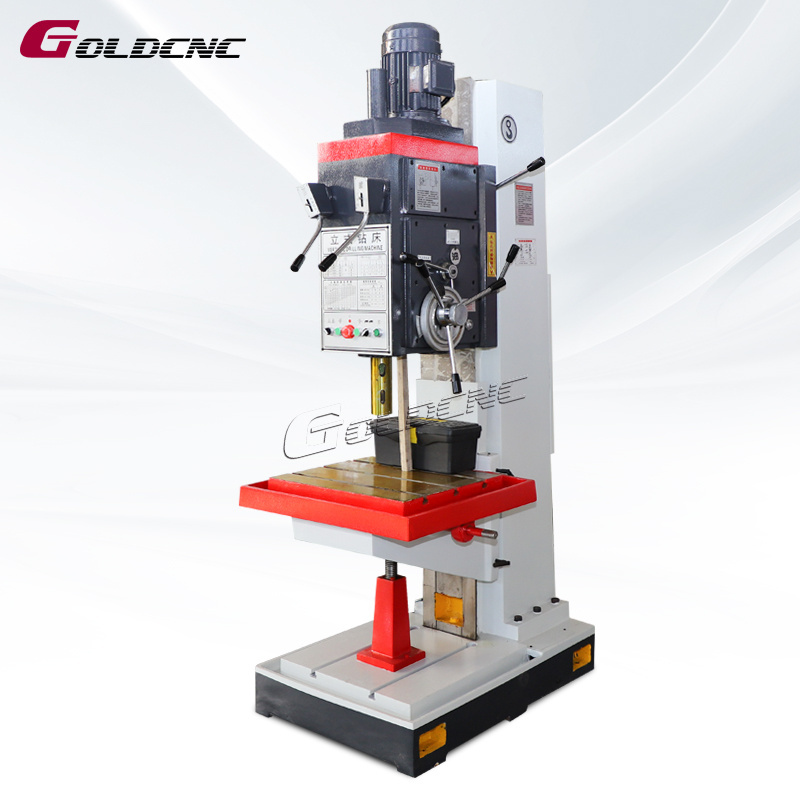

Z5140 40mm hole vertical small drill machine bench drill
-
After-sales Service Provided:
-
Online support,Video technical support
-
Keyword:
-
vertical drilling machine z5140
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
40
-
Range of Spindle Speed(r.p.m):
-
31.5 - 1400 r.p.m, 31.5-1400 (12-speed Variable speed)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GOLDCNC
-
Model Number:
-
Z5140
-
Voltage:
-
220v/380v/customizable
-
Dimension(L*W*H):
-
1090*905*2465
-
Power (kW):
-
3
-
Weight (KG):
-
1250 KG
-
Marketing Type:
-
Hot Product 2021
-
Model:
-
Z5140
-
Max.drilling diameter (mm):
-
40
-
Spindle travel (mm):
-
250
-
Main motor power (kw):
-
3
-
Machine Weight (kg):
-
1090*905*2465 mm
-
Certification:
-
CE,ISO
-
Product name:
-
Z5140 40mm hole vertical small drill machine bench drill
-
After-sales Service Provided:
-
Online support,Video technical support
-
Keyword:
-
vertical drilling machine z5140
Products Description
The base, column and worktable of the vertical drilling machine are made of gray iron casting, and the guide rails are quenched to ensure long-lasting accuracy and no deformation. The spindle speed control adopts high-performance spindle motor, low-speed torque is large, high-speed operation is stable and reliable.
The column is driven by a guide rail and a screw rod, and the worktable is lifted by a large pitch screw rod, which is durable and more abrasive, and has a long life.
Product Parameters
|
Main technical parameters
|
Unit
|
Z5140
|
|
Drilling diameter
|
mm
|
40
|
|
Spindle taper
|
|
MT4
|
|
Spindle stroke
|
mm
|
250
|
|
Headstock travel (manual)
|
mm
|
200
|
|
Spindle speed
|
level
|
12
|
|
Order of feed
|
level
|
9
|
|
Spindle speed range
|
r.p.m
|
31.5-1400
|
|
Feed range
|
mm/r
|
0.056-1.80
|
|
Worktable size
|
mm
|
560×480
|
|
Worktable longitudinal stroke
|
mm
|
450/300
|
|
Lifting stroke of table
|
mm
|
300
|
|
Distance from spindle end to table surface
|
mm
|
750
|
|
Main motor power
|
kw
|
3
|
|
Dimensions
|
mm
|
1090×905×2465
|
|
Machine weight (net weight)
|
kg
|
1250
|
Detailed Images
The transmission mechanism at all levels of the spindle is sensitive and reliable; the operating system is centralized, which is convenient and quick to use and convenient to maintai.
There is a dial on the hand wheel, which can accurately know the processing progress
Cast iron shell, all copper wire motor; sturdy and durable, full of power.
Reinforced column, stable operation; square worktable, convenient for processing needs of different workpieces.
Processing case
GOLD CNC aims to improve the reliable service system to provide high quality products and solutions for all fields of manufacturing users. Key Components Adopt International First-class Brand.Inaddition, we have obtained certificates.
Products are widely used in aerospace.automobiles, ships, electronics, mold manufacturing and other fields.
