Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIANHA
-
Voltage:
-
220/380/415
-
Dimension(L*W*H):
-
1925*2185*4657
-
Weight (T):
-
16 T
-
Model Number:
-
Y32-500T
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
Hot Product
-
Application:
-
Brake pads for auto, moto and heavy trucks
-
MOQ:
-
1
-
Certification:
-
CE ISO9001:2000
-
Type:
-

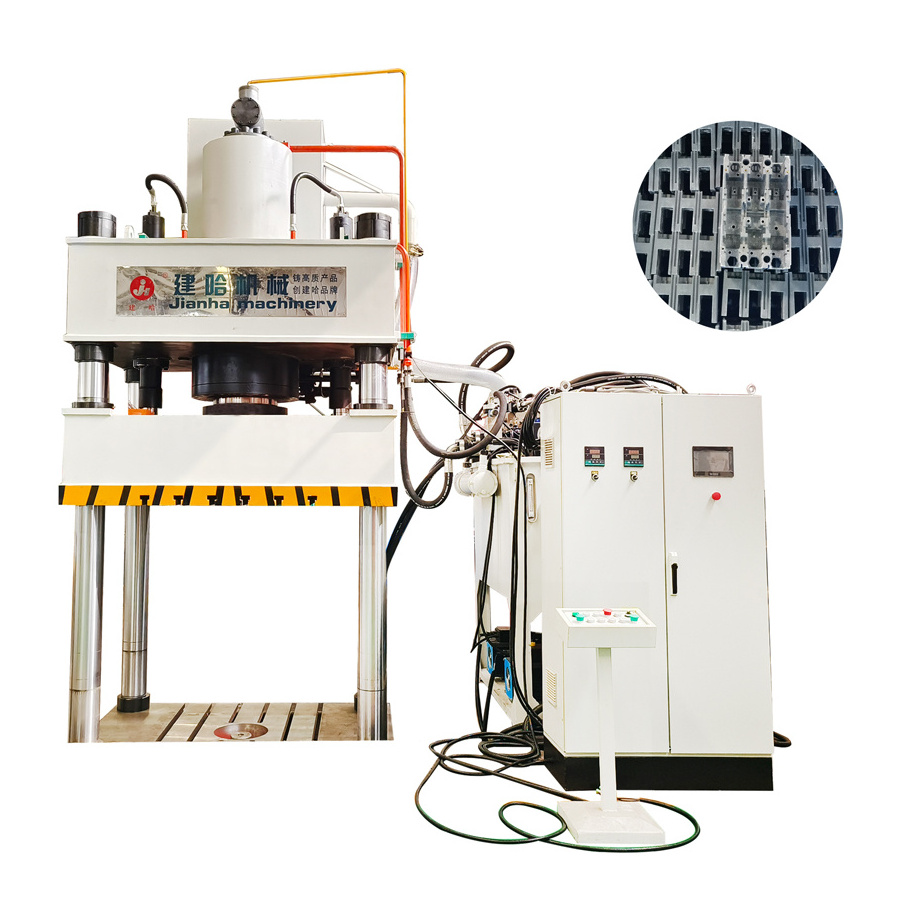

universal four column Hydraulic stamping press machine
-
OEM/ODM:
-
According to your requirement
-
Keyword:
-
Hydraulic Press Machine manufacturer
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
800mm
-
Return Force (kN):
-
380 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JIANHA
-
Voltage:
-
220/380/415
-
Dimension(L*W*H):
-
1925*2185*4657
-
Weight (T):
-
16 T
-
Model Number:
-
Y32-500T
-
Motor Power (kw):
-
15 kw
-
Marketing Type:
-
Hot Product
-
Application:
-
Brake pads for auto, moto and heavy trucks
-
MOQ:
-
1
-
Certification:
-
CE ISO9001:2000
-
Type:
-
universal four column Hydraulic stamping press machine
-
OEM/ODM:
-
According to your requirement
-
Keyword:
-
Hydraulic Press Machine manufacturer
|
Type Y-32-500T
|
|
|
Unit
|
Value
|
||
|
Nominal Pressure
|
|
|
KN
|
5000
|
||
|
System Pressure
|
|
|
MPa
|
25
|
||
|
Slider Stroke(customized)
|
|
|
mm
|
800
|
||
|
Maximum Opening Height(customized)
|
|
|
mm
|
1300
|
||
|
Effective Size of Workbench
(customized)
|
|
The Left and Right Sides
|
mm
|
1260
|
||
|
|
|
The Front and Rear Sides
|
mm
|
1160
|
||
|
Slide Speed
(customized)
|
|
fast down
|
mm/s
|
210
|
||
|
|
|
Fast work advancement
|
|
90-30 （Pressurized to 40T）
|
||
|
|
|
Working speed
|
|
3-7 （Pressurized to 40T-500T）
|
||
|
|
|
return speed
|
|
200
|
||
|
|
|
slow return speed
|
|
90
|
||
|
Motor Power(customized)
|
|
|
KW
|
15
|
||
|
Column diameter(customized)
|
|
|
mm
|
180
|
||
|
T-slot wideband(customized)
|
|
|
mm
|
28
|
||
|
T-slot center distance(customized)
|
|
|
mm
|
180
|
||
|
Number of T-slots(customized)
|
|
|
No.
|
6
|
||
|
Workbench height(customized)
|
|
|
mm
|
600
|
||
Features:
1. Computer optimize 3-beam, 4- column structure, simple but with high performance ratio.
2. Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
3. Independent electrical control, reliable, audio-visual and convenient for maintenance.
4. Centralized button control system, with adjustment, hand semi auto operation modes at operator's choice.
5. Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.
6. The machine has a rail automatic lubrication device.
7. The operating force, no load traveling and low speed movement and travel range can be adjusted subjectto technological requirements.
8. The stroke and pressure can be adjusted within specific range .
2. Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.
3. Independent electrical control, reliable, audio-visual and convenient for maintenance.
4. Centralized button control system, with adjustment, hand semi auto operation modes at operator's choice.
5. Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.
6. The machine has a rail automatic lubrication device.
7. The operating force, no load traveling and low speed movement and travel range can be adjusted subjectto technological requirements.
8. The stroke and pressure can be adjusted within specific range .
