Quick Details
-
Brand Name:
-
YUANDA
-
Fork Length:
-
2200mm
-
Fork Width:
-
1800mm
-
Overall Dimensions:
-
11670*4060*4754mm
-
Weight (KG):
-
50000 kg
-
Product name:
-
Industrial hydraulic diesel forklift for steel coil
-
Type:
-
Heavy duty steel coil loader forklift machine equipment
-
Loading Capacity:
-
10t 15t 20t 25t 30t 35t 40t 10ton 15ton 20ton 25ton
-
Weight:
-
30ton 35ton 40ton 45ton 50ton 45t 50t
-
Keywords:
-
forklift price for steel coil
-
Other name:
-
Steel coil handler lifter loader forklift
-
Power type:
-
Diesel Power
-
Attachments:
-
steel coil attachment
-
Tire:
-
Pneumatic
-
Model:
-
FD200, FD300, XJ953-16, HNF-400, ML4218RC
-
Marketing Type:
-
New Product 2023
Quick Details
-
Min. Lifting Height:
-
20' 40'
-
Warranty:
-
1 Year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
YUANDA
-
Fork Length:
-
2200mm
-
Fork Width:
-
1800mm
-
Overall Dimensions:
-
11670*4060*4754mm
-
Weight (KG):
-
50000 kg
-
Product name:
-
Industrial hydraulic diesel forklift for steel coil
-
Type:
-
Heavy duty steel coil loader forklift machine equipment
-
Loading Capacity:
-
10t 15t 20t 25t 30t 35t 40t 10ton 15ton 20ton 25ton
-
Weight:
-
30ton 35ton 40ton 45ton 50ton 45t 50t
-
Keywords:
-
forklift price for steel coil
-
Other name:
-
Steel coil handler lifter loader forklift
-
Power type:
-
Diesel Power
-
Attachments:
-
steel coil attachment
-
Tire:
-
Pneumatic
-
Model:
-
FD200, FD300, XJ953-16, HNF-400, ML4218RC
-
Marketing Type:
-
New Product 2023

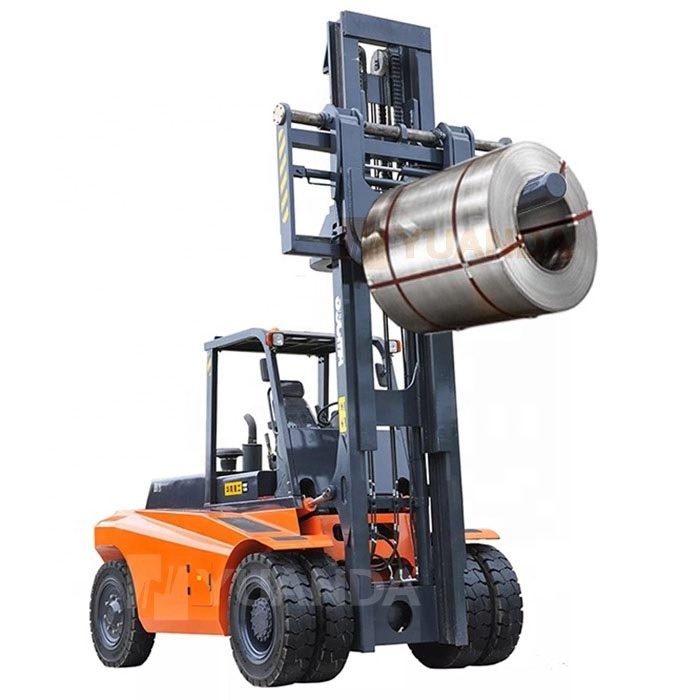

10 20 25 30 35 40 ton hydraulic arm steel roll reel coil lift handle ram boom clamp forklift for with steel coil attachment
Sheet Coil Handling – Coil Ram Solution
A coil ram on YUANDA lift trucks is a popular and cost efficient solution for handling Steel Coils with low damage risk to the coils thanks to round outer surface of ram and bevelled ram tip. Single Ram is the most widely used Ram type for sheet steel coil handling. Ram attachment can be single, double or multiple depending on handling needs.
Steel Coil Lift Trucks are available in lift capacities ranging from 20 to 60 tons. Our lift trucks are designed to meet the challengers of heavy lifting and handling applications in steel making, oil and gas production, or any extreme weight lifting applications.
FEATURES of our 30 ton diesel forklfit
Dual variable: (gearbox and torque converter) with the introduction of technology products, reliable performance, easy maintenance, the equivalent of auto-dial, smooth transmission, easy to operate;
Control system: single handle pilot valve, electronically controlled hydraulic speed control valve so that the whole operation is lighter, more modern, improve work efficiency and reduce pilot labor intensity, is high-level and high-level symbol.
Hydraulic system: double pump confluence, the system flow is small, low power consumption, reliable performance, excellent operational performance;
Pipeline: the high pressure using the German standard tubing, impact resistance, wear resistance, long service life;
Tyres: Joint-us venture high-strength tire wear stab-resistant to withstand heavy safe and reliable;
Fork: Featuring the world's first brand cascade forks, higher strength, more wear-resistant, can be multiplied and increased life expectancy;
Mast: The box-type outside door frame, a special round roller bearing, improve lifting performance;
Cooling system: independent transmission oil and hydraulic oil cooling, improve system stability;
|
Model |
Unit |
FD300 |
|
|
Power Type |
Diesel |
||
|
Rated Capacity |
kg |
30000 |
|
|
Load Centre |
mm |
1220 |
|
|
Lift Height |
mm |
4000 |
|
|
Fork Size |
L*W*T |
mm |
2400*320*110 |
|
Mast Tilt Angle |
F/R |
Deg |
6°/12° |
|
Fork carriage width |
mm |
3000 |
|
|
Ground Clearance(Bottom of mast) |
mm |
350 |
|
|
Overall Width |
mm |
3060 |
|
|
Mast Lowered Height |
mm |
2830 |
|
|
Mast Extended Height(With backrest) |
mm |
3970 |
|
|
Overhead Guard Height |
mm |
3440 |
|
|
Turning Radius (outside) |
mm |
6160 |
|
|
Speed |
Travel (Full load) |
km/h |
24 |
|
Lifting (Full load) |
mm/s |
260 |
|
|
Max Gradeability |
% |
22 |
|
|
Tyre |
Front |
mm |
14.00-24 |
|
Rear |
mm |
14.00-24 |
|
|
Wheel base |
mm |
4400 |
|
|
Self weight |
kg |
38000 |
|
|
Engine |
Model |
WD10G240E |
|
|
Manufacture |
WEICHAI |
||
|
Rated output/r.p.m |
kw |
178 |
|
|
No.of Cylinder |
6 |
||
|
Transmission |
Type |
Hydraulic |
|
|
Stage FWD/RVS |
2/2 |
||
