Product Description

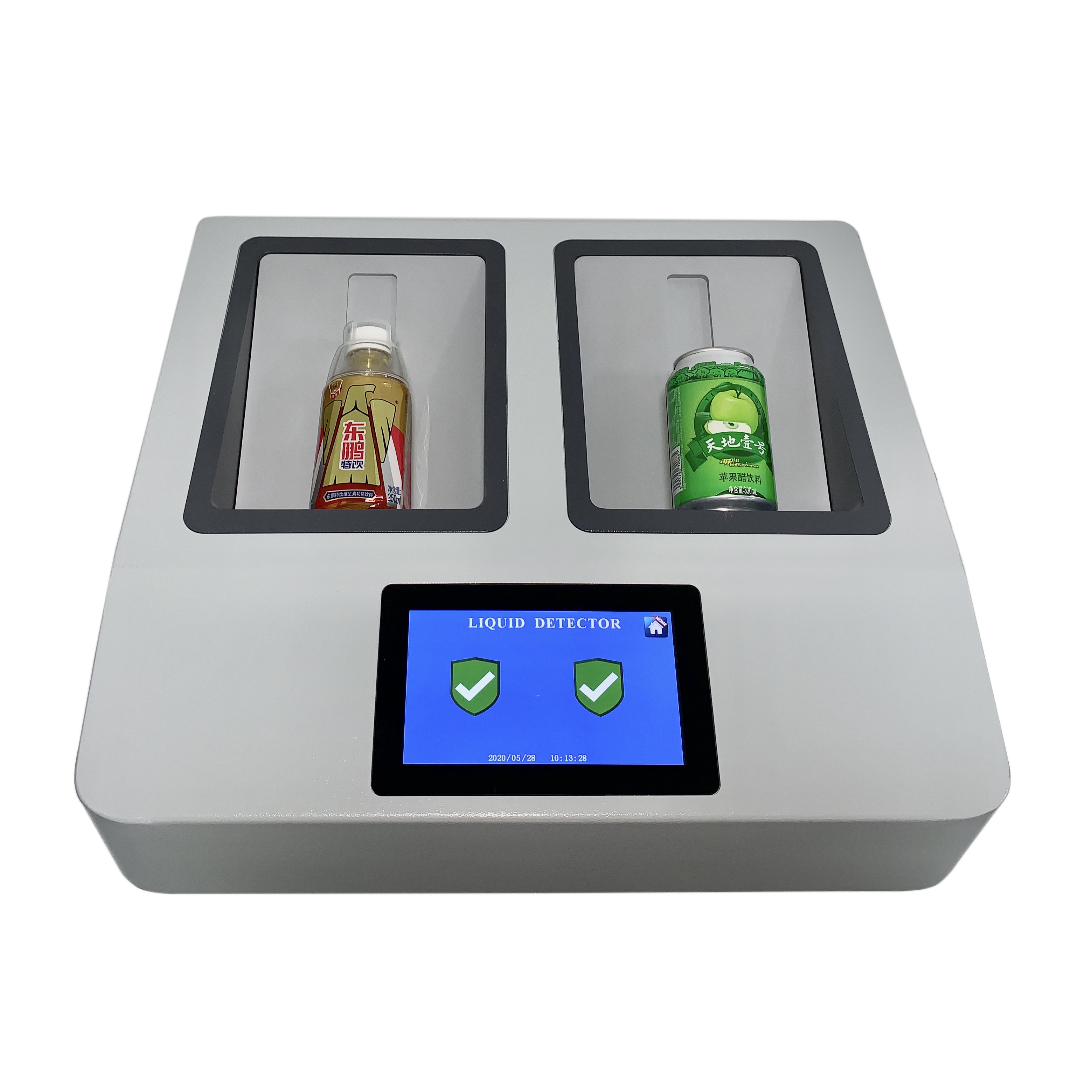

Dual channel benchtop hazardous liquid detector
JN-8000 benchtop hazardous liquid tester is the first new type of hazardous liquid tester developed and produced independently by the manufacturer in China. This technology has reached the international first-class level, and the performance of the product exceeds that of similar products of many international brands. The product can automatically detect flammable, explosive, and corrosive dangerous liquids, and effectively prevent dangerous liquid items (liquid that can cause combustion or explosion) from entering the safe area. It is a necessary safety testing facility for crowded and important activity places such as hospitals, stations, subways, government agencies, and sports venues.
Functional characteristics
★ Environmental protection technology: ultra-wideband pulse microwave reflection method and thermal conductivity method are adopted. The non-radiation setting is harmless to the human body and the inspected items, and the detection method is environmentally friendly and safe.
★ Wide detection range: This product can accurately detect sulfuric acid, and can detect more than 40 kinds of flammable and corrosive liquids including gasoline, kerosene, diesel, hydrochloric acid, nitric acid, ether and so on.
★ Detection speed: It only takes 1 second to detect non-metallic bottle liquid.
★ Detection of the side of the container: through the side of the container detection instrument, the container under test does not need to leave a lot of liquid can be detected.
★ Various alarm Settings: with sound and light, image alarm function, convenient for operators to use
Technical index
Display mode: 7 inch high definition LCD touch screen display, tempered glass panel, surface waterproof, dustproof.
Display Angle: The screen uses folding, humanized design, the operator can adjust the folding Angle, easy to operate and view, the screen folding Angle 0~90 degrees can be adjusted, any hover.
High sensitivity: Can detect low concentration alcohol (such as 52 alcohol) and gel-like liquids
Applicable liquid packaging materials: Can detect different materials such as iron, aluminum, plastic, glass and ceramic packaging liquid
Category of dangerous liquid that can be detected: flammable, explosive, and corrosive dangerous liquid
Detectable volume size: ceramic jar, glass bottle, PET plastic bottle 30mm≤ diameter ≤200mm;
Metal cans (iron, aluminum cans) diameter ≤80mm;
Metal cans/liquid content in cans ≥100ml, non-metal containers ≥100ml
Dangerous liquid display: the indicator light is red, the red danger alarm icon is accompanied by a long buzzer to remind the operator
Safety liquid display: the indicator light is a green icon and accompanied by a short alarm
Boot time: 1.0 seconds, no need to preheat
Self-check function: With self-check function, self-check time 1.0 seconds.
Automatic counting function: can automatically calculate the number of detected objects.
Authentication function: Has the authentication function.
Man-machine interface check: The man-machine interface of the device provides a full Chinese interface and has its own light source. Device users can use the touch screen device parameters according to the working environment.
The type of liquid that can be detected: The instrument can alarm the flammable or corrosive dangerous liquid in 32 kinds of sealed containers such as 93# gasoline, hydrochloric acid, sulfuric acid and petroleum ether under ordinary measurement mode and strong acid and alkali mode.
Detection time: insulated containers (plastic, glass, ceramic containers) : 1 second
Conductive containers (aluminum cans, iron cans) : less than 5 seconds
Alarm mode: sound/light alarm/LCD graphic display, turn off the alarm sound separately.
Basic parameter
|
Dimensions:
|
460mm (L) *350mm (W) * 190mm (H)
|
|
Weight:
|
≤ 12Kg
|
|
Power consumption:
|
10W
|
|
Power supply:
|
AC180-240V (50/60Hz)
|
|
Test bottle temperature:
|
5-35℃
|
|
Storage temperature/relative humidity:
|
-40℃ ~ +60℃/5% ~ 95% (no condensation)
|
|
Operating temperature/relative humidity:
|
15℃ ~ +35℃/5% ~ 95% (no condensation)
|
