Quick Details
-
Brand Name:
-
Huahong
-
Dimension(L*W*H):
-
2010*1490*2600
-
Weight:
-
10216 KG
-
Colour::
-
blue,yellow,red
-
Business Type:
-
Manufacturer
-
Installation:
-
Engineer guide
-
Design:
-
innovation
-
Visit factory:
-
supply
-
My skyepe:
-
haoheweimin6
-
Usage:
-
secondary crushing
-
Impact crusher price:
-
very competitive
-
Impact crusher quality:
-
very good
-
Hammer material:
-
high manganese steel
Quick Details
-
Application:
-
mine,building,metallurgy
-
Capacity(t/h):
-
10-20
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Huahong
-
Dimension(L*W*H):
-
2010*1490*2600
-
Weight:
-
10216 KG
-
Colour::
-
blue,yellow,red
-
Business Type:
-
Manufacturer
-
Installation:
-
Engineer guide
-
Design:
-
innovation
-
Visit factory:
-
supply
-
My skyepe:
-
haoheweimin6
-
Usage:
-
secondary crushing
-
Impact crusher price:
-
very competitive
-
Impact crusher quality:
-
very good
-
Hammer material:
-
high manganese steel
Hazemag impact crusher ,small impact crusher,mobile impact crusher
Applications of Impact crusher,stone impact crusher:
1.Deal with various ore materials (granite, limestone, basalt, etc.), whose particle size is not more
t han 500mm and the compressive resistance is not more than 350 MPa.
2.Widely used in hydropower, highways, railways, artificial gravel, construction and other ind ustries.
Working principles of impact crusher,stone impact crusher:
When the Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of the Impact Crusher.
Technical data sheet of impact crusher,stone impact crusher:
| type | certification(mm) | Feed opening (mm) | Max feeding size(mm) | production scopes(t/h) | motor power(kw) | Overall dimension(mm) | Weight(t) |
| PF-0607 | Φ-644*740 | 320*770 | 100 | 10t-20t | 30 | 2010*1490*2600 | 6.5 |
| PF-0807 | Φ-850*700 | 400*730 | 300 | 15t-30t | 30-45 | 2210*1490*2670 | 8.1 |
| PF-1007 | Φ-1000*700 | 400*730 | 300 | 30t-50t | 37-55 | 2400*1558*2660 | 9.5 |
| PF-1010 | Φ-1000*1050 | 400*1080 | 350 | 50t-80t | 55-75 | 2400*2250*2620 | 12.2 |
| PF-1210 | Φ-1250*1050 | 400*1080 | 350 | 70t-120t | 110-132 | 2690*2338*2890 | 14.9 |
| PF-1212 | Φ-1250*1250 | 400*1300 | 350 | 100t-150t | 132-160 | 2690*2668*2890 | 18 |
| PF-1214 | Φ-1250*1400 | 400*1430 | 400 | 130t-180t | 160-200 | 2690*2688*2890 | 18.6 |
| PF-1315 | Φ-1320*1500 | 860*1520 | 500 | 160t-250t | 180-260 | 3400*2870*2551 | 23.5 |
| PF-1320 | Φ-1320*1500 | 860*2030 | 500 | 300t-350t | 300-375 | 3170*3490*2400 | 27.5 |

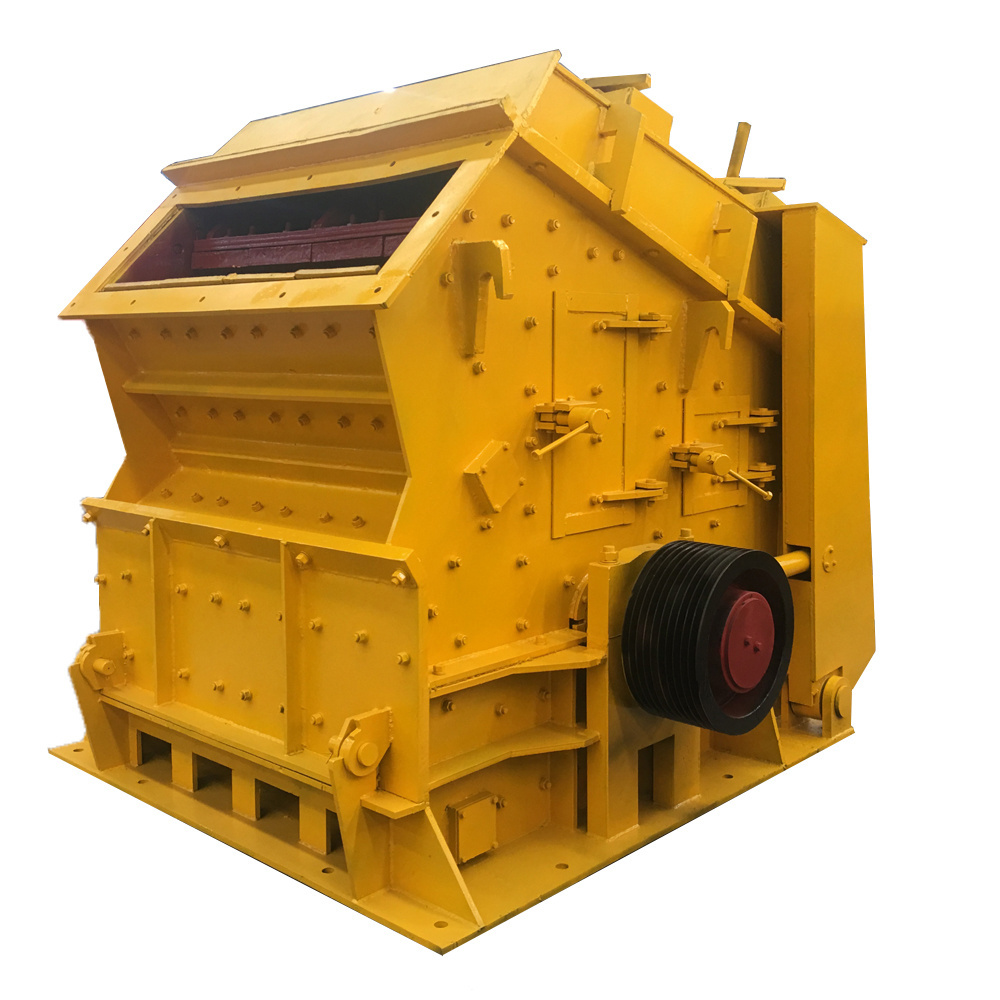

This is our product:
