Shenzhen Nodav Technology Co., Ltd. is a research and development, production, sales, export, service in one factory. Founded in 2010, the company is located in Shenzhen, the capital of science and technology in China. It is one of the few high-tech enterprises that developed, produced and exported smart sensor switch and smart induction light earlier in China. With 14 years of ODM / OEM experience, professional R & D team and 14 years of export experience, we have a number of product patents, specializing in the production and export of
Led sensor switch,led sensor light,led strip,led power supply and other products.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
2years
-
Type:
-
MIRROR TOUCH SENSOR
-
Sensing Range:
-
3-6MM
-
Voltage:
-
DC12V/24V Voutput = Vinput
-
load current:
-
3A/5A
-
Support thickness:
-
3-6mm glass/acrylic/mirror...
-
Color:
-
black
-
Product size:
-
L47XW49XT10mm
-
Application:
-
Smart makeup mirror, Bathroom Mirror light switch
-
Indicator color:
-
White when energized, blue when working
-
Certification:
-
CE FCC ROHS TUV ETL PSE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NODAV
-
Model Number:
-
NS039
-
Warranty:
-
2years
-
Type:
-
MIRROR TOUCH SENSOR
-
Sensing Range:
-
3-6MM
-
Voltage:
-
DC12V/24V Voutput = Vinput
-
load current:
-
3A/5A
-
Support thickness:
-
3-6mm glass/acrylic/mirror...
-
Color:
-
black
-
Product size:
-
L47XW49XT10mm
-
Application:
-
Smart makeup mirror, Bathroom Mirror light switch
-
Indicator color:
-
White when energized, blue when working
-
Certification:
-
CE FCC ROHS TUV ETL PSE

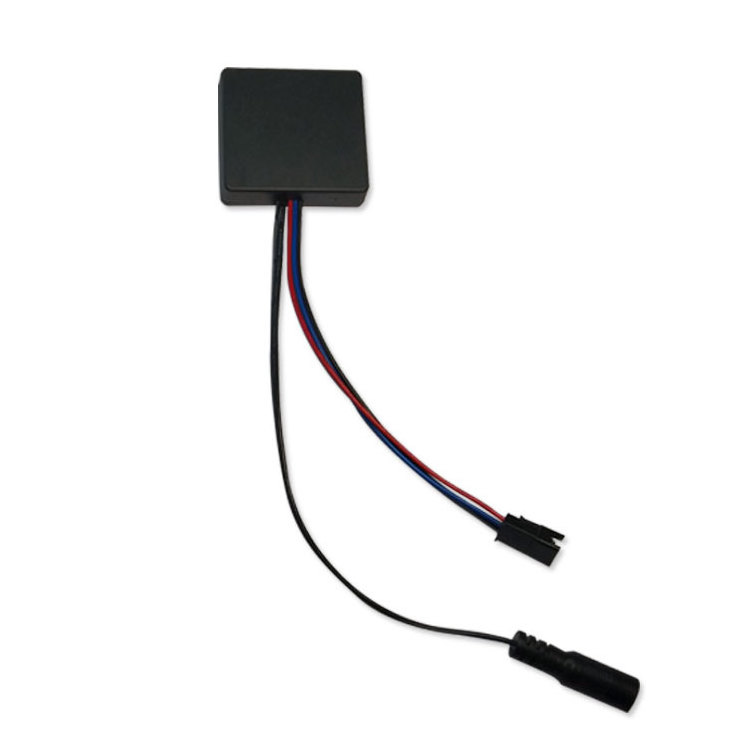

Product Description
|
Product name
|
on off +three color +stepless dimming with memory mirror touch switch
|
|
|
|
|||
|
brand
|
Nodav
|
|
|
|
|||
|
model
|
NS039
|
|
|
|
|||
|
Product size
|
L47XW49XT10mm
|
|
|
|
|||
|
Cable length
|
Input DC5521female head 200mm; Output SM-3P male head 120mm
(can be order according to your requirements)
|
|
|
|
|||
|
working voltage
|
DC12V output voltage = input voltage
|
|
|
|
|||
|
Load current
|
3A/5A
|
|
|
|
|||
|
Output Power
|
36W(12V3A)/60W(12V5A)
(other can be order according to your requirements)
|
|
|
|
|||
|
Support thickness
|
3-6mm glass/acrylic/mirror...
(
other thickness can be order according to your requirements)
|
|
|
|
|||
|
Dimming color
|
Three types: cold, warm, neutral
|
|
|
|
|||
|
Dimming mode
|
on off +three color +stepless dimming
(
on off/on off +3 steps dimming/on off +stepless dimming
can be order according to your requirements)
|
|
|
|
|||
|
Memory function
|
The second turn on can remember the brightness of the last time it was turned off
|
|
|
|
|||
|
Applicationg
|
Bathroom Mirror,Smart makeup mirror, beauty mirror, cosmetic mirror....sensor
|
|
|
|
|||
|
Processing and customization
|
1.Support processing customization.
2.Tell us your needs, we can design products to meet your needs.
|
|
|
|
|||
|
Working Mode
|
Turn on the power, the white indicator light is on, the first short press controls to turn on, the blue indicator light is on during work, long press to adjust the brightness, the second and third short presses control the light color, and the fourth short press controls off.
|
|
|
|
|||
|
Wiring Mode
|
（The connection port can be order according to your requirements）
|
|
|
|
|||
Certificate
Company Introduction
FAQ
1.Q:
What are the main products of your factory?
A:
Producation and export of
smart sensor switch, smart induction light, smart makeup mirror and other products.
2.
Q:
Where is your factory?
A:
Shenzhen, Guangdong, China.
3.
Q:
What advantages do you have?
A:
14 years of ODM / OEM experience, a number of product patents, China's early production of induction lamps, sensors of high-tech enterprises.
4.
Q:
Do you provide samples? Do you charge for samples and express delivery?
A:
Yes.
5.Q:
How do you deliver samples?
A:
By door to door express DHL, TNT, FedEx, UPS ,EMS...
6.Q:
Do you support customization?
A:
Yes，
Tell us your needs, we can design products to meet your needs.
