Quick Details
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ6-63
-
Rated Current:
-
63A
-
Poles:
-
2P/3P/4P
-
Keywords:
-
Automatic Transfer Switch
-
Temperature:
-
-5 to 45
-
Frequency:
-
50/60Hz
-
Output type:
-
Dual
-
Marerial:
-
Copper,Iron,DMC
-
Product name:
-
Auto Transfer Switch
-
Color:
-
Black
-
Warranty:
-
18 Months
Quick Details
-
Type:
-
CB
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CSQ
-
Model Number:
-
HYCQ6-63
-
Rated Current:
-
63A
-
Poles:
-
2P/3P/4P
-
Keywords:
-
Automatic Transfer Switch
-
Temperature:
-
-5 to 45
-
Frequency:
-
50/60Hz
-
Output type:
-
Dual
-
Marerial:
-
Copper,Iron,DMC
-
Product name:
-
Auto Transfer Switch
-
Color:
-
Black
-
Warranty:
-
18 Months
Products Description

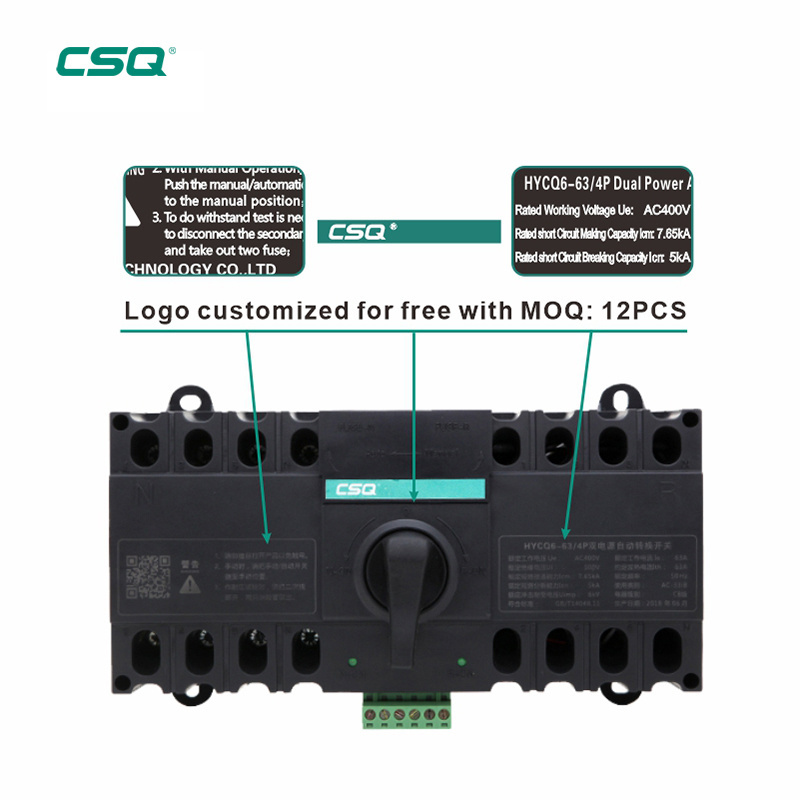

HYCQ6-63 is terminal type automatic transfer device. It’s suitable for 3 phases 4 wires (or 1 phase 1 wire) dual power grid with AC 50/60Hz, rated voltage 400V/230V and rated current up to 63A. When one power goes wrong (only test normal Phase A voltage and reserve Phase A voltage, only test loss voltage or loss phase), it will automatic connect one or several load circuits from one power to the other power automatically, to ensure normal power supply of load circuits. The automatic transfer switch conforms to IEC60947-6-1 and GB/T14048.11
Product Paramenters
|
Current
|
16A
|
20A
|
32A
|
40A
|
63A
|
||||
|
Rated insulation voltage Ui
|
690V
|
|
|
|
|
||||
|
Rated impaction withstand voltage Uimp
|
8KV
|
|
|
|
|
||||
|
Rated working voltage Ue
|
AC380V
|
|
|
|
|
||||
|
Rated working current Ie
|
16A
|
20A
|
32A
|
40A
|
63A
|
||||
|
Load character
|
AC33iB
|
|
|
|
|
||||
|
Rated making capacity
|
10Ie
|
|
|
|
|
||||
|
Rated breaking capacity
|
8Ie
|
|
|
|
|
||||
|
Rated limting short-circuit current
|
50KA
|
|
|
|
|
||||
|
Rated short time withstand current Ie
|
7KA
|
|
|
|
|
||||
|
Change-over time
|
1S
|
|
|
|
|
||||
|
Voltage of control power supply
|
AC220V
|
|
|
|
|
||||
|
Energy consumption of the motor
|
40W
|
|
|
|
|
||||
|
Weight Kg
|
3
|
3
|
3
|
3
|
3
|
||||
