Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
DF-CRM
-
Brand Name:
-
DONGFU WIRE MESH
-
Product Name:
-
Welded Concrete Reinforcing Wire Mesh
-
Surface Treatment:
-
Galvanized or No Treatment
-
Spacing Range(Mesh Size):
-
100mm, 200mm, 300mm, 400mm ,etc.
-
Standard Sheet Size:
-
4.8m x 2.4m, 6m x 2.4m, 5m x 2.15m, 6m x 2.15m
-
Manufacturing Standards:
-
British, Australia, German, French, Chinese
Quick Details
-
Material:
-
Cold Rolled Ribbed Steel Bar
-
Type:
-
Welded Wire Mesh
-
Application:
-
Construction
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
DF-CRM
-
Brand Name:
-
DONGFU WIRE MESH
-
Product Name:
-
Welded Concrete Reinforcing Wire Mesh
-
Surface Treatment:
-
Galvanized or No Treatment
-
Spacing Range(Mesh Size):
-
100mm, 200mm, 300mm, 400mm ,etc.
-
Standard Sheet Size:
-
4.8m x 2.4m, 6m x 2.4m, 5m x 2.15m, 6m x 2.15m
-
Manufacturing Standards:
-
British, Australia, German, French, Chinese

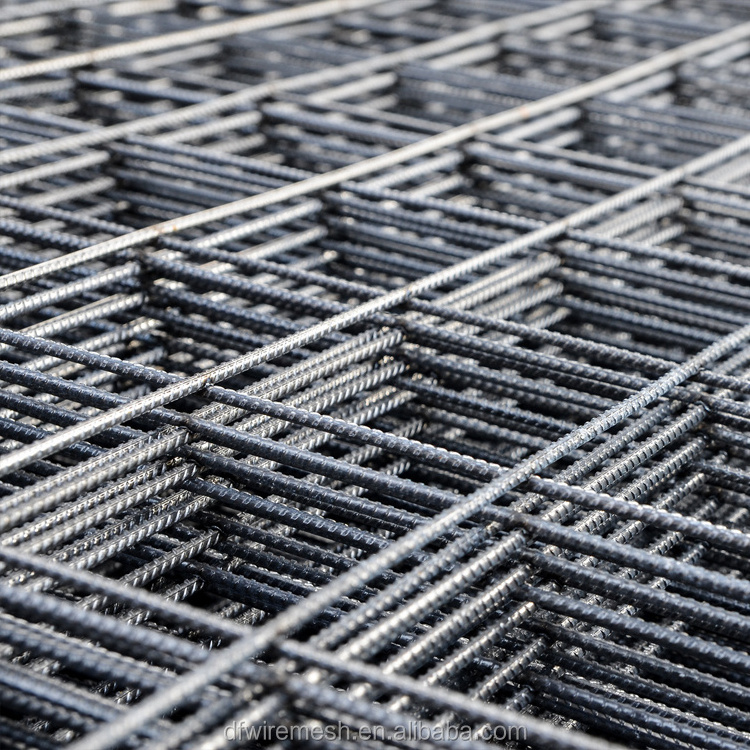

Welded Concrete Reinforcing Wire Mesh
Concrete reinforcing mesh is a kind of welded wire fabric, so it's also called reinforcing welded mesh. It's made of carbon steel or stainless steel, including rectangular reinforcing mesh, square reinforcing mesh, and trench mesh. With high strength and firm structure, the concrete reinforcing mesh can greatly improve the bonding to concrete and minimize the concrete cracking. It's extensively used for reinforcement of building foundations, road surfaces, and bridge decks. Besides, the reinforcing bar supports and tie wires are also important and necessary to secure the reinforcing mesh in the concrete structures.
The main material of Concrete Reinforcing Mesh is cold rolled ribbed steel bar.
| Specifications and Technical Indicators | ||||
| Rebar level | Specifications | Tensile Strength (N/mm²) | Elongation (δ10, δ100) | Cold Bend 180 (D = Bending core diameter) |
| CRB550 | φR4mm - φR12mm | ≥550 | ≥8 | D = 3d |
| CRB650 | φR5mm | ≥650 | ≥4 | D = 4d |
| CRB800 | φR5mm | ≥800 | ≥4 | D = 5d |
Types of Reinforcing Mesh
Reinforcing Mesh Manufacturing Standards
Reinforced welded mesh is mainly distinguished according to the chemical composition, tensile strength, yield strength, elongation requirements, and mesh wire diameter requirements of the steel materials implemented in this country. Each country has its own standards, labels, and numbers.
The concrete reinforcement mesh we provide is produced in accordance with the standards of various countries. Including:
1. British Standard Mesh Fabric Size Comply With BS 4483:2005:
2. Australia/New Zeland Fabric Standard Comply With AS/NZS 4671: 2001:
3. German Standard Sheet Size (DIN 488):
4. French Fabric Standard Sheet Size (NFA 35-016):
5. Chinese Standard Sheet Size (GB / T1499.3-2010):
For more specifications and high-definition PDF Documents, please contact us.
