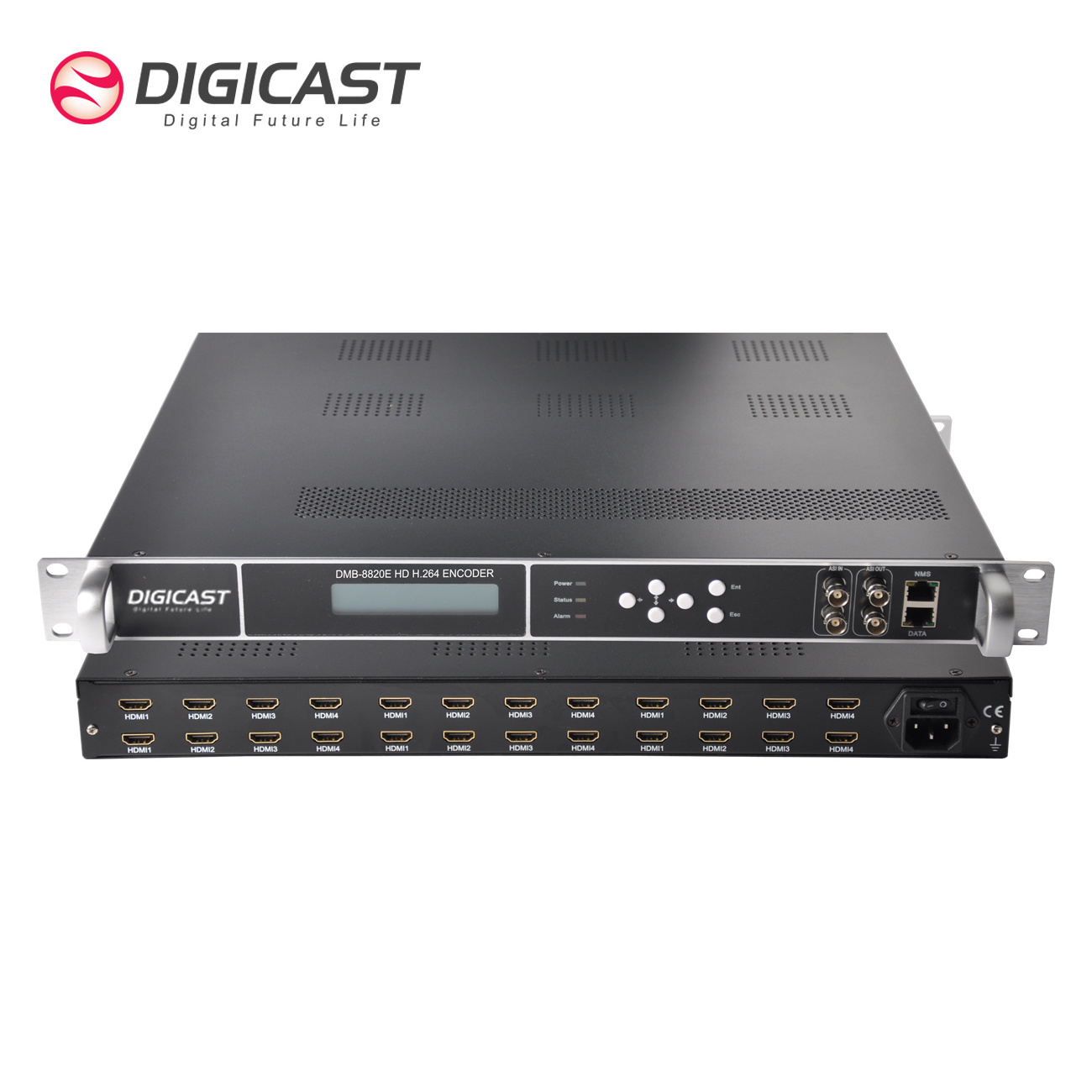

Multi Channels Cable TV HD MPEG-4 AVC H.264 HD Encoder For Up To 24 Channels HDMI Input And Output ASI IP

Multi Channels Cable TV HD MPEG-4 AVC H.264 HD Encoder For Up To 24 Channels HDMI Input And Output ASI IP

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Nature:: HD H.264 Encoder

Input interface:: 4/8/12/16/20/24*HDMI+2*(one is for backup)

Output:: 2*ASI+IP (SPTS/MPTS)

Video encoding:: MPEG4 AVC/H.264

Audio encoding:: MPEG-1 Layer 2,AAC

Certification:: ROHS,CE

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: DIGICAST

Model Number:: DMB-8820E

Nature:: HD H.264 Encoder

Input interface:: 4/8/12/16/20/24*HDMI+2*(one is for backup)

Output:: 2*ASI+IP (SPTS/MPTS)

Video encoding:: MPEG4 AVC/H.264

Audio encoding:: MPEG-1 Layer 2,AAC

Certification:: ROHS,CE

Product Description

Video Encoding	Video compression: H.264/AVC Video inputs: 4/8/12/16/24*HDMI The Input Resolution: 1920x1080@60P, 1920x1080@60i,1920x1080@50P, 1920x1080@50i, 1280x720@60P, 1280x720@50P ,720x576@50i, 720x480@60i The Output Resolution: 1920×1080@30P, 1920×1080@25P,1280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Encoding: MPEG-4 AVC/H.264 Bit-rate : 1Mbps~13Mbps Rate Control : CBR,VBR GOP Structure : IPPPP (P Frame adjustment, without B Frame )
Audio Encoding	Encoding : MPEG-1 Layer 2,AAC Resolution : 24-bit Audio Gain : 0-255 Bit-rate: 64kbps, 128Kbps, 192kbps, 224kbps, 256kbps, 320kbps, 384kbps Sampling rate : 48KHz
ASI Input	Connector BNC: female, 75Ω Packet Length: 188 bytes Number of Input Ports : Dual separate ASI ports Signal Level : 200-800mVp-p Maximum bit-rate per port : ≤100Mbps
ASI Output	DVB-ASI 2 Separate ASI (Select from modulation Channels or MPTS channel) MPEG-2 TS over DVB-ASI (EN 50083-9) 75Ω, BNC, 188Bytes
IP Output	RJ45 Port 100/1000M GbE Port Simultaneous output with 4/8/12/16/20/24 SPTS and 1MPTS ,UDP/RTP Filter Null Packet Total Bitrate 1-200Mbps, (Should be More than Encoding bitrate) MPEG-2 TS over UDP/RTP, unicast, and multicast streaming Configurable packet size: (2-7)x188Bytes
Multiplexing Spe.	Maximum PID Remapping 180 input per channel PID remapping by automatically or manually Accurate PCR adjusting PSI/SI SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert
Gerneral Option	Interface: 1*RJ-45,100/1000M Base-T network interface Local operation: keyboard on front panel, LCD display Remote control: web-based management/NMS
Physical and Power	Voltage: 100 to 120/200 to 240V AC ±10%; 50/60Hz Consumption: 60W Operating temperature: 0 ~ 45℃ Storage temperature: -20 ~ 80℃ Relative humidity: 10%~90%(non-condensing) Dimensions: 482mm(W)×380(D)mm×45mm(H)(19inch,1RU) Weight: 6 KGS

Main Features

* 2* ASI and IP (UDP/RTP/RTSP) output

* Input interface: 4/8/12/16/24 Channel HDMI, 4 HDMI ports per module
Up to 6 Modules in Back panel
* Built-in PCR capability
* Support multiplexing with external 1*ASI in

* Providing PSI/SI compilation and NIT, LCN insertion

Application & Diagram

Praise From Customers

About Us

Product Line

Certifications

FAQ

1.Can you provide OEM service as per our request? Is it free?
With our professional & experienced design team, we can provide OEM service by replacing your company logo on chassis, software interface as well as carton.

2.What about your Warranty?
We provide new free spare parts in 5 years because of the product quality problems, except for man-made damage.

3.About the shipping way?
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such as FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.

4.Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as Teamviewer,anydesk whatsapp etc.

5.How does your factory do regarding quality control
Quality is very important and always be put at the first place,Every product will be tested before it is shipped to ensure that
every device is delivered to you with high quality

6.Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.

7.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.

OEM/ODM is available
