Quick Details
-
Brand Name:
-
TOWEI
-
Model Number:
-
B3400-24H
-
Max. Current:
-
13A/ 10(3)A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
Fan speed regulator switch
-
Position:
-
4
-
Function:
-
OFF, L-2, L-1-2, L-1-2-3
-
Temperature:
-
125℃
-
Certification:
-
CQC, TUV, CB, CUL, ROHS, CQC, TUV, CB, CUL, ROHS
-
Service:
-
OEM/ODM
-
Suitable:
-
Heater, Cooker, Oven, Fan, etc.
-
Mounting type:
-
Screw
-
Terminal:
-
Brass
-
Material:
-
Plastic+Metal
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
120V AC/ 250V AC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TOWEI
-
Model Number:
-
B3400-24H
-
Max. Current:
-
13A/ 10(3)A
-
Mechanical Life:
-
10000 Cycles
-
Product Name:
-
Fan speed regulator switch
-
Position:
-
4
-
Function:
-
OFF, L-2, L-1-2, L-1-2-3
-
Temperature:
-
125℃
-
Certification:
-
CQC, TUV, CB, CUL, ROHS, CQC, TUV, CB, CUL, ROHS
-
Service:
-
OEM/ODM
-
Suitable:
-
Heater, Cooker, Oven, Fan, etc.
-
Mounting type:
-
Screw
-
Terminal:
-
Brass
-
Material:
-
Plastic+Metal

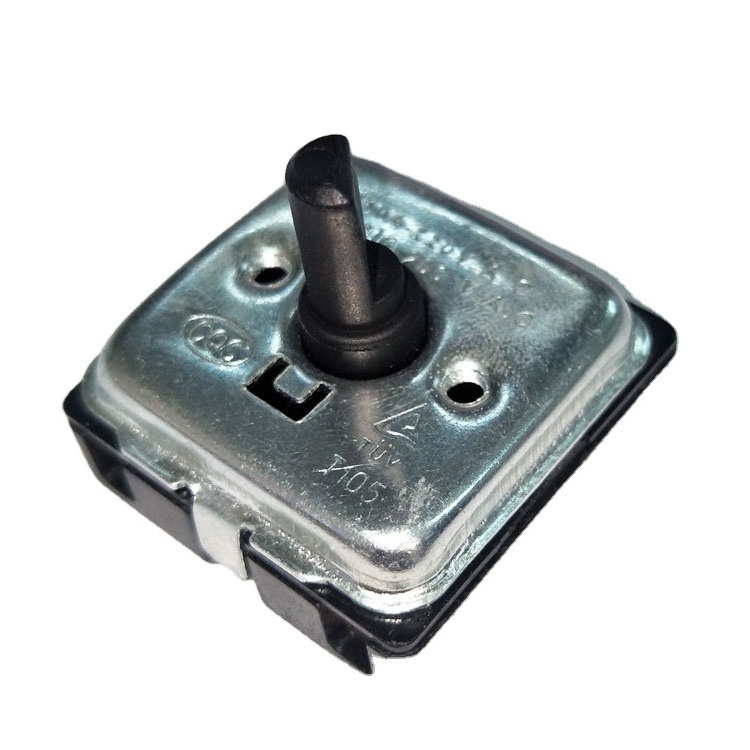

Tuowei Item B3400-24H Powerful withstand heating 4 Position 3 Speed Rotary switch Item No.: B3400-24H
|
Technical Parameter |
|
|
Electrical Rating |
13A-120V AC, 10(3)A-250V |
|
Function |
OFF, L-2, L-1-2, L-1-2-3 |
|
Position |
4 |
|
Rotary Angle |
22. 5° |
|
HZ |
60/50 |
| Load | Res/ Mot |
| Temp(C) | 105°C |
| Pol/Thr | 1/2 or M |
| PP/Circuit | --/A |
| Endur | 10K |
| SPCOA | 22-14AWG UL1015 |
|
Material: |
|
| Cover: Zinc plating Iron | |
| Insulating piece: PF Grade: pfcp207(XPC) | |
| Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Brass | |
| Base: Bakelite Flame rating: V0 Temperature: 130°C Grade: Dupont | |
| Apply to: | |
| Electric Heater, Warm fan, blower, humidifier, massage equipment, juicer, electric ovens, electric cookers, heaters and other home appliances. | |
B3400 series have many different function circuits as below:
| NO. | Position 1 | Position 2 | Position 3 | Position 4 | Position 5 |
|
1 |
L-1 | L-2 | L-3 | ||
| 2 | OFF | L-1 | L-2 | L-3 | |
| 3 | OFF | L-1 |
L-2 |
L-3 | OFF |
| 4 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 5 | OFF | L-2 |
L-1-2 |
||
| 6 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 7 | OFF | L-1 | L-1-2 | ||
| 8 | OFF | L-1-3 | L-1-2 | L-1-2-3 | |
| 13 | OFF | L-1 | L-2 | ||
| 15 | OFF | L-2 | L-3 | L-2-3 | |
| 24 | OFF | L-1 | L-2 | L-1-3 | L-2-3 |
| 28 | OFF | L-2 | L-2-3 | ||
| 29 | OFF | L-2 | L-1-2 | L-2-3 | L-1-2-3 |
| 47 | OFF | L-1-3 | L-1-2 | ||
| 67 | L-2 | L-3 |
