Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QIKE
-
Model Number:
-
MIL1-19
-
Wire Gauge:
-
3.0MM-5.0MM
Quick Details
-
Material:
-
Galvanized Iron Wire
-
Type:
-
Welded Mesh
-
Application:
-
Border Protection
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
QIKE
-
Model Number:
-
MIL1-19
-
Wire Gauge:
-
3.0MM-5.0MM
Products Description

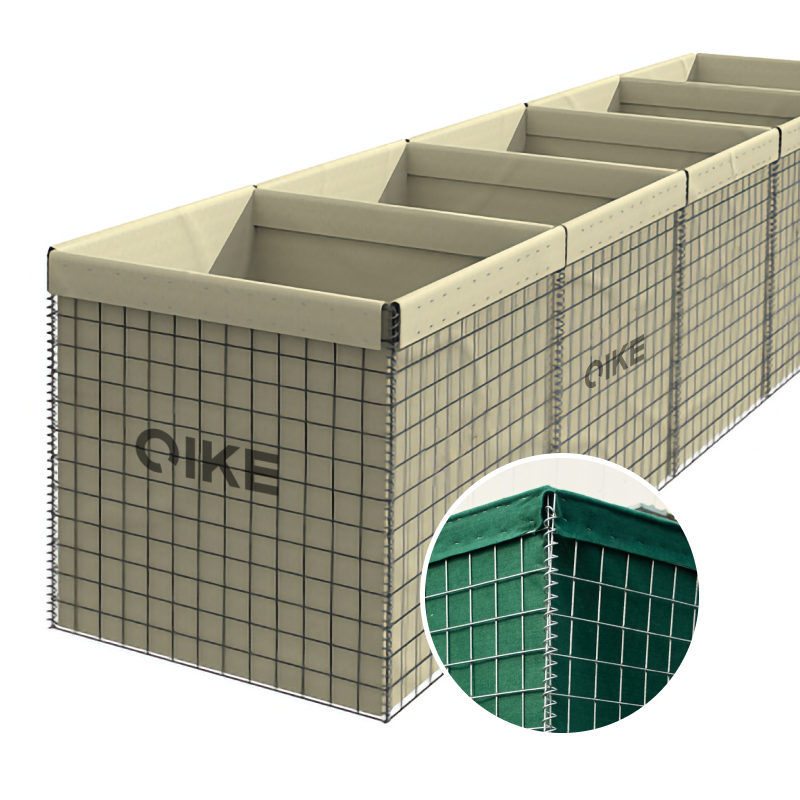

Qike Hesko barriers is a modern gabion primarily used for flood control and military fortifications. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against small-arms fire, explosives and flood control.
Beige and Green Colors
Beige color
Green color
Standard Sizes & Specifications
|
Standard Sizes ( including Recoverable or Standard model)
|
|
|
|
|
||||
|
MODEL
|
HEIGHT
|
WIDTH
|
LENGTH
|
NUMBER OF CELLS
|
||||
|
MIL1
|
54" (1.37m)
|
42" (1.06m)
|
32'9" (10m)
|
5+4=9 CELLS
|
||||
|
MIL2
|
24" (0.61m)
|
24" (0.61m)
|
4' (1.22m)
|
2 CELLS
|
||||
|
MIL3
|
39" (1.00m)
|
39" (1.00m)
|
32'9" (10m)
|
5+5=10 CELLS
|
||||
|
MIL4
|
39" (1.00m)
|
60" (1.52m)
|
32'9" (10m)
|
5+5=10 CELLS
|
||||
|
MIL5
|
24" (0.61M)
|
24" (0.61M)
|
10' (3.05m)
|
5 CELLS
|
||||
|
MIL6
|
66" (1.68m)
|
24" (0.61m)
|
10' (3.05m)
|
5 CELLS
|
||||
|
MIL7
|
87" (2.21m)
|
84" (2.13m)
|
91' (27.74m)
|
5+4+4=13 CELLS
|
||||
|
MIL8
|
54" (1.37m)
|
48" (1.22m)
|
32'9" (10m)
|
5+4=9 CELLS
|
||||
|
MIL9
|
39"(1.00m)
|
30" (0.76m)
|
30' (9.14m)
|
6+6=12 CELLS
|
||||
|
MIL10
|
87" (2.21m)
|
60" (1.52m)
|
100' (30.50m)
|
5+5+5+5=20 CELLS
|
||||
|
MIL11
|
48" (1.22m)
|
12" (0.30m)
|
4' (1.22m)
|
2 CELLS
|
||||
|
MIL12
|
84" (2.13m)
|
42" (1.06m)
|
108' (33m)
|
5+5+5+5+5+5=30 CELLS
|
||||
|
MIL19
|
108" (2.74m)
|
42" (1.06m)
|
10'5" (3.18m)
|
6 CELLS
|
||||
|
Customizable
, We also provide customized solutions for you.
|
|
|
|
|
||||
The Recoverable MIL
units are deployed in exactly the same way as the standard MIL products. Once the mission is over, efficient recovery for disposal can begin. To recover the units for disposal simply open the cell by removing the pin, this allows the fill material to flow freely from the cell. The units can then be recovered fully intact and flat packed for transportation for recycling or disposal, providing substantial reduction in logistical and environmental impact.
|
Material & surface treatment:
|
Galvanized steel wire or Galfan / zinc-5%aluminum wire
|
|
|
|
|||
|
Wire diameter:
|
4.0mm/5.0mm
|
|
|
|
|||
|
Aperture:
|
76.2*76.2mm
|
|
|
|
|||
|
Non-woven geotextile
|
300g/m2, 400g/m2
|
|
|
|
|||
|
color:
|
Beige/green (can be customized)
|
|
|
|
|||
Our Factory
Easy to install
1. Unpack the collapsible wire mesh container from package.
2. Unfold the barrier and connect barriers to reach the designed length
3. Fill soil, sand or gravel into the container. The common machine is front end loader.
4. Compact the content
5. Add layers if required.
2. Unfold the barrier and connect barriers to reach the designed length
3. Fill soil, sand or gravel into the container. The common machine is front end loader.
4. Compact the content
5. Add layers if required.
