Quick Details
-
Weight (KG):
-
450
-
Voltage:
-
AC380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinyu
-
Dimension(L*W*H):
-
250cm*150cm*270cm
-
Product name:
-
Automatic powder filling machine
-
Machine filling range:
-
15-50Kg(Adjustable)
-
Power supply:
-
1.85kW, AC380V 50Hz
-
pneumatic power supply:
-
0.6-0.8MPa
-
Filling weight error:
-
Less than 0.3%
-
Filling capacity:
-
5-10bags*25kg/min
-
Machine weight::
-
450Kg
-
Product Size:
-
250cm*150cm*270cm
-
Carton size:
-
2.3m*1.4m*1.3m
-
Usage:
-
Pack Powder
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Laminating, Sealing
-
Packaging Type:
-
Stand-up Pouch, Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
450
-
Voltage:
-
AC380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xinyu
-
Dimension(L*W*H):
-
250cm*150cm*270cm
-
Product name:
-
Automatic powder filling machine
-
Machine filling range:
-
15-50Kg(Adjustable)
-
Power supply:
-
1.85kW, AC380V 50Hz
-
pneumatic power supply:
-
0.6-0.8MPa
-
Filling weight error:
-
Less than 0.3%
-
Filling capacity:
-
5-10bags*25kg/min
-
Machine weight::
-
450Kg
-
Product Size:
-
250cm*150cm*270cm
-
Carton size:
-
2.3m*1.4m*1.3m
-
Usage:
-
Pack Powder

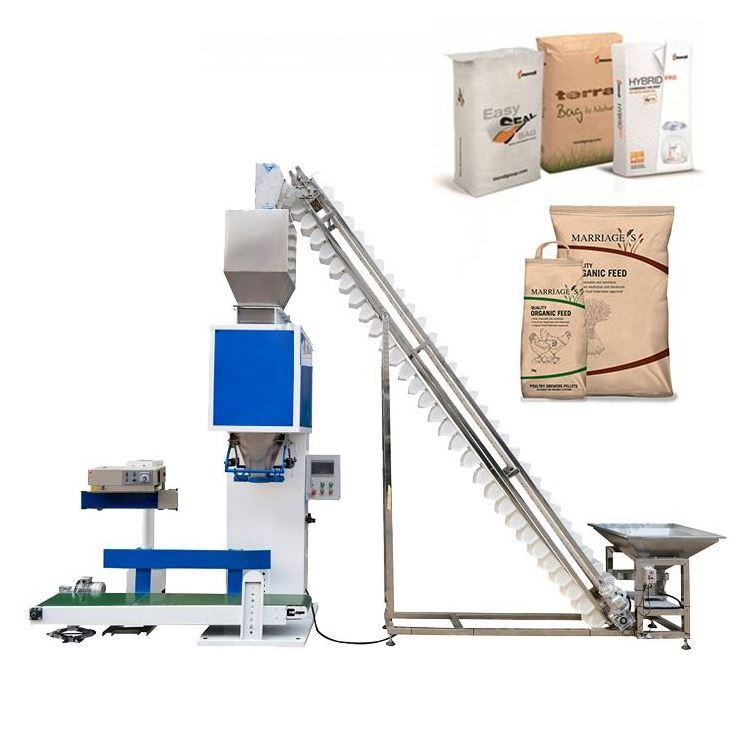

5-50KG Rice Bag Filling Packing Machine with Conveyor Sewing Machine
Product Description
This packing machine suit for weighing filling bagging into open mouth bags then closed by sewing.
The weight from 10 kg-70 kg are available. packing range 120-180 bags/hour, 240-360 bags/hour and 400-500 bags/hour.
The bag can be closed by heat sealing for lining/plastic bags and sewing(thread stitching) for woven bags, paper bags, kraft bags.
|
Model
|
TH-PM-P-50
|
TH-PM-G-50
|
|
|
packing product
|
Mixed materials, powder irregular materials, such as organic fertilizer, feed, river sand, grain, chemical industry, metallurgy, refractory materials, rubber and other irregular materials with poor fluidity and a certain amount of moisture, etc.
|
Particles with good fluidity, such as compound fertilizers, blended fertilizers, organic fertilizer granules, urea, rubber
granules, plastic granules, biomass granules, feed, BB fertilizer, grain, seeds, chemicals, etc. |
|
|
Material
|
①Contact material stainless steel (food industry)
②Carbon steel (non-food industry) |
|
|
|
Filling capacity
|
15-100kg
|
|
|
|
Filling speed
|
5-10bags/min
|
5-10bags/min
|
|
|
Filling weight accuracy
|
≥99.5%
|
≥99.5%
|
|
|
Power supply
|
2.5kw, AC380V, 50Hz
|
1.5kw, AC380V, 50Hz
|
|
|
Machine weight
|
500kg
|
500kg
|
|
Product features:
1. Gravity feeding mechanism, spiral feeding mechanism, belt feeding mechanism are optional, suitable for quantitative weighing and packaging of different materials
2. Three-level feeding speed, fast speed and high precision
3. Install 3pcs load cells, with high accuracy and strong stability
4. PLC system and touch screen interface make the operation easier
5. Proximity switch induction bag clamping, automatic detection, no hand clamping, safer operation
6. Fully automatic sewing bag, fast speed, beautiful stitching
Application
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Details Images
Final Product display
