Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINDA
-
Display Format:
-
128x32 dots
-
Interface:
-
IIC
-
IC or Equivalent:
-
SSD1306
-
Connection:
-
FPC
-
Outline Dimension:
-
30.00(W)x11.50(H)x1.30(T)mm
-
Visual Area:
-
24.384x7.584mm
-
Active Area:
-
22.384x5.584mm
-
Dot (Pixel) Size:
-
0.159x0.159mm
-
Dot (Pixel) Pitch:
-
0.175x0.175mm
-
Power Supply:
-
3.0V
Quick Details
-
Type:
-
OLED
-
Display Size:
-
0.91"
-
Supplier Type:
-
Distribution and Manufacturer
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SINDA
-
Display Format:
-
128x32 dots
-
Interface:
-
IIC
-
IC or Equivalent:
-
SSD1306
-
Connection:
-
FPC
-
Outline Dimension:
-
30.00(W)x11.50(H)x1.30(T)mm
-
Visual Area:
-
24.384x7.584mm
-
Active Area:
-
22.384x5.584mm
-
Dot (Pixel) Size:
-
0.159x0.159mm
-
Dot (Pixel) Pitch:
-
0.175x0.175mm
-
Power Supply:
-
3.0V

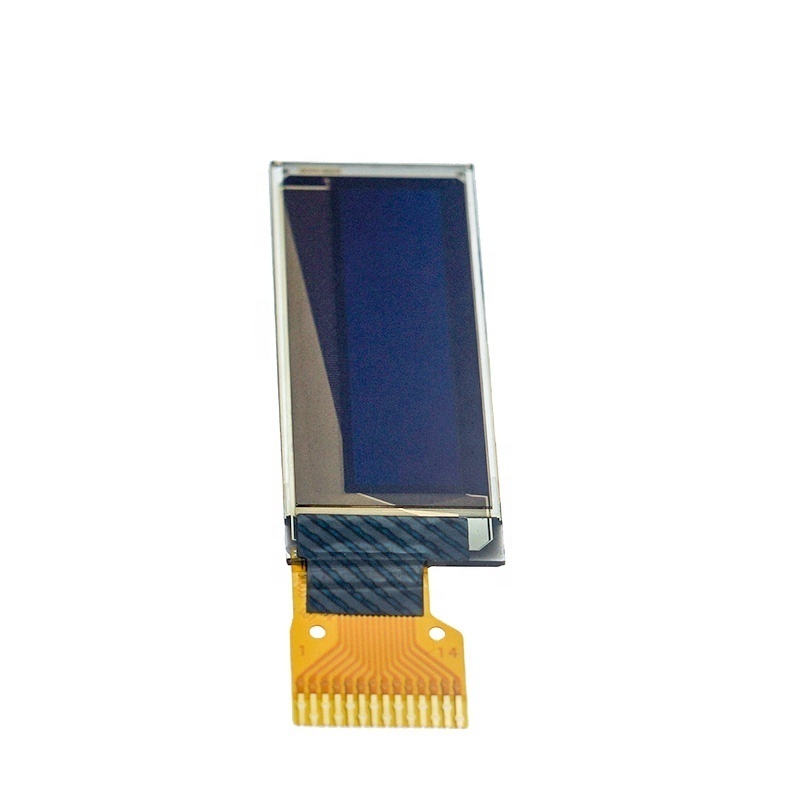

Sinda 0.91 inch 128x32 Small OLED display for smart watch
Details:
| Manufacturer | SINDA | Model No. | SDO12832-01 |
| Outline dimension | 30.00(W)x11.50(H)x1.30(T)mm | Display Type | OLED |
| Interface | IIC | Drive IC | SSD1306 |
| Storage Temperature | -45℃~85℃ | Operating Temperature | -40℃~80℃ |
1. Q: How can I get the samples? Standard sample and Custom.
A: Custom sample : Send i nquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect
2 .Q: How long can I expect to get the sample?
A: Standard sample: 3 work days after confirming the order.
Custom sample: according to the draw base on 5-20 days
3 .Q: Can you design the LCD in accordance with our demand?
A: Yes, .We will give you the best tooling charge.
4. Q : . What is the warranty?
A: 2 years Warranty
5 .Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if you have any in China.
