Quick Details
-
Dimension(L*W*H):
-
120x80x175 cm
-
Weight (KG):
-
500
-
Application:
-
wheel grinding machine
-
table diameter:
-
450mm
-
repairing flywheel:
-
500mm
-
Max. Grinding Diameter:
-
500mm
-
Power:
-
3000
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
tokmc
-
Voltage:
-
400V 380V 220V
-
Dimension(L*W*H):
-
120x80x175 cm
-
Weight (KG):
-
500
-
Application:
-
wheel grinding machine
-
table diameter:
-
450mm
-
repairing flywheel:
-
500mm
-
Max. Grinding Diameter:
-
500mm
-
Power:
-
3000
Product Description

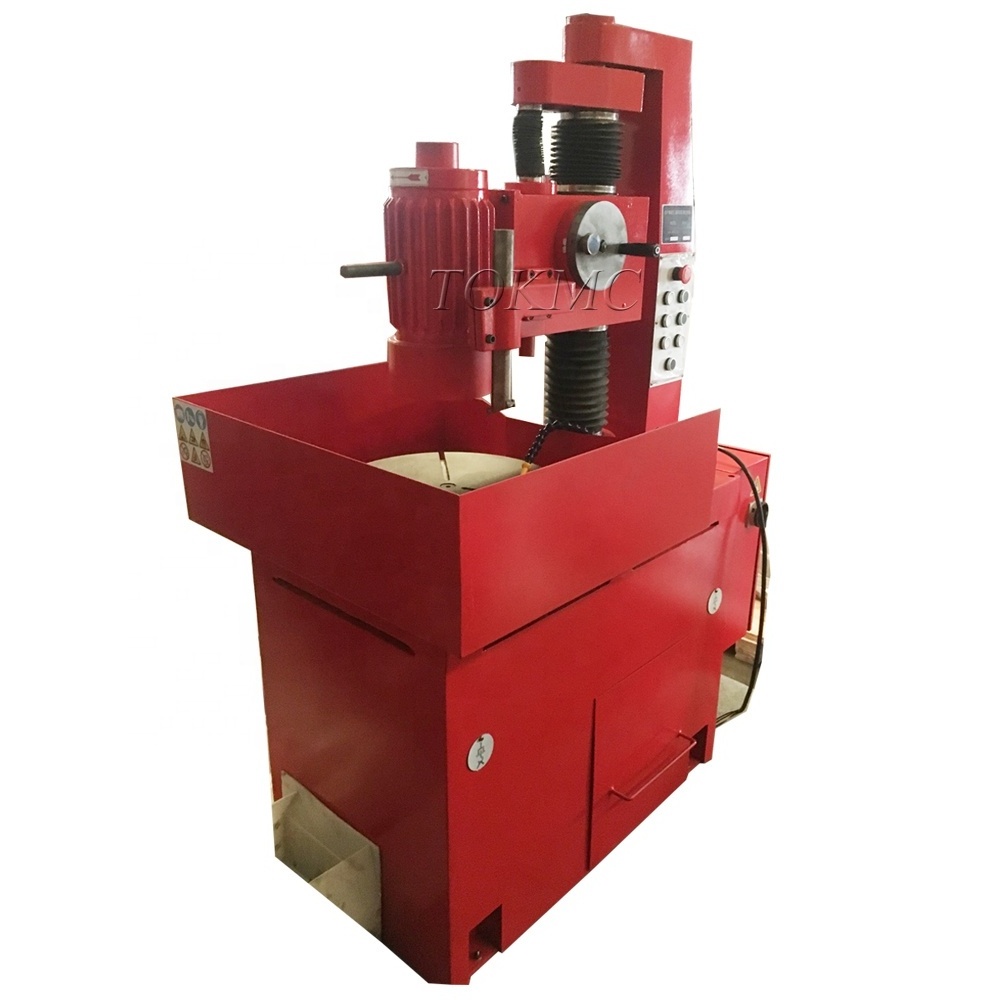

FG500 fly wheel grinding machine is mainly used for regrinding the automobile engine flywheel disk and clutch friction plate in repair units and network points to carry out automobile maintenance & repair service.
Specification
|
Model
|
FG500
|
|
Table Diameter
|
450mm
|
|
The Max diameter of repairing Flywheel
|
500 mm
|
|
The Max Distance from spindle to table
|
200mm
|
|
Rotational Speed of Grinding wheel
|
2800r/min
|
|
The rotational speed of table
|
17/34r/min
|
|
The motor of grinding wheel
|
3 kw/400V/50HZ
|
|
The motor of table
|
1400/700r/min 0.4/0.22KW/400V/50HZ
|
|
Cooling pump
|
0.12KW
|
|
Overall dimensions
|
1200X800X1750(mm)
|
