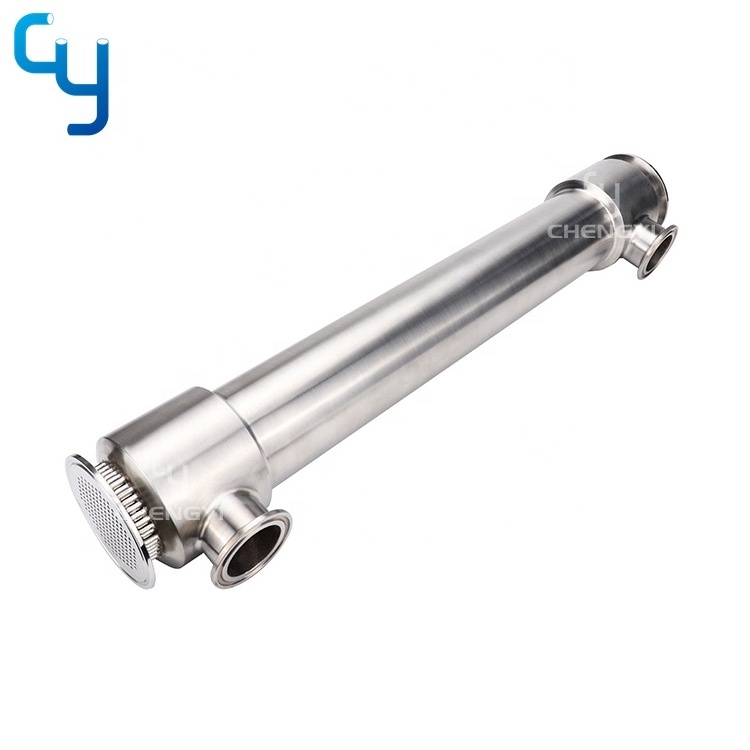

Stainless steel sanitary shell and tube heat exchanger for WFI cooling

Product description

Sanitary Shell & tube heat exchanger, designed for high cleanliness requirements, meets the high cleanliness requirements of the pharmaceutical industry, usually used in injection water point cooling, modular integration, process cooling or heating, etc.

Working principle

The material flows inside tube, the cold and hot medium flows inside shell, and the material and the cold and hot medium carry on the high efficiency heat exchange through the compact arrangement tube bundle to meet the technological temperature requirement.

Because the heat exchanger ad opts the double tube plate /Shell & Tube  design , the bidirectional cross-contamination between the material and the cold and hot medium is completely eliminated.

Product performance and characteristics

Contacted material: stainless steel 316 L

Internal surface finish: Ra<0.5μm

Simple structure, high heat transfer rate, easy to use

Dual-tube design to prevent leakage of service media to products

Meeting cGMP requirements

Standard design and maintenance-free

Customized upon request

Connection mode:  tube side: TC Connection    shell side: TC connection or internal thread

Applications

Heating of Purified water when pasteur disinfection

Cooling of terminal water points for injection water

Condensation and cooling of pure steam

Temperature control of CIP cleaning fluid

Heating and cooling of liquid material in process production

For more information or any question, please feel freely to contact with us here!

Characteristics

Small volume, high heat transfer efficiency.

The structure of the tube bundle is compact, the tube wall is thin, and the heat transfer coefficient is large. At the same time, the tube bundle can exchange heat evenly to the maximum extent and avoid the uneven heat transfer phenomenon of the rough tube bundle.

Sanitary TC connection, there is no unhygienic connection structure.

Simple straight pipe structure, no dead angle, no retention, can be completely emptied.

Double tube plate / shell & tube structure can completely avoid cross-contamination between tube side and shell side have higher safety.

Small size advantage

1. Energy consumption : aseptic heat exchanger heat transfer coefficient is large, and are installed on the injection water point, single point heat transfer, energy consumption is very low.

2. Installation: small size, light weight, TC connection, easy to disassemble and install. It can also reduce the cost of installation and subsequent maintenance.

3. Safety production: directly installed in the clean room use point, if there is leakage, can be found immediately; in addition, single point cooling, do not affect the WFI of the main circulation pipeline, can minimize harm, reduce production costs.

4. Cleaning: CIP, disassembly off-line cleaning is also very convenient.

For more information or any question, please feel freely to contact with us here!

Q: What is the delivery time?
A: We have strong stock of standard products, generally delivery time within 3-10 days.

Non-standard products or big quantity will take 7-30days depend on quantity.
Q: How long is the guarantee?
A: We promise guarantee as one year for non-human damage factor.
Q: What is the MOQ?
A: 1 set
Q: Can you do OEM & ODM?
A: Yes
Q: Where is your nearest port?
A: Ningbo/Shanghai Port
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Wenzhou City, China.You can fly to Wenzhou Yongqiang airport directly.

Q: Why do you choose us?

We have wide range stock of stainless steel products.
We have experienced technical people, labor worksers. High effective sales team. Some of us had been in this industry for more than 17 years.

Mass production capacity ensure on time deivery.
One year warranty; perfect after-sales service for spare parts
Best prices with good quality and reliable performance
Easy maintenance.
Our logo or OEM
