Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZhongYou
-
Dimension(L*W*H):
-
2365*2200*1920mm
-
Weight (KG):
-
750 KG
-
Cooling Capacity:
-
7 Tons, 27.6 KW (237000 Kcal)
-
Heating Capacity:
-
33.6 KW (289000 Kcal)
-
Temperature Range:
-
18 ~32℃, ±2.0℃
-
Energy Regulation:
-
0,100
-
External Static Pressure:
-
≥250 Pa
-
Refrigerant:
-
R22
-
Compressor Type/Quantity:
-
Full Sealed Scroll Type / 1 Unit
-
Evaporator:
-
Copper Tube with Aluminum Fin
-
Condensing Fans/Quantity:
-
Low Noise Axial Flow Type / 2 Units
-
Air Filter:
-
Plate Type Primary Filter
Quick Details
-
Type:
-

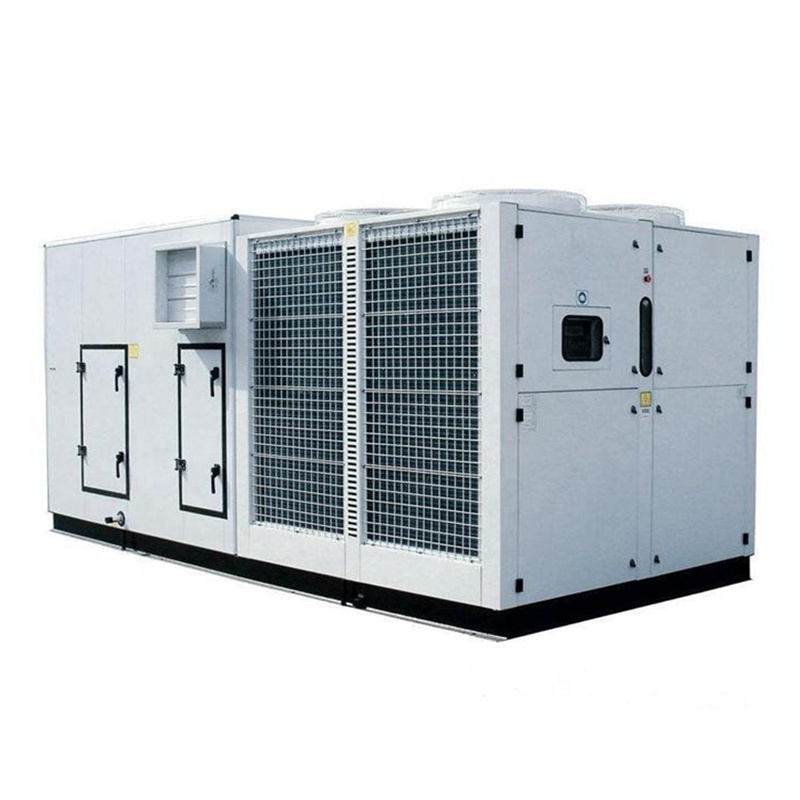

Rooftop Packaged Unit
-
Mounting:
-
Rooftop
-
Airflow:
-
6000 m³/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZhongYou
-
Dimension(L*W*H):
-
2365*2200*1920mm
-
Weight (KG):
-
750 KG
-
Cooling Capacity:
-
7 Tons, 27.6 KW (237000 Kcal)
-
Heating Capacity:
-
33.6 KW (289000 Kcal)
-
Temperature Range:
-
18 ~32℃, ±2.0℃
-
Energy Regulation:
-
0,100
-
External Static Pressure:
-
≥250 Pa
-
Refrigerant:
-
R22
-
Compressor Type/Quantity:
-
Full Sealed Scroll Type / 1 Unit
-
Evaporator:
-
Copper Tube with Aluminum Fin
-
Condensing Fans/Quantity:
-
Low Noise Axial Flow Type / 2 Units
-
Air Filter:
-
Plate Type Primary Filter
|
Date Sheet
|
|
|
|
|
||||
|
Item No.
|
|
|
|
WKRF028
|
||||
|
Cooling Capacity
|
|
|
kw
|
27.6 (7 Tons)
|
||||
|
|
|
|
kcal/h
|
237000
|
||||
|
Heating Capacity
|
|
|
kw
|
33.6
|
||||
|
|
|
|
kcal/h
|
289000
|
||||
|
Energy Regulation
|
|
|
|
0, 100
|
||||
|
Air Flow
|
|
|
m³/h
|
6000
|
||||
|
External Static Pressure
|
|
|
Pa
|
≥250
|
||||
|
Temperature Range
|
|
|
℃
|
18~30℃, ±2℃
|
||||
|
Power Supply
|
|
|
-
|
380V/50HZ/3P
|
||||
|
Rated Power
|
|
|
kw
|
15.8
|
||||
|
Compressor
|
Type
|
|
-
|
Enclosed Scroll Type
|
||||
|
|
Quantity
|
|
unit
|
1
|
||||
|
|
Input Power
|
|
kw
|
7.5
|
||||
|
Refrigerant
|
Type
|
|
-
|
R22/R407c(Higher Price)
|
||||
|
|
Throttling
|
|
-
|
Thermal Expansion Valve
|
||||
|
Type of Evaporator & Condenser
|
|
|
|
Copper Tube with Aluminum Fin
|
||||
|
Air Supply Fan
|
Type
|
|
-
|
Double Intake centrifugal fan
|
||||
|
|
Power
|
|
kw
|
1.5
|
||||
|
Condensing Fan
|
Type
|
|
-
|
Low Noise Axial Flow
|
||||
|
|
Quantity
|
|
unit
|
2
|
||||
|
|
Power
|
|
kw
|
0.8
|
||||
|
Air Filter
|
|
|
|
Plate Type Primary Filter
|
||||
|
Dimensions
|
Universal
|
Length
|
mm
|
2365
|
||||
|
|
|
Width
|
mm
|
2200
|
||||
|
|
|
Height
|
mm
|
1920
|
||||
|
|
Basic
|
Length
|
mm
|
4255
|
||||
|
|
|
Width
|
mm
|
2200
|
||||
|
|
|
Height
|
mm
|
1920
|
||||
|
Weight
|
|
|
kgs
|
750
|
||||
Instruction of Segments Combination
● It contains multiple combinations, so users can select against their own demands
● The segments can be added or subtracted depending
● More options for users, such as noise reduction, heat recovery, ozone purification etc.
● The explosion-proof type acts as our charactered products for such places flammable, explosive and other specific places. Please consult our technician for more details
● The parameters and outline of general type and basic type are shown in this brochure. Parameters, external static pressure etc. can be adjusted depends. Please consult our technician for more details
● Options of supply air and return air, such as return air on top, on side, and on lower part. Options of supply air has supply on top, on side, on end, on lower part etc; This is optional and depends, needs to be marked when ordering
FAQ
1. What should I do to buy from you?
Step 1: Both parties finalize products specifications in the sales contract
Step 1: Both parties finalize products specifications in the sales contract
Step 2: Buyers make deposit 50%
Step 3: Sellers start the production since the 50% deposit received
Step 4: Buyers pay the remaining 50% when the products are ready to ship
Step 5: Sellers make the shipment after the remaining 50% received
Step 6: Sellers provide documents for buyer's custom clearance
4. What should I do to choose an model for myself?
5. Do you accept OEM or ODM?
6. What about payment?
7. How to guarantee the quality of your products?
Step 3: Sellers start the production since the 50% deposit received
Step 4: Buyers pay the remaining 50% when the products are ready to ship
Step 5: Sellers make the shipment after the remaining 50% received
Step 6: Sellers provide documents for buyer's custom clearance
2. Are you a factory or trading company?
We are factory supplier focusing on humidity control for 10 years.
3. Do you accept small orders?
Yes we do. A small order is accepted to get more orders
in the future.
in the future.
4. What should I do to choose an model for myself?
Please tell us the supplying area size (length*width*height), and the RH you need. We will study and suggest you the right model.
5. Do you accept OEM or ODM?
Yes, both accepted.
6. What about payment?
Payment Method: T/T, L/C, PayPal, Western etc.
50% deposit, the remaining 50% before shipment made.
7. How to guarantee the quality of your products?
Good quality control and test strictly before shipment.
8. Why buy from us instead of other suppliers?
We have not only 15+ years experiences in the manufacturing and development of dehumidifiers and air conditioners ,but also experienced professional technicians and senior engineers who focuses on research and development.
8. Why buy from us instead of other suppliers?
We have not only 15+ years experiences in the manufacturing and development of dehumidifiers and air conditioners ,but also experienced professional technicians and senior engineers who focuses on research and development.
