With nearly 10 years of experience in the photovoltaic industry, our factory has an automated production workshop with 3GW production capacity.
High quality products grade A with with competitive price. Also provide OEM service for clients, help to design Logo and other design service.
NUUKO has created a "closed-loop" development model of solar module R&D and production, and distribution cooperation.
- Product Details
- {{item.text}}

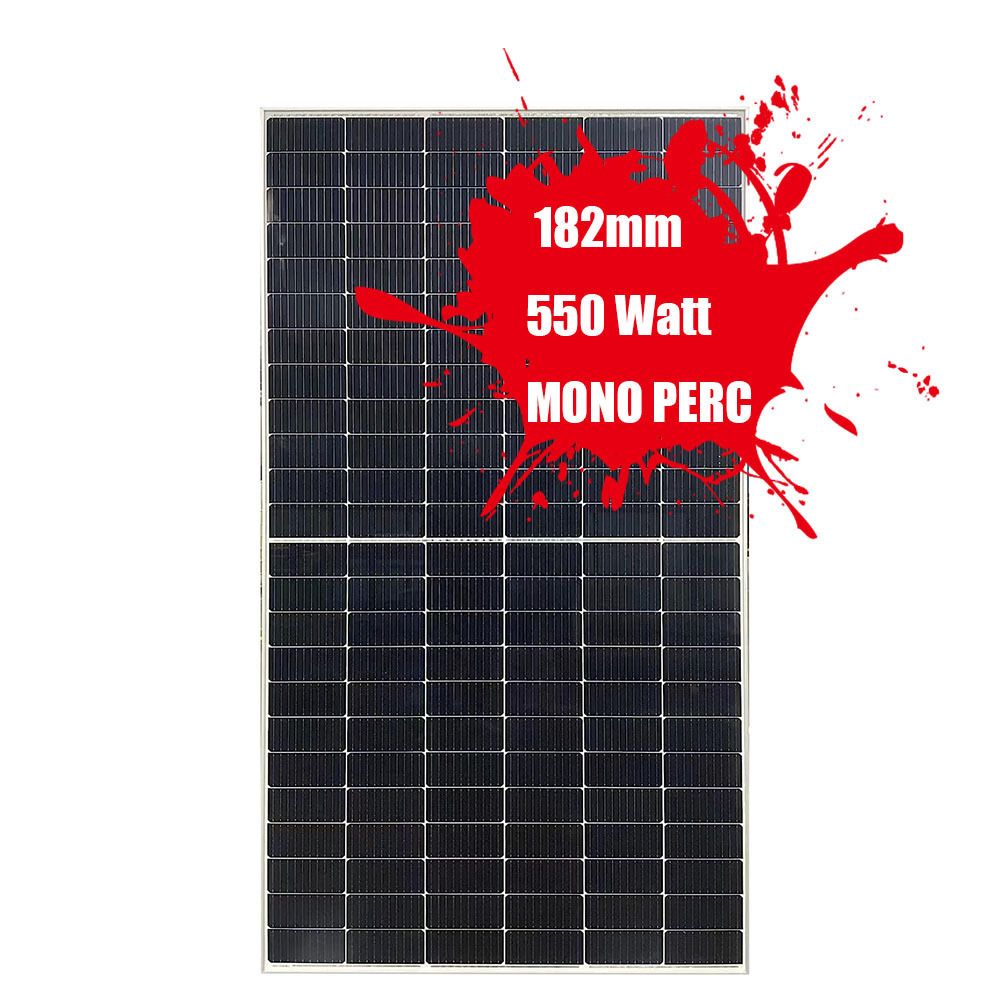

Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
NUUKO
-
Model Number:
-
NKM-144 540-560Watt
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35MM
-
Application:
-
Solar Power System
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68
-
OEM Order:
-
Acceptable
-
Cell Type:
-
Monocrystalline
-
Product name:
-
Monocrystalline Solar Panles
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/ISO/INMETRO, TUV, CE, ISO, INMETRO
-
Keyword:
-
Pv Module
-
Brand:
-
NUUKO
-
OEM:
-
Accept OEM Production
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
21.3%
-
Warranty:
-
25 years
-
Brand Name:
-
NUUKO
-
Model Number:
-
NKM-144 540-560Watt
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2278*1134*35MM
-
Application:
-
Solar Power System
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68
-
OEM Order:
-
Acceptable
-
Cell Type:
-
Monocrystalline
-
Product name:
-
Monocrystalline Solar Panles
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/ISO/INMETRO, TUV, CE, ISO, INMETRO
-
Keyword:
-
Pv Module
-
Brand:
-
NUUKO
-
OEM:
-
Accept OEM Production
Product Description
Material
GLASS
AR Coating Tempered Glass
CELL
5BB/9BB/10BB/11BB/12BB
157mm/158mm/166mm/182mm/210mm
FRAME
Anodized Aluminium Alloy
JUNCTION BOX
IP68 Waterproof
Innovative Full-Glue-Filled
Cable Length is Optional
MC4 CONNECTOR
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
LABEL
OEM service is supported
Specification
|
MECHANICAL SPECIFICATIONS
|
|
|
|
Cell Type
|
Monocrystalline
|
|
|
Weight
|
29kg (63.9lbs.)
|
|
|
Dimensions
|
2278*1134*35mm (89.72*44.65*1.38 inches)
|
|
|
Cable Length
|
Portrait 300mm/Landscape 1200mm/Customized
|
|
|
Cable Cross Section Size
|
TUV: 4mm2 (0.006inches2)/UL: 12AWG
|
|
|
No. of Bypass Diodes
|
3/6
|
|
|
ELECTRICAL SPECIFICATIONS
（
STC Testing Condition）
|
|
|
|
|
|
|||||
|
Rated output (Pmp/Wp)
|
530
|
535
|
540
|
545
|
550
|
|||||
|
Maximum Power Voltage(Vmpp/V)
|
41.7
|
41.8
|
41.9
|
42.0
|
42.1
|
|||||
|
Maximum Power Current(Impp/A)
|
12.71
|
12.80
|
12.89
|
12.98
|
13.07
|
|||||
|
Open Circuit Voltage(Voc/V)
|
49.5
|
49.6
|
49.7
|
49.8
|
49.9
|
|||||
|
Short Circuit Current(Isc/A)
|
13.44
|
13.53
|
13.62
|
13.71
|
13.80
|
|||||
|
Module efficiency(%)
|
20.5%
|
20.7%
|
20.9%
|
21.1%
|
21.3.%
|
|||||
|
Power Tolerance (W)
|
0~+5
|
|
|
|
|
|||||
|
Temprature Coefficient (Pmax)
|
-0.36%/℃
|
|
|
|
|
|||||
|
Temprature Coefficient (Voc)
|
-0.26%/℃
|
|
|
|
|
|||||
|
Temprature Coefficient (Isc)
|
0.043%/℃
|
|
|
|
|
|||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Factory
NUUKO POWER CO.,LTD
Our Team with Customers
Project
Palermo, Italy
Capacity: 150KW
Module Type: NKP330-72
Time: Jun.10th,2019
OSlo, Norway
Capacity: 50KW
Module Type: NKM305-60
Time: Aug.3rd,2020
Laem Chabang, Thailand
Capacity: 250KW
Module Type: NKM445-144M6
Time: Mar.7th,2020
Shandong, China
Capacity: 5MW
Module Type: NKM450-144M6
Time: Oct.8th,2020
Hanoi, Vietnam
Capacity: 500KW
Module Type: NKM450-144M6
Time: Apr.6th,
2019
Henan, China
Capacity: 50KW
Module Type: NKM440-156
Time: Apr.27th,2020
FAQ
Q: Do you have any experience manufacturing products for our industry?
A: We have more than 10 years experience in PV industry.
If you have any questions, welcome to contact us and
send us inqury
at bottom of this page.
