Quick Details
-
Place of Origin:
-
Henan,China (Mainland), Henan,China (Mainland)
-
Voltage:
-
220v, 220v
-
Power:
-
1500W, 1.5kw
-
Dimension(L*W*H):
-
910*385*810mm
-
Weight:
-
110 KG, 110kg
-
Machinery Function:
-
Fruit and Vegetables Spiral Juicer Machine
-
Output product name:
-
Fruit Juice / Vegetables Juice
-
Product name:
-
Pear Juice Screw Extractor Machine
-
Model:
-
HT-LZ0.5
-
Dimension:
-
910*385*810mm
-
Capacity:
-
500kg/h
-
MOQ:
-
1 SET
-
Package:
-
Fumigation-free Wooden Case
Quick Details
-
Raw material:
-
Fruit, Vegetables, Pear Juice Screw Extractor Machine
-
Model Number:
-
HT-LZ0.5, Pear Juice Screw Extractor Machine
-
Brand Name:
-
HENTO
-
Place of Origin:
-
Henan,China (Mainland), Henan,China (Mainland)
-
Voltage:
-
220v, 220v
-
Power:
-
1500W, 1.5kw
-
Dimension(L*W*H):
-
910*385*810mm
-
Weight:
-
110 KG, 110kg
-
Machinery Function:
-
Fruit and Vegetables Spiral Juicer Machine
-
Output product name:
-
Fruit Juice / Vegetables Juice
-
Product name:
-
Pear Juice Screw Extractor Machine
-
Model:
-
HT-LZ0.5
-
Dimension:
-
910*385*810mm
-
Capacity:
-
500kg/h
-
MOQ:
-
1 SET
-
Package:
-
Fumigation-free Wooden Case

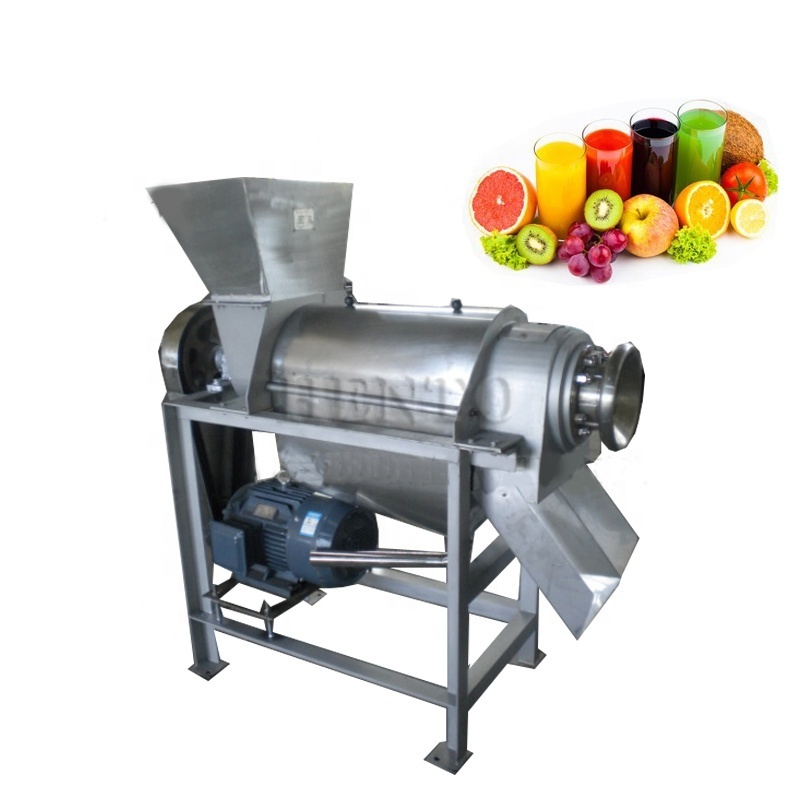

Hento Factory Pineapple Juice Spiral Juicer / Tomato Sauce Spiral Juicing Machine / Pear Juice Screw Extractor Machine
1.Usage and Application
For squeezing fruit and vegetable juices sachas tomatoes,pineapples,oranges etc.
2. Equipment strueture and working principle (refer to the drawing)
(1) Structure
This machine consists of such parts as the front support,feeding chute,spiral, stainer, juice container, the back support ,waste outlet.The left of screw spindle is in the rolling bearing and the right is in the handwheel bearing.The motor pulls a pair of triaagle belts to make tae screw work.
(2) Working principle
The componeat of this equipment is screw.The diameter gradually increases along the direction of fruit waste outlet while the distance from the screw clecreases,thus squeezing the materrals.The rotational direction of screw spindle is clockwise.
3.Installation and Maintenance
(1) The machine must be installed in the horizontal line and must be fixed by the screw.
(2) Operation
When turning on the machine,the worker must regulate the press regulator to make the break become wide and taen it will nahoow.
(3) Maintenance
It must be washed when turning on the machine,especially the stainer.If there is too much fiber,the stainer must be washed very often.After squeezing the machine.
|
Model |
HT-LZ0.5 |
HT-LZ1 |
HT-LZ1.5 |
HT-LZ3 |
HT-LZ5 |
|
Capacity |
500kg/h |
1000kg/h |
1500kg/h |
2000-3000kg/h |
5000kg/h |
|
screw diameter |
80mm |
125mm |
175mm |
247mm |
400mm |
|
Power |
1.5kw |
4kw |
7.5kw |
11kw |
30kw |
|
Voltage |
220v |
380v |
380v |
380v |
380v |
|
speed of revolution |
crusher :400r.p.m, screw extractor :380r.p.m |
crusher:1000r.p.m, screw extractor :380r.p.m |
crusher:1000r.p.m, screw extractor :380r.p.m |
crusher:1450r.p.m, screw extractor :380r.p.m |
crusher :400r.p.m, screw extractor :380r.p.m |
|
filtering clearance |
0.6mm |
0.6mm |
0.6mm |
0.6mm |
0.6mm |
|
Dimension |
910*385 *810mm |
1700*942 *2310mm |
1300*600 *1300mm |
1550*700 *1750mm |
2530*944 *1870mm |
|
Weight |
110kg |
105kg |
250kg |
450kg |
1300kg |
If you need further information, please contact us freely, we will do our best to cooperate with you .
