- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
JKCSOLAR
-
Model Number:
-
JKC-FX
-
Color Temperature(CCT):
-
3000-7000K(customized available)
-
Beam Angle(°):
-
140*70°
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
6800-20400LM
-
Working Temperature(℃):
-
-25 - 65
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Lamp Body Material:
-
Anodized Die-casting aluminum alloy
-
Solar Panel:
-
High efficiency Monocrystalline silicon
-
LED:
-
USA Bridgelux 3030 Chips
-
Battery Type:
-
Powerful LifePO4 battery
-
Discharge time:
-
12hour/Day
-
Photoelectric conversion efficiency:
-
21%
-
Charging time:
-
5-6 Hours
-
Install height:
-
5-12m
-
Lighting Mode:
-
Dusk to dawn + Time controll + motion sensor
Quick Details
-
Warranty(Year):
-
3-Year
-
Lighting solutions service:
-
Lighting and circuitry design, Project Installation
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JKCSOLAR
-
Model Number:
-
JKC-FX
-
Color Temperature(CCT):
-
3000-7000K(customized available)
-
Beam Angle(°):
-
140*70°
-
CRI (Ra>):
-
80
-
Lamp Luminous Flux(lm):
-
6800-20400LM
-
Working Temperature(℃):
-
-25 - 65
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Lamp Body Material:
-
Anodized Die-casting aluminum alloy
-
Solar Panel:
-
High efficiency Monocrystalline silicon
-
LED:
-
USA Bridgelux 3030 Chips
-
Battery Type:
-
Powerful LifePO4 battery
-
Discharge time:
-
12hour/Day
-
Photoelectric conversion efficiency:
-
21%
-
Charging time:
-
5-6 Hours
-
Install height:
-
5-12m
-
Lighting Mode:
-
Dusk to dawn + Time controll + motion sensor
Directly factory with complete patents and certificates,customized products is available,welcome to n
egotiate
price!
Product Description

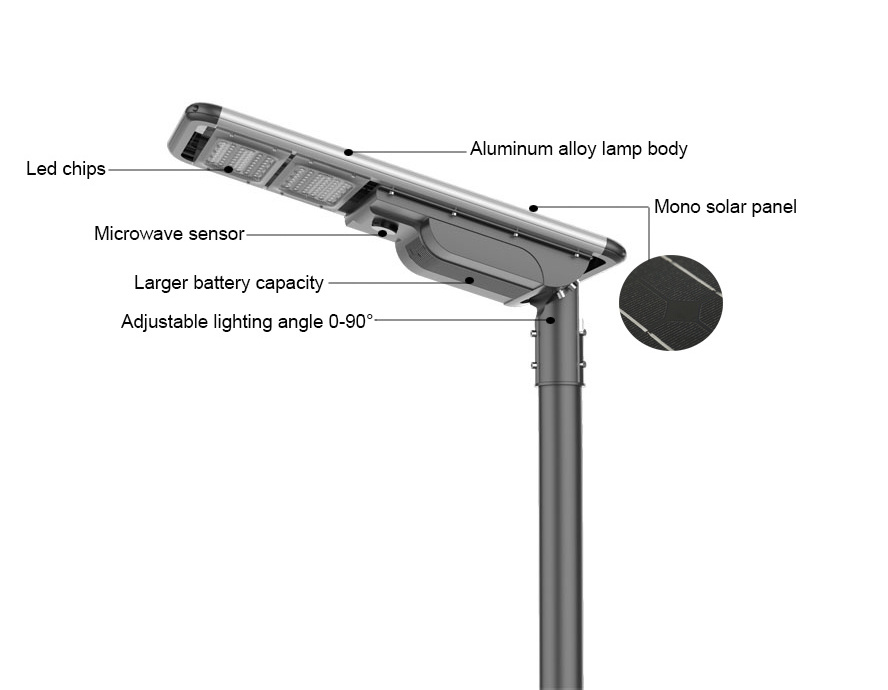

All In One LED Integrated Solar Street Light
Note: The above price is reference, and the final price is up to the final product specifications and quantity.
1. Anodized Die-casting aluminum alloy appearance, sturdy and durable, strong corrosion resistance.
2. Super brightness branded BridgeLux led chip,. professional optical, p
hotoelectric conversion efficiency
is 21%.
3. Integrate microwave motion sensor + magnetic switch + smart controller in one box, with working status indicator and battery power indicator.
4. Brand New A grade LifePO4 battery, >2000 times deep cycle,8-10 years lifespan.
|
Model
|
JKC-FX-40
|
JKC-FX-50
|
JKC-FX-60
|
JKC-FX-80
|
JKC-FX-100
|
JKC-FX-120
|
|||||
|
Lamp Power
|
40W
|
50W
|
60W
|
80W
|
100W
|
120W
|
|||||
|
Battery Capacity
|
12.8V 358.4WH
|
12.8V 460.8WH
|
12.8V 512WH
|
12.8V 729.6WH
|
12.8V 806.4WH
|
12.8V 921.6WH
|
|||||
|
Solar panel
|
18V 65W
|
18V 70W
|
18V 80W
|
18V 100W
|
18V 130W
|
18V 140W
|
|||||
|
Install height
|
4-7 m
|
5~7 m
|
6~8 m
|
7-9 m
|
8-10 m
|
9-12 m
|
|||||
|
Lamp size
|
848.6*385.5*108mm
|
1077.6*385.5*180mm
|
1077.6*385.5*180mm
|
1548.68*385.41*108mm
|
1863*385.5*108mm
|
1863*385.5*108mm
|
|||||
|
IP Grade
|
IP66
|
|
|
|
|
|
|||||
|
Lighting Mode
|
Dusk to dawn + Time controll + motion sensor
(Bright lighting 30secs when people move through the light)
|
|
|
|
|
|
|||||
|
ODM/OEM
|
Welcome to customized products,just send your requirement! (Low MOQ)
|
|
|
|
|
|
|||||
