Quick Details
-
Throat Depth (mm):
-
200 mm
-
Width of Working Table (mm):
-
120 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RAYMAX/Beilin
-
Weight (KG):
-
1800
-
Motor Power (kw):
-
5.5 kw
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
United States
Quick Details
-
Machine Type:
-
Synchronized
-
Length of Working Table (mm):
-
1600 mm
-
Slider Stroke (mm):
-
100 mm
-
Throat Depth (mm):
-
200 mm
-
Width of Working Table (mm):
-
120 mm
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
RAYMAX/Beilin
-
Weight (KG):
-
1800
-
Motor Power (kw):
-
5.5 kw
-
Certification:
-
ce
-
After-sales Service Provided:
-
Free spare parts
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
United States
Products Description

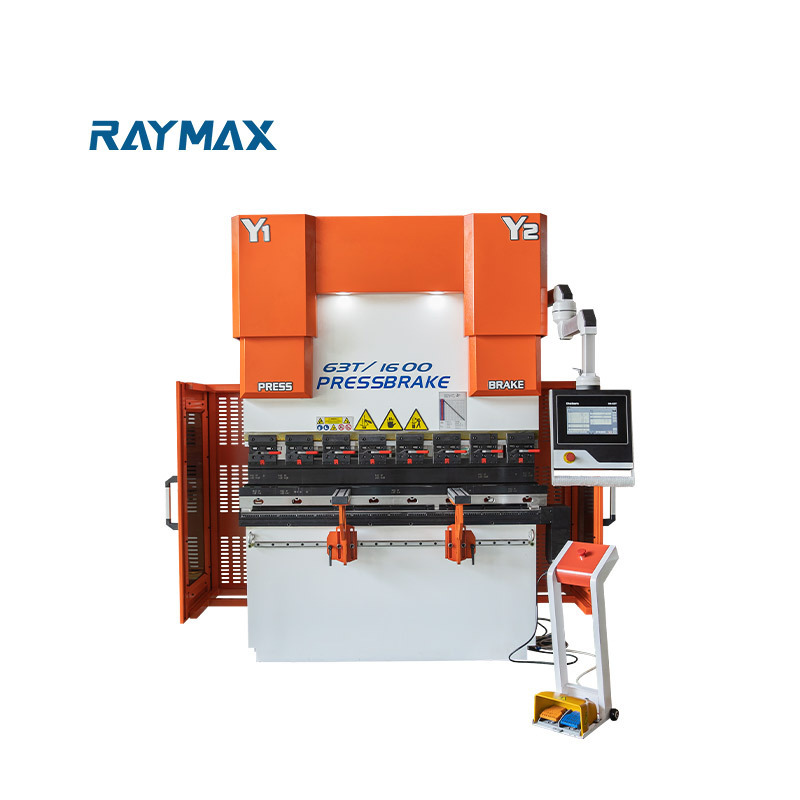

40T/50T/63T/80T CNC Hydraulic press brake
Integral welding processing structure
International famous brand electro-hydraulic servo valve and grating ruler form closed loop control mode
High slider position feedback accuracy, accurate and smooth operation, good synchronization performance, bending accuracy, high slider repeat positioning accuracy.
Rear baffle material can be according to customer demand to adopt more complete function of the rear baffle material shaft of the rear baffle material mechanism.
The hydraulic system adopts integrated control system, which reduces the installation of pipelines, eliminates oil leakage, ensures the working stability of machine tools, and makes the appearance scientific and beautiful.
Hydraulic deflection automatic compensation mechanism, eliminate the impact of slider deformation on the quality of the workpiece, CNC system automatically adjust the amount of compensation, easy and accurate operation.
CNC system using the Netherlands DELEM, Italy ESA, Switzerland CYBELEC and other well-known brands dedicated CNC bending machine system.
Feature
1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.
2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.
3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
4. Torsion axis synchronization for slide synchronous mechanism.
5. The stroke of cylinder ( Y1,Y2) and back gauge (X,Y,Z )are computer controlled .The back gauge adopt ball screw and rolling guideway ,ensuring a high accuracy of repetition
6. Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
7. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe
working.
10.Electronic- hydraulic proportional servos are synchronized and capable of the control of random point within the stroke ,with an accuracy of reception of ±0.01 mm and parallelism of 0.02mm .
2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.
3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
4. Torsion axis synchronization for slide synchronous mechanism.
5. The stroke of cylinder ( Y1,Y2) and back gauge (X,Y,Z )are computer controlled .The back gauge adopt ball screw and rolling guideway ,ensuring a high accuracy of repetition
6. Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
7. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe
working.
10.Electronic- hydraulic proportional servos are synchronized and capable of the control of random point within the stroke ,with an accuracy of reception of ±0.01 mm and parallelism of 0.02mm .
Standard equipment
# Hydraulic system: BOSCH, Germany
# Servo motor and drive
# Grating ruler: GIVI, Italy
# Ball screw and linear guide: HIWIN, Taiwan
# Main electrical components: French SCHNEIDER
# Bench compensation: hydraulic compensation or mechanical compensation
Details Images
A large floor milling and boring machine is used to process the frame of the bending machine
The whole machine is in a welded sheet structure, with internal tension eliminated by vibration aging technology, high strength and good rigidity of the machine. The long service life of the machine is ensured.
LED light, it is easier and safer when the environment is dark for the operator
Measuring step 5 um connection rod connection large mounting tolerances
BOSCH-REXROTH Hydraulic system
BOSCH-REXROTH Hydraulic system with overload overflow safety protection
The machine can work continuously under rated load
Hydraulic system decreased the pipe connections, oil leakage, and increased the stability and overall beautifies
High-pressure clamp tubing connection, high-pressure non-oil, easy to maintain
Backgauge
The backgauge, it is made of high-strength aluminum alloy material, driven by servo motors,and uses ball rods and linear guide rails, with good positioning accuracy. Full envelope design free of maintenance
Adopting France Schneider electric to ensures the machine stability, using Estun servo drive and control X-axis to ensure the positioning accuracy of X-axis, and the speed of X-axis are adjustable.
Compensation crowning table can promise the bending precision for angle and strightness when you bend the workpiece.
Double structure front arm is higher rigidity, superior carrying capacity.
It can be adjusted up and down or move along the work bench from side to side
10.1" high resolution colour TFT
“Hot-key” touch navigation
Up to 4 axes (Y1,Y2 + 2 aux. axes)
Tool / material / product library
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
CNC Crowning control
USB memory stick interfacing
Profile-53TL offline software
Product Parameters
|
Model
|
Column distance
|
Throat depth
|
Opening height
|
Main motor
|
Weight
|
|
63T/2500
|
1900mm
|
250mm
|
360mm
|
5.5KW
|
3600KGS
|
|
63T/3200
|
2600mm
|
220mm
|
360mm
|
5.5KW
|
4200KGS
|
|
80T/2500
|
1900mm
|
320mm
|
380mm
|
7.5KW
|
4100KGS
|
|
80T/3200
|
2600mm
|
320mm
|
380mm
|
7.5KW
|
4800KGS
|
|
80T/4000
|
3100mm
|
320mm
|
380mm
|
7.5KW
|
5300KGS
|
|
100T/2500
|
1900mm
|
320mm
|
380mm
|
7.5KW
|
5100KGS
|
|
100T/3200
|
2600mm
|
320mm
|
380mm
|
7.5KW
|
5900KGS
|
|
100T/4000
|
3100mm
|
320mm
|
380mm
|
7.5KW
|
6800KGS
|
|
125T/3200
|
2600mm
|
320mm
|
400mm
|
7.5KW
|
6200KGS
|
|
125T/4000
|
3100mm
|
320mm
|
400mm
|
7.5KW
|
7200KGS
|
|
160T/3200
|
2600mm
|
320mm
|
450mm
|
11KW
|
9200KGS
|
|
160T/4000
|
3100mm
|
320mm
|
450mm
|
11KW
|
10500KGS
|
|
200T/3200
|
2600mm
|
320mm
|
450mm
|
11KW
|
10500KGS
|
|
200T/5000
|
4000mm
|
320mm
|
450mm
|
11KW
|
13000KGS
|
|
250T/3200
|
2600mm
|
350mm
|
450mm
|
11KW
|
15000KGS
|
|
250T/4000
|
3100mm
|
350mm
|
550mm
|
18.5KW
|
18000KGS
|
|
300T/4000
|
3100mm
|
350mm
|
550mm
|
22KW
|
22000KGS
|
|
400T/4000
|
3100mm
|
350mm
|
550mm
|
30KW
|
23000KGS
|
|
400T/6000
|
5000mm
|
350mm
|
550mm
|
30KW
|
29000KGS
|
