Quick Details
-
Mounting Type:
-
Proximity Switch Sensor
-
Description:
-
Proximity Switch Sensor, infrared mini proximity sensor, PNP
-
Manufacturing Date Code:
-
Proximity Switch Sensor
-
Model Number:
-
LM8-3001PA, LM8-3002LAT
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUMO, YUMO
-
Theory:
-
smart proximity sensor
-
Output:
-
NO
-
Max. Current:
-
150mA
-
voltage:
-
DC6-36V
-
package:
-
carton
-
Certificate:
-
CE
-
Protection grade:
-
IP67
-
Material:
-
Metal
-
Working temperature:
-
-25℃~+75℃
Quick Details
-
Use:
-
simbol proximity sensor
-
Series:
-
Proximity Switch Sensor
-
Features:
-
Proximity Switch Sensor
-
Mounting Type:
-
Proximity Switch Sensor
-
Description:
-
Proximity Switch Sensor, infrared mini proximity sensor, PNP
-
Manufacturing Date Code:
-
Proximity Switch Sensor
-
Model Number:
-
LM8-3001PA, LM8-3002LAT
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUMO, YUMO
-
Theory:
-
smart proximity sensor
-
Output:
-
NO
-
Max. Current:
-
150mA
-
voltage:
-
DC6-36V
-
package:
-
carton
-
Certificate:
-
CE
-
Protection grade:
-
IP67
-
Material:
-
Metal
-
Working temperature:
-
-25℃~+75℃

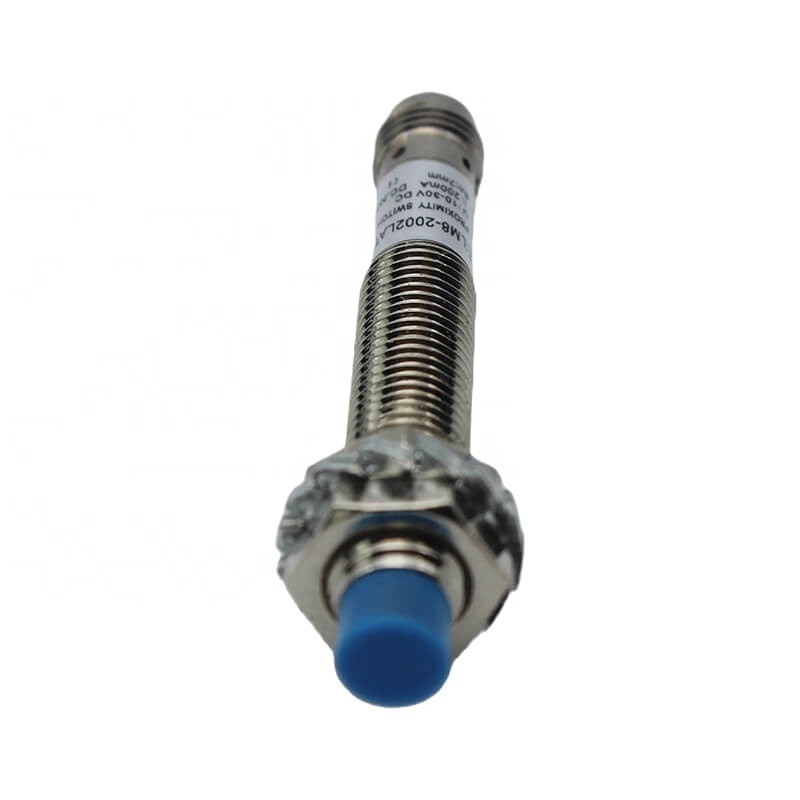

YUMO LM8-3002LAT 2mm Non-Flush NO two wire Inductive Proximity Switch Proximity Limit Switch
Technical Parameter
|
Structural category |
Cylinder type |
|||||
|
Outward appearance code |
LM6 |
LM8 |
LM12 |
|||
|
Outward appearance illustration |
|
|
|
|||
|
Flush |
Detection distance |
1mm |
1mm |
2mm |
||
|
DC 6~ 36 VDC |
NPN |
NO |
LM6-3001NA |
LM8-3001NA |
LM12-3002NA |
|
|
NC |
LM6-3001NB |
LM8-3001NB |
LM12-3002NB |
|||
|
NO+NC |
- |
- |
LM12-3002NC |
|||
|
PNP |
NO |
LM6-3001PA |
LM8-3001PA |
LM12-3002PA |
||
|
NC |
LM6-3001PB |
LM8-3001PB |
LM12-3002PB |
|||
|
NO+NC |
- |
- |
LM12-3002PC |
|||
|
Two wire system |
NO |
LM6-3001LA |
LM8-3001LA |
LM12-3002LA |
||
|
NC |
LM6-3001LB |
LM8-3001LB |
LM12-3002LB |
|||
|
AC 90~ 250 VAC |
SCR Controllable silicon |
NO |
- |
- |
LM12 -2002A |
|
|
NC |
- |
- |
LM12-2002B |
|||
|
NO+NC |
- |
- |
- |
|||
|
Relay output |
- |
- |
- |
|||
|
Non-flush |
Detection distance |
1.5mm |
2mm |
4mm |
||
|
DC 6~ 36 VDC |
NPN |
NO |
LM6-3002NA |
LM8-3002NA |
LM12-3004NA |
|
|
NC |
LM6-3002NB |
LM8-3002NB |
LM12-3004NB |
|||
|
NO+NC |
- |
- |
LM12-3004NC |
|||
|
PNP |
NO |
LM6-3002PA |
LM8-3002PA |
LM12-3004PA |
||
|
NC |
LM6-3002PB |
LM8-3002PB |
LM12-3004PB |
|||
|
NO+NC |
- |
- |
LM12-3004PC |
|||
|
Two wire system |
NO |
LM6-3002LA |
LM8-3002LA |
LM12-3004LA |
||
|
NC |
LM6-3002LB |
LM8-3002LB |
LM12-3004LB |
|||
|
AC 90~ 250 VAC |
SCR Controllable silicon |
NO |
- |
LM8-2002A |
LM12-2004A |
|
|
NC |
- |
- |
LM12-2004B |
|||
|
NO+NC |
- |
- |
- |
|||
|
Relay output |
- |
- |
- |
|||
