Quick Details
-
Dimension(L*W*H):
-
1000*1000*800
-
Motor Power (kW):
-
7.5
-
Weight (T):
-
7
-
Marketing Type:
-
Hot Product
-
Product name:
-
Hole Punch Stainless Steel Tube Galvanized Pipe Punching Machine
-
Keyword:
-
Tube holing machine
-
Punching Speed::
-
60 times/min
-
Application:
-
Metalworking drilling
-
Hole Location Accuracy::
-
±0.5mm
-
Maximum Stroke of Punch::
-
100mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
besco
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1000*1000*800
-
Motor Power (kW):
-
7.5
-
Weight (T):
-
7
-
Marketing Type:
-
Hot Product
-
Product name:
-
Hole Punch Stainless Steel Tube Galvanized Pipe Punching Machine
-
Keyword:
-
Tube holing machine
-
Punching Speed::
-
60 times/min
-
Application:
-
Metalworking drilling
-
Hole Location Accuracy::
-
±0.5mm
-
Maximum Stroke of Punch::
-
100mm
Pipe special punching machine Product Application

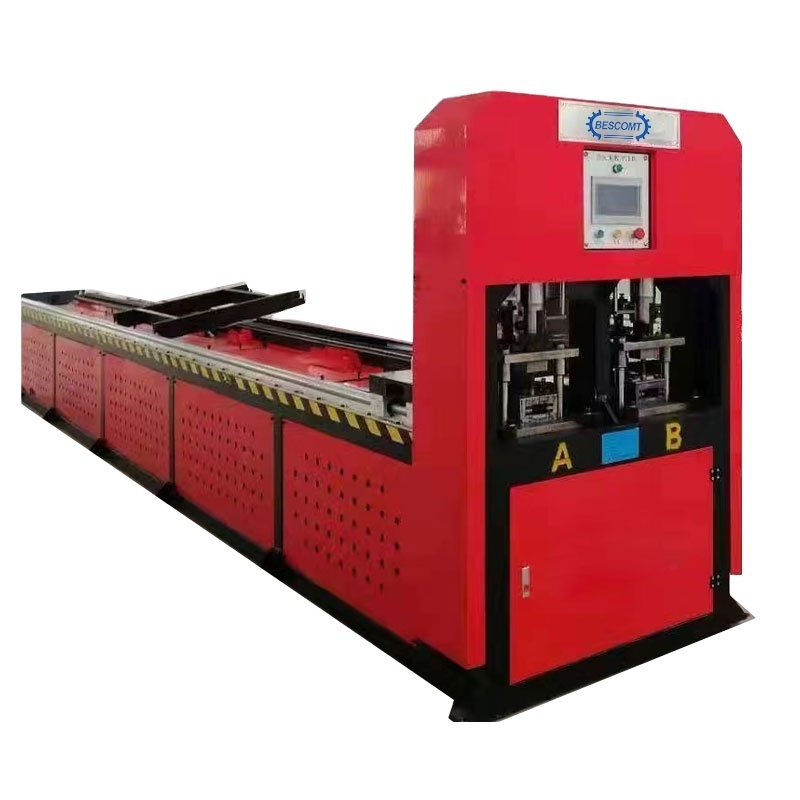

Fully automatic CNC pipe punching machine, the main parts adopt imported and domestic high-end components manufacturing, automatic feed and return the whole machine adopts high precision servo motor control material, through the touch screen interface to set parameters and switching operation, simple operation, suitable for metal pipe punching, and metal processing, one can also blunt two same tubing or two with hole is apart from the different kinds of pipes, pitch can be arbitrary set, adjustment, high precision.Adjustable single face and double face, is the current pipe punching industry advanced CNC punch.
|
Number
|
Name
|
Unit
|
Parameter
|
|
1
|
Model
|
Stations
|
1/2/3 Optional
|
|
2
|
Function
|
/
|
Single punch, not equidistant punching,equidistant punching
rotary 360 degree
( can be customized )
|
|
3
|
Diameter and thickness of punching processing
|
mm
|
Φ 50 × t 3 --- Φ 40 × t 12
|
|
4
|
Punching hole distance
|
mm
|
0.1-11900
|
|
5
|
Punching one hole speed
|
Second
|
0.67-1.25(defined by actual conditions)
|
|
6
|
max stroke
|
mm
|
180
|
|
7
|
Maximum punching distance
|
mm
|
12000 ( can be customized )
|
|
8
|
Standard length of processing
|
mm
|
12000 ( can be customized )
|
|
9
|
Transmiss parts
|
/
|
flock and pinion drive, ball screw drive
|
|
10
|
Voltage
|
V
|
380 ( can be customized )
|
Besco Pipe Punching Machine Main Features
1.Touch Screen settings, NC control system, precise servo motor positioning, module storage memory function.
2. Structure:Steel plate welded structure
3. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes.
4. Punching Category: 1.single hole punching; 2.double hole punching; 3.Isometric hole punching; 4. none- Isometric hole punching; rotary punching.
5. Hydraulic and Servo System.
6. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
Standard Components for Besco Automatic Hydraulic Pipe Punching Hole machine
|
No.
|
Parts
|
Brand
|
Original Country
|
|
1
|
Hydraulic motor
|
Siemens
|
Germany
|
|
2
|
Servo Motor
|
Yonghong
|
Taiwan
|
|
3
|
Main electris
|
Schneider
|
France
|
|
4
|
Program controller
|
Yonghong
|
Taiwan
|
|
5
|
Liner guide
|
TBI
|
Taiwan
|
|
6
|
Touch screen
|
Wecon
|
Taiwan
|
|
7
|
Hydraulic valves
|
Yuken
|
Japan
|
|
8
|
Oil pump
|
Hitech
|
Taiwan
|
Metal material punching
High working efficiency
Independent mold design, can process several workpieces at the same time, easy to operate.
Various hole forming
Beautifully formed holes without burrs
Full hole half hole one key switch
Accurate punching control
The servo motor is matched with the reducer to accurately feed the PLC program output command.
Equidistant non-isometric easy control.
Pre-Sales Service
1. Before each customer uses the product, we will assist customers in well understanding the product information like method of operation, functions and applications, etc.
2. As for the detailed purchasing information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers.
3. At the same time, according to the customer's requirements, production process and equipment conditions, provide professional technical guidance and operation. The program is pre-tested and provides a full range of production site visits and technical training.
After-Sales Service
1. One year warranty is provided.
2. Keeping regular contact and making good service records, understanding and improvement of customer requirements and opinions.
3. Continuously improve product quality and improve service to customers.
4. Timely solution to failures in the production process to ensure customer scale production.
5. 24 hours on-line reply service is provided.
|
Packaging
|
|
|
|
Size
|
6700 (L) * 880(W) * 1740 (D)
|
|
|
Weight
|
3.0 T
|
|
|
Packaging Details
|
Using standard export package for pipe steel punching machine. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Besco Machine Tool L td. is a manufacturer of automatic punchingmachine with well-equipped testing facilities and strong technical force.
1.The leader in the automatic punchting machine and automation equipment industry.
2.We are a comprehensive enterprise in design,production,marketing and customer service.We have a high-quality
professional R&D team,production team and sales team.
3.With rich experience n PLC program,we have many cases that.are the first case in the field of punching machine in.China.
4.Our range of products scores high on performance,reliability,functional life,efficiency and construction.
5.Our technical staffs have mary years of experience in product design,various large-scale mechanical design,
electronic control systems and testing technology.
6.Our producis exported to Southeast Asia,middie East and many countries under OEM and ODM.
We hare been providing qu ality products and sarvices at a very competitive level to stay at the forefronlt of market.
7.The company takes technglogy and talent as the foundation of the industry.
Welcome to contact us for future business relalionships and mutual success!
Q1.Do you sell only standard machines?
A1.No,most of our machines are produced according to customers specifications,using top brand name components.
Q2.How to choose the proper machines?
A2.After accepting customers'workpiece drawings or samples,our professionals will firstconduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers.
Q3.What kind of payment terms do you accept?
A3.30%deposit in advance after the order confirmed,the balance should be paid off before shipment.
Q4.How can we use the machine?
A4.We will conduct basic theoretical and practical training for the customer's operatorsand related personnel.Providing detailed video and instruction book for the machine.
Q5.How long warranty can you provide?
A5.One year warranty is provided for free.And we will provide comprehensive after-sales service.
