Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPM CHNA
-
Voltage:
-
38V
-
Dimension(L*W*H):
-
600*2400*1670 mm
-
Weight (KG):
-
500
-
Power (kW):
-
0.9Kw
-
Output:
-
4000ps/min
-
Power:
-
0.9Kw
-
Power Supply:
-
220V 50Hz Single phase (Customized)
-
Weight:
-
500kg
-
Material Consist:
-
SS304 (SS316 is optional)
-
Machine Size:
-
600*2400*1670
Quick Details
-
Capacity (bottle/min):
-
40 - 120 bottle/min
-
Bottle Capacity (pcs/bottle):
-
2-9999
-
Capacity (pcs/h):
-
24000 pcs/h
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LTPM CHNA
-
Voltage:
-
38V
-
Dimension(L*W*H):
-
600*2400*1670 mm
-
Weight (KG):
-
500
-
Power (kW):
-
0.9Kw
-
Output:
-
4000ps/min
-
Power:
-
0.9Kw
-
Power Supply:
-
220V 50Hz Single phase (Customized)
-
Weight:
-
500kg
-
Material Consist:
-
SS304 (SS316 is optional)
-
Machine Size:
-
600*2400*1670

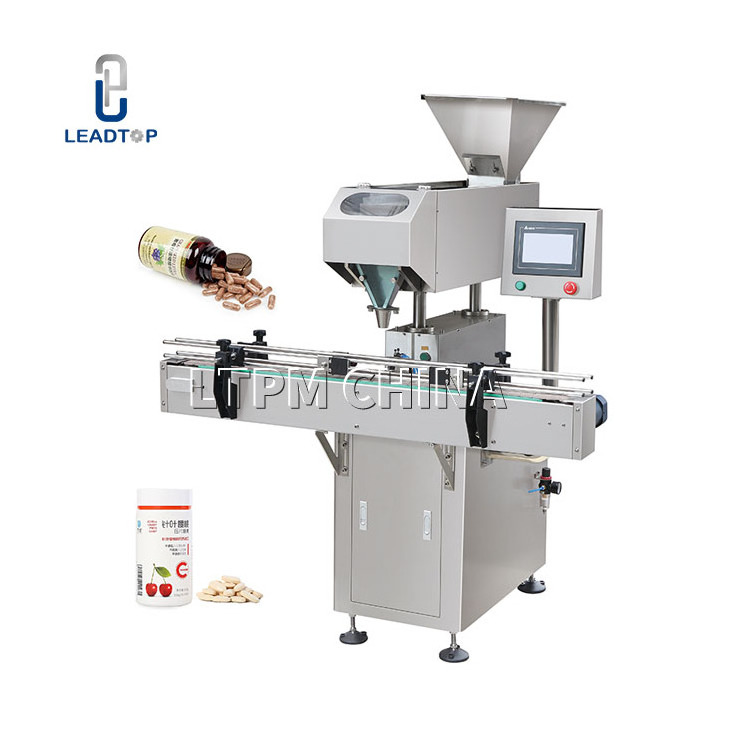

High Speed Type Electronic Counting Machine
The High Speed Counting Machine is special for counting tablets, soft gelatin, chewing gums, etc. The advantage of the machine is no need change mould when you change the counting object, only adjusting the counting table height by Easy Adjust wheel. The machine comes with Touch screen operation and PLC Control for convenient running.
Products Description
Technical Parameters
|
Model Name
|
LTEC-8
|
LTEC-16
|
LTEC-24
|
LTEC-32
|
|||
|
Hopper Volume
|
20L
|
40L
|
45L
|
80L
|
|||
|
Capacity
|
10-20bottles/min
|
60-70bottles/min
|
80 bottles/min
|
40-120bottles/min
|
|||
|
Filling Quantity
|
2-9999pcs/bottle
|
15-9999pcs/bottle (Adjustable)
|
|
|
|||
|
Bottle Size
|
Diameter: 30-75mm
Height:40-250mm |
|
|
Diameter: 30-90mm
Height:40-250mm |
|||
|
Counting Size
|
Thickness: 3-10mm
Diameter: 3-15mm Length: 3-30mm |
|
|
Thickness: 3.5-10mm
Diameter: 3.5-15mm Length: 3.5-30mm |
|||
|
Compressed air
|
0.5Mpa
|
|
|
|
|||
|
Conveyor Belt Length
|
|
2400mm
|
2400mm
|
3000mm
|
|||
|
Machine Weight
|
120kg
|
500kg
|
750kg
|
1000kg
|
|||
|
Machine Size（mm）
|
660*1280*780
|
600*2400*1670
|
2000*1600*1680
|
2200*1400*
|
|||
Product Details
Smart Touch Screen
With Siemens touch screen, various parameters and measurement can be set according to requirements, and multiple languages are
supported.
Adjusting Device
The height of the feed opening can be adjusted freely within a certain range to adapt to bottles of different sizes.
Warning Light
Acousto-optic system, allowing users to see the working status of the machine more intuitively
Feeding Trough
Feeding Trough
Can be customized according to customer requirements
Can be customized according to customer requirements
Lifting Adjustment Device
With Schneider switch,it is suitable for a variety of bottle heights.
Multi-stage Vibration Blanking Device
Effective separation and sorting of materials of different specifications, adjustable vibration frequency, low noise
Conveyor Belt Speed Controller
The speed can be adjusted according to the actual loading
Photoelectric Sensor
It adopts Japan's Panasonic photoelectric eye, which is sensitive, easy to adjust, has the function of pause when there is no
bottle, and self-checking. It is suitable for bottles of different colors and specifications.
bottle, and self-checking. It is suitable for bottles of different colors and specifications.
High-resolution Photoelectric Detection Device
Using anti-dust electronic counting technology, it can still operate normally in a high dust environment, there is no
electrostatic interference during the transportation process, and the accuracy rate is ≥99.8%
electrostatic interference during the transportation process, and the accuracy rate is ≥99.8%
High-performance Piracy System
The upper and lower closure design has obtained the national new patent, No damage to materials when working
Precision Electrical Components
Adopt branded precision electronic components, safe and stable, reasonable layout, convenient maintenance
Feature
1.Compatibility, high accuracy, wide application and use of the Company's original anti-dust photoelectric detection of high technology, can count Tablets (including special-shaped tablets), softgel (transparent, opaque), pill count to bottling;
3.A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4.Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5.To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
6.Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
7.Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8.Low prices, especially for small-volume, variety and more manufacturers use.
9.Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
2.Vibratory cutting do not damage;
3.A high degree of intelligence, with no bottle is not the number of self-fault detection alarm and many other control functions;
4.Compact structure, stability and durability, and no regular replacement parts, small footprint, the use of low-cost;
5.To facilitate the replacement of species, can automatically take-off and landing, demolition cleared without any tools, convenient and quick;
6.Chinese dialogue control panel, can store 10 ~ 20 group of species parameters, adjusted to facilitate the use of special;
7.Fully automatic operation, with the Upper and Lower Union Road, intelligent control of processes, coordination, and no special operation, labor-saving devices.
8.Low prices, especially for small-volume, variety and more manufacturers use.
9.Control chip imported to the United States, photoelectric sensors for Taiwan's imports.
