Quick Details
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
20 KG
Product Description

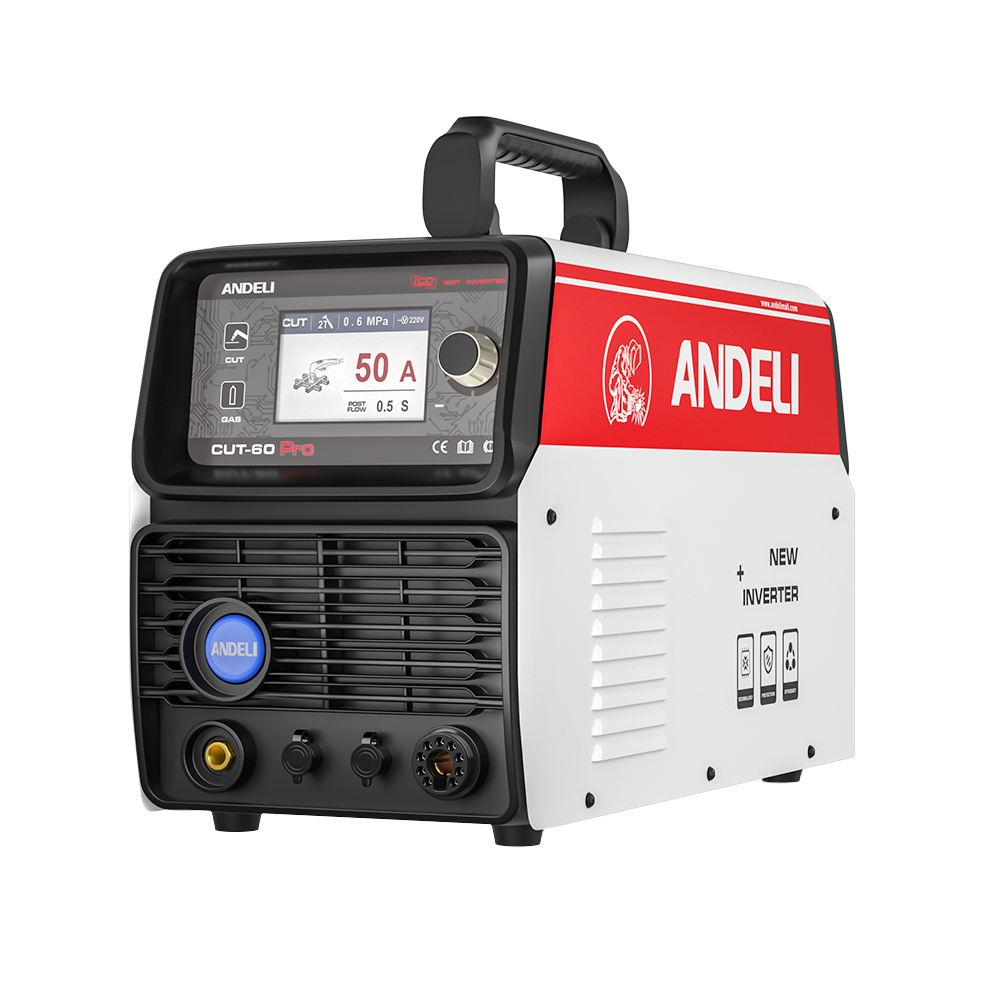

CUT-60
Professional plasma cutting machine, single-function professional cutting machine ,NON-HF 220V ,MAX cut thickness 35mm, effective cutting thickness 30mm,NON-HF 380V MAX cutting thickness 40mm, effective cutting thickness 35mm
LCD Panel support parameters adjustment
Current change automatically based upon plate thickness
2T/4T support easy function for torch .
2cores and 4 cores CNC interface , CNC Compatiable.
Specification
|
item
|
LCD CNC CUT-60 PRO
|
|
|
|
Input Voltage (V)
|
220V ±10% 1PH/3PH
|
400V ±10% 3PH
|
|
|
Rated Input Current
|
42
|
11
|
|
|
Rated Input Capacity
|
9.6
|
7.5
|
|
|
non-load voltage
|
365
|
320
|
|
|
current range ( A)
|
20-50
|
20-60
|
|
|
Rated Output Voltage
|
88-100
|
88-104
|
|
|
Efficiency %
|
85
|
86
|
|
|
power factor
|
0.63
|
0.99
|
|
|
30% Duty Cycle (40℃,10min)
|
50
|
60
|
|
|
60% Duty Cycle (40℃,10min)
|
35
|
42
|
|
|
100% Duty Cycle (40℃,10min)
|
27
|
33
|
|
|
CUTTING THICKNESS
|
CARBON STEEL
|
30 MM 110V/ 35MM 220V
|
|
|
|
STAINLESS STEEL
|
20 MM 110V/ 25MM 220V
|
|
|
|
COPPER
|
10 MM 110V/ 14MM 220V
|
|
|
|
ALUMINIUM
|
15 MM 110V/ 20MM 220V
|
|
|
Pressure of Air Compressor (MPa)
|
0.3-0.6
|
0.3-0.6
|
|
|
Nozzle Inslde Hole(MM)
|
1.1
|
1.1
|
|
|
Insulation Class
|
H
|
H
|
|
|
Protection Class
|
IP21S
|
IP21S
|
|
|
Arcing Way
|
NON-TOUCH
|
NON-TOUCH
|
|
|
Grid Cut
|
YES
|
YES
|
|
|
Machine
Dimensions(MM) |
460*224*327
|
460*224*327
|
|
|
Weight(KG)
|
13.5
|
13.5
|
|
