Quick Details
-
Brand Name:
-
OPTFOCUS
-
Keywords:
-
PLC splitter
-
No. of Fiber:
-
1/N
-
Connector Type:
-
As request
-
Color:
-
Customized
-
Wavelength:
-
1260-1650nm
-
Size:
-
50*7*4mm
-
Return Loss:
-
55/50(dB)
-
Warranty:
-
1-3 Years
-
Use:
-
FTTH
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
PLC-M0104-SC-10
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OPTFOCUS
-
Keywords:
-
PLC splitter
-
No. of Fiber:
-
1/N
-
Connector Type:
-
As request
-
Color:
-
Customized
-
Wavelength:
-
1260-1650nm
-
Size:
-
50*7*4mm
-
Return Loss:
-
55/50(dB)
-
Warranty:
-
1-3 Years
-
Use:
-
FTTH

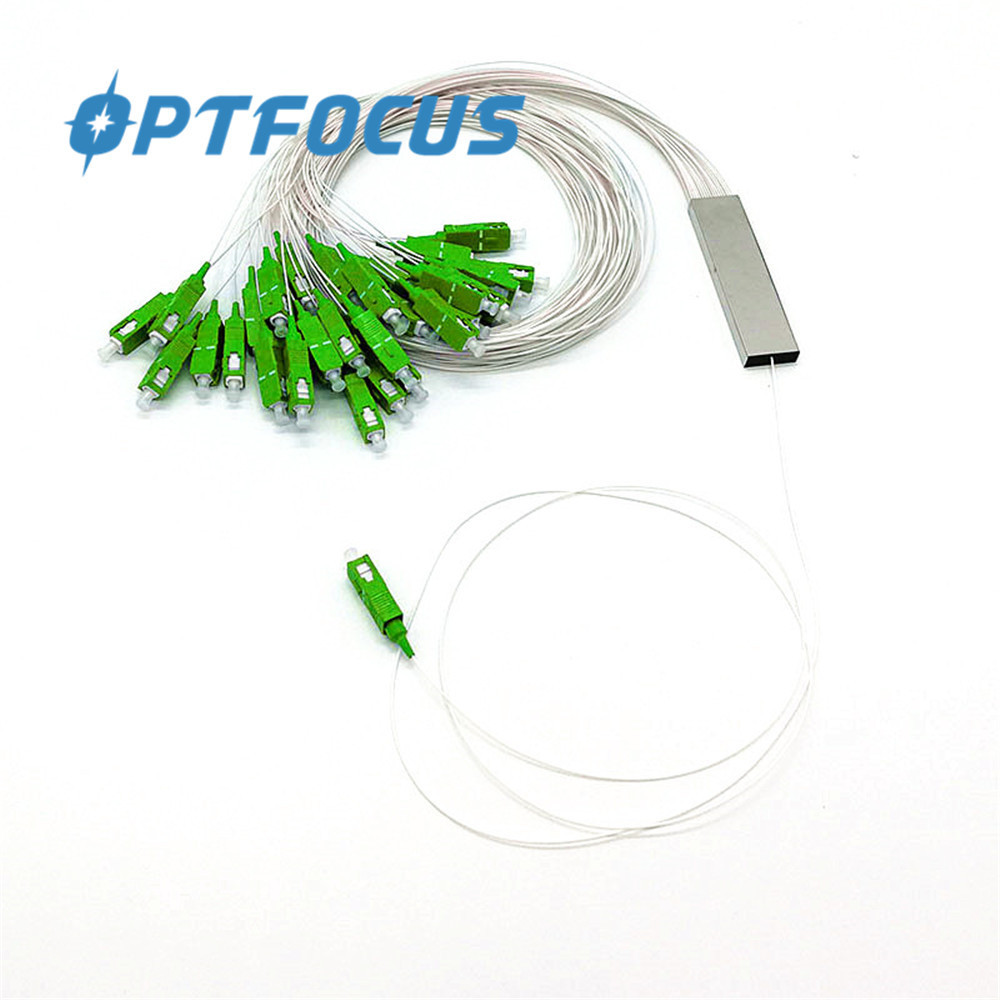

OEM factory 1x2 1x4 1x8 1x16 1X32 1X64 plc splitter 900um steel tube type fiber optic fbt copuler splitter
Description
OPTFOCUS provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.
Features
Lo w I n ser t i o n l o s s Lo w P D L Co m p act D es i g n
G oo d c h a nn e l- t o - c h a nn el un i f o r m it y W i d e O p e r a t i n g Wa v e l e n g t h :
F r o m 1260n m t o 1650n m W i d e O p e r a t i n g T e m p era t u r e:
F r o m - 4 0 ℃ t o 8 5 ℃
H i g h R e li a bility a nd S t a bility
Applications
FTTX Systems/ PON Networks/ CATV Links/ Optical Signal Distribution
Compliance
Telcordia GR-1209-CORE-2001/
Telcordia GR-1221-CORE-1999/
RoHS
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Table 1 – 1×N PLC
Splitter
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260 ~ 1650 |
|||||
|
Fiber Type |
G657A,G.652D or customer specified |
|||||
|
Insertion Loss (dB) ( P/S Grade ) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.0 |
|
Return Loss (dB) ( P/S Grade ) |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
55/50 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40 ~ 85 ℃ )(dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature ( ℃ ) |
-40 ~ 85 |
|||||
|
Device Dimension (mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
50×4×4 |
50×7×4 |
60×12×4 |
|
Module Dimension (mm) (L×W×H) |
100×80× 10 |
100×80× 10 |
100×80× 10 |
120×80× 18 |
140×115× 18 |
140×115× 18 |
