Quick Details
-
Production Speed(Cycles/min):
-
10-35
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.1 - 3 mm
-
Heating Power (kW):
-
100 kW
-
Air Comsumption(L/min):
-
2200 L/min
-
Water Comsumption(L/min):
-
0.5 L/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GTMSMART
-
Voltage:
-
0
-
Dimension(L*W*H):
-
5290x2100x3480mm
-
Weight (T):
-
9.5 T
-
Power(KW):
-
0
-
Product name:
-
High Efficiency PET PP Cup Thermoforming Machine For Plastic Cups
-
Model:
-
HEY11
-
Applicable Material:
-
PP, PET , PS etc
-
Certificate:
-
CE, ISO
-
Key words:
-
thermoforming machine for plastic cups
-
After-sales Service Provided:
-
Online support
-
Drive mode:
-
Hydraulic and pneumatic pressure
-
Pressure supply:
-
0.6-0.8
-
Power supply:
-
Three Phase 380V/50HZ
-
Price:
-
Factory price
Quick Details
-
Max.Forming Height(mm):
-
180 mm
-
Forming Width (mm):
-
350 mm
-
Forming Length (mm):
-
750 mm
-
Production Speed(Cycles/min):
-
10-35
-
Air Pressure(MPa):
-
0.7 MPa
-
Sheet Thickness(mm):
-
0.1 - 3 mm
-
Heating Power (kW):
-
100 kW
-
Air Comsumption(L/min):
-
2200 L/min
-
Water Comsumption(L/min):
-
0.5 L/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GTMSMART
-
Voltage:
-
0
-
Dimension(L*W*H):
-
5290x2100x3480mm
-
Weight (T):
-
9.5 T
-
Power(KW):
-
0
-
Product name:
-
High Efficiency PET PP Cup Thermoforming Machine For Plastic Cups
-
Model:
-
HEY11
-
Applicable Material:
-
PP, PET , PS etc
-
Certificate:
-
CE, ISO
-
Key words:
-
thermoforming machine for plastic cups
-
After-sales Service Provided:
-
Online support
-
Drive mode:
-
Hydraulic and pneumatic pressure
-
Pressure supply:
-
0.6-0.8
-
Power supply:
-
Three Phase 380V/50HZ
-
Price:
-
Factory price
.
| Cup Thermoforming Machine Application |
The whole Plastic Cup Thermoforming Machine is controlled by hydraulic and servo, with inverter sheet feeding, hydraulic driven system, servo stretching, these make it has stable operation and finish product with high quality. Mainly for the production of variety plastic containers with formed depth ≤180mm ( jelly cups, drink cups, package containers, etc) with thermoplastic sheets, such as PP, PET, PE, PS, HIPS, PLA,etc.
| Cup Making Machine Feature |
1. Utilize hydraulic system and electrical technology control for servo stretching. It’s a high price ratio machine which was developed base on customer’s market demand.
2. The whole plastic cup making machine is controlled by hydraulic and servo, with inverter feeding, hydraulic driven system, servo stretching, these make it has stable operation and finish product with high quality.
3. Thermoforming Cup Making Machine Technical Specifications
| Thermoforming Cup Making Machine Technical Specifications |
|
Model |
HEY11-6835 |
HEY11-7842 |
|
Max.Forming Area (mm 2 ) |
680*350 |
780x420 |
|
Working Station |
Forming, Cutting, Stacking |
|
|
Applicable Material |
PS, PET, HIPS, PP, PLA, etc |
|
|
Sheet Width (mm) |
350- 81 0 |
|
|
Sheet Thickness (mm) |
0. 3-2.0 |
|
|
Max. Forming Depth (mm) |
180 |
|
|
Max. Dia. Of Sheet Roll (mm) |
800 |
|
|
Mould Stroke (mm) |
250 |
|
|
Length of upper heater (mm) |
3010 |
|
|
Length of low er heater (mm) |
2760 |
|
|
Max. Mold Closing Force (T) |
50 |
|
|
Speed (cycle/min) |
Max 25 |
|
|
Accuracy of S heet T ransport(mm) |
0.15 |
|
|
Power Supply |
380V 50Hz 3 phase 4 wire |
|
|
Heating Power (kw) |
135 |
|
|
Total Power (kw) |
1 65 |
|
|
Machine Dimension (mm) |
5290*2100*3480 |
|
|
Sheet Carrier Dimension (mm) |
2100*1800*1550 |
|
|
Weight of Whole Machine (T) |
9.5 |
|
|

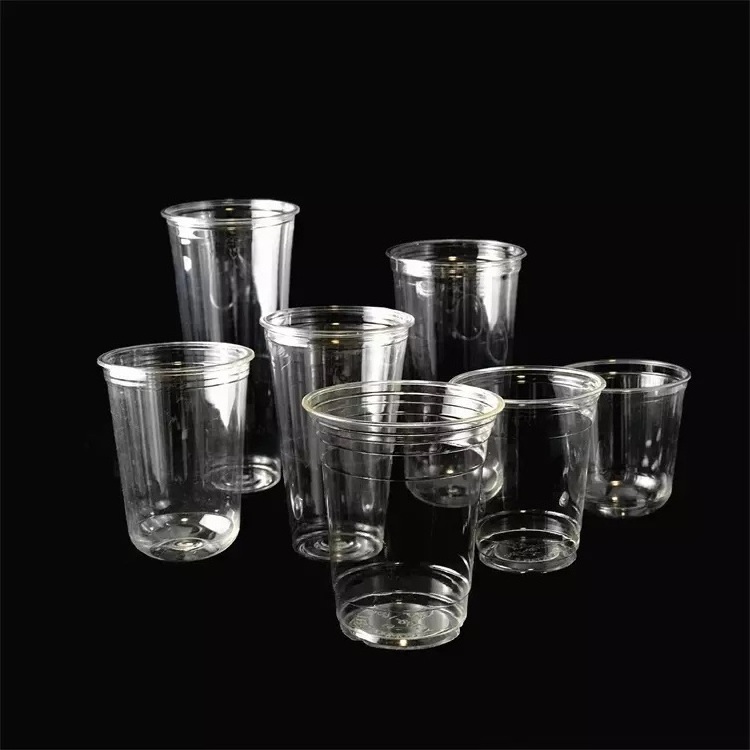

Product Image |
