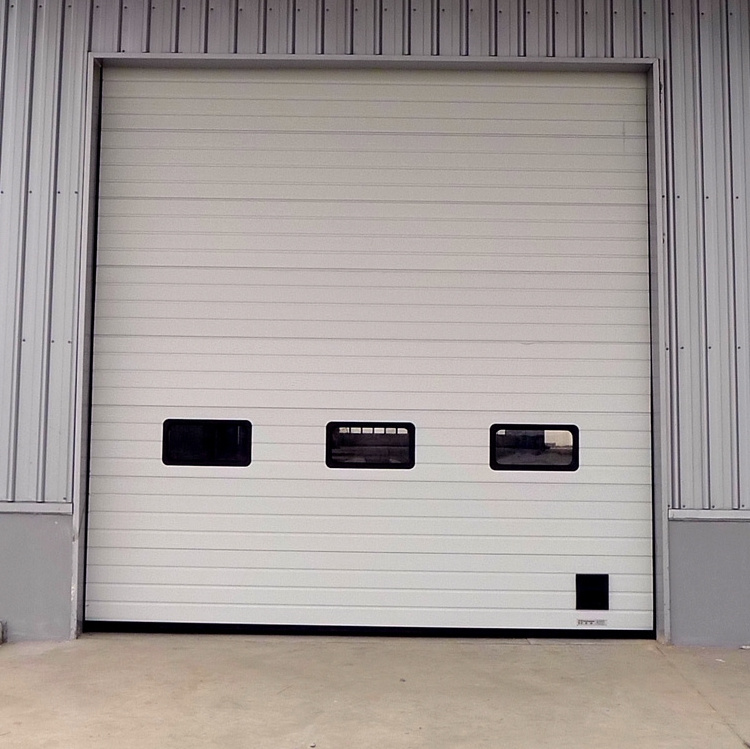

Sectional doors are installed at openings in industrial buildings, warehouses, workshops, docks and other industrial facilities. The reinforced door structure ensures uninterrupted operation and the reliable sealing system guarantees high thermal insulation of the room.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEPPES
-
Model Number:
-
SGD-120
-
Material:
-
Painted Steel
-
Product name:
-
Sectional Over Head Doors
-
Open Style:
-
Automatic Control
-
Type:
-
Roller
-
Color:
-
Customized Color
-
Size:
-
Customized Size
-
Style:
-
Modren
-
Surface treatment:
-
Painted Steel
-
Advantage:
-
High Security, Heat Preservation
-
Certificate:
-
CE Certificate
Quick Details
-
Door Material:
-
Painted Steel
-
Feature:
-
Waterproof
-
Main Material:
-
Painted Steel
-
Application:
-
Warehouse
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SEPPES
-
Model Number:
-
SGD-120
-
Material:
-
Painted Steel
-
Product name:
-
Sectional Over Head Doors
-
Open Style:
-
Automatic Control
-
Type:
-
Roller
-
Color:
-
Customized Color
-
Size:
-
Customized Size
-
Style:
-
Modren
-
Surface treatment:
-
Painted Steel
-
Advantage:
-
High Security, Heat Preservation
-
Certificate:
-
CE Certificate
SEPPES Sectional Door
Application
Product Advantages
Door Panel
40/43/50/60/75/80/43+60/51+120 (big rib) series door panels, filled with polyurethane foam (about 45KG/m³), impact resistance 245kg/m³, anti-pinch , sturdy and durable, thermal insulation and sound insulation.
Door Panel Structure
The top and both side guide rails are equipped with EPDM sealing tapes and bottom seals, which are completely sealed after the door is closed. The door panel interface is equipped with sealing rubber to cut off the heat transfer and reduce energy loss.
Balance Device
The torsion spring is made of high-quality spring steel, and the surface is treated with anti-corrosion and anti-rust treatment to achieve 30,000 cycles, and the order can reach 5/100,000 times. Pulley slides and hinges are an integral part of the balance system for light and smooth operation.
Control System
Brand control system, frequency conversion intelligent control door opening and closing, slow start and stop, more stable and durable. Multiple expansion ports are reserved to meet various customization needs such as interlock linkage, automatic door opening and remote control communication.
Fall Arrest Device
The torsion spring anti-break protection device is optional. When the torsion spring breaks accidentally, it will react quickly and lock the falling door body to force it to fall within 20cm. Safety anti-trap device.
Safety Equipment
Rich enhancement system, optional window, door-in-door, innovative non-threshold small door, lifting method, wind-resistant components, remote door opening, remote control, customized color of door panel, infrared safety protection and various induction door opening devices.
Various colors available
Details Images
Sectional Door Details
1.
Vertical guide rail
2.
Vertical side frame
3.
Door shaft
4.
Torsion spring fracture protection device
5. Sheave 6. Torsion spring sleeve 7. Balance spring mechanism (torsion spring) 8. Coupling
9. Inner bracket 10. Top roller bracket 11. Roller bracket 12. Big back muscles (optional)
13. Wire rope break protection device 14. Sandwich door panel 15. Inner hinge
16. Bottom aluminum profile and bottom sealing strip 17. Side seal 18. Top aluminum profile
19. Top sealing strip 20. Panel side cover with fixing holes
21. Step handle 22. End buffer 23. Ceiling mounting bracket
5. Sheave 6. Torsion spring sleeve 7. Balance spring mechanism (torsion spring) 8. Coupling
9. Inner bracket 10. Top roller bracket 11. Roller bracket 12. Big back muscles (optional)
13. Wire rope break protection device 14. Sandwich door panel 15. Inner hinge
16. Bottom aluminum profile and bottom sealing strip 17. Side seal 18. Top aluminum profile
19. Top sealing strip 20. Panel side cover with fixing holes
21. Step handle 22. End buffer 23. Ceiling mounting bracket
Installation Instructions
All measurements are made indoors and each value must be measured at at least three points:
H
- the height of the door opening (the distance from the ground to the top of the door opening)
When measuring H and B , take the maximum value as the final size
When measuring h , b1 , b2 and L , take the smallest value as the final size
B
- the width of the door opening (the distance from the left edge of the door opening to the right edge)
h
- at least 500 mm above the door opening (the distance from the top of the door opening to the ceiling)
b1/b2
- requires a lateral distance of at least 150 mm left and right (distance from the corresponding edge of the door opening to the obstacle)
L
is the depth of the room
When measuring H and B , take the maximum value as the final size
When measuring h , b1 , b2 and L , take the smallest value as the final size
