Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JKongmotor
-
Model Number:
-
JK57BLS01
-
Torque:
-
0.11N.m
-
Product name:
-
57mm Brushless Dc motor
-
Number of poles:
-
4
-
Insulation Class:
-
B
-
Body Length:
-
47mm
-
Weight:
-
0.44kg
-
Application:
-
Industrial Application
-
voltage:
-
36V
-
speed:
-
3000rpm
-
Shaft diameter:
-
6.35mm
-
Power:
-
46w
Quick Details
-
Speed(RPM):
-
4000rpm
-
Continuous Current(A):
-
2A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JKongmotor
-
Model Number:
-
JK57BLS01
-
Torque:
-
0.11N.m
-
Product name:
-
57mm Brushless Dc motor
-
Number of poles:
-
4
-
Insulation Class:
-
B
-
Body Length:
-
47mm
-
Weight:
-
0.44kg
-
Application:
-
Industrial Application
-
voltage:
-
36V
-
speed:
-
3000rpm
-
Shaft diameter:
-
6.35mm
-
Power:
-
46w
Specification
Product Name: Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 4 Poles /8 Poles /10 Poles
Rated Voltage: 24v /36v /48v /310v
Rated Speed: 3000rpm /4000rpm /or customized
Rated Torque: Customized
Rated Current: Customized
Rated Power: 23w~2500W
Product Name: 86mm bldc motor
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 48v
Rated Speed: 3000rpm
Rated Torque: 0.35N.m~2.1N.m
Rated Current: 3A~18A
Rated Power: 110W~660W
Number of Poles: 8 Poles
Rated Voltage: 48v
Rated Speed: 3000rpm
Rated Torque: 0.35N.m~2.1N.m
Rated Current: 3A~18A
Rated Power: 110W~660W
Related parts: Planetary Gearbox / Brake / Encoder / controller / Driver
Customized Design: Customization accept, such as encoder, various gearbox, brake, or other parameters customer need.
|
Product Series
|
Poles No.
|
Rated Voltage
|
Rated Speed
|
Rated Torque
|
Rated Power
|
Motor Length
|
||||||
|
8
|
24v
|
4000rpm
|
0.0625~0.25N.m
|
26~105w
|
41~100mm
|
|||||||
|
4
|
36v
|
4000rpm
|
0.055~0.44N.m
|
23~184w
|
37~107mm
|
|||||||
|
8
|
48v
|
3000rpm
|
0.3~1.2N.m
|
94~377w
|
78~120mm
|
|||||||
|
4
|
48v
|
3000rpm
|
0.35~1.4N.m
|
110~440w
|
78~138mm
|
|||||||
|
8
|
48v
|
3000rpm
|
0.35~2.1N.m
|
110~660w
|
71~138.5mm
|
|||||||
|
8
|
310v
|
3000rpm
|
1.65~6.6N.m
|
518~2073w
|
83~173mm
|
|||||||
|
10
|
310v
|
3000rpm
|
2.39~11.94N.m
|
750~2500w
|
115~190mm
|
|||||||
|
Above only for representative products, products of special request can be made according to the customer request.
|
|
|
|
|
|
|
||||||
|
86mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|
||||||
|
Model
|
|
Model
|
|
|
|
|
||||||
|
Specification
|
Unit
|
JK86BLS58
|
JK86BLS71
|
JK86BLS84
|
JK86BLS98
|
JK86BLS125
|
||||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|
||||||
|
Number Of Poles
|
Poles
|
8
|
|
|
|
|
||||||
|
Rated Voltage
|
VDC
|
48
|
|
|
|
|
||||||
|
Rated Speed
|
Rpm
|
3000
|
|
|
|
|
||||||
|
Rated Torque
|
N.m
|
0.35
|
0.7
|
1.05
|
1.4
|
2.1
|
||||||
|
Rated Current
|
Amps
|
3
|
6.3
|
9
|
11.5
|
18
|
||||||
|
Rated Power
|
W
|
110
|
220
|
330
|
440
|
660
|
||||||
|
Peak Torque
|
N.m
|
1.05
|
2.1
|
3.15
|
4.2
|
6.3
|
||||||
|
Peak Current
|
Amps
|
9
|
19
|
27
|
35
|
54
|
||||||
|
Back E.M.F
|
V/Krpm
|
13.7
|
13
|
13.5
|
13.7
|
13.5
|
||||||
|
Torque Constant
|
N.m/A
|
0.13
|
0.12
|
0.13
|
0.13
|
0.13
|
||||||
|
Rotor Inertia
|
g.c㎡
|
400
|
800
|
1200
|
1600
|
2400
|
||||||
|
Body Length
|
mm
|
71
|
84.5
|
98
|
111.5
|
138.5
|
||||||
|
Weight
|
Kg
|
1.5
|
1.9
|
2.3
|
2.7
|
4
|
||||||
Different Kinds of Planetary Gear Reducer for your reference
|
42mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|||||
|
|
|
Model
|
|
|
|
|||||
|
Specification
|
Unit
|
JK42BLS01
|
JK42BLS02
|
JK42BLS03
|
JK42BLS04
|
|||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|||||
|
Number Of Poles
|
Poles
|
8
|
|
|
|
|||||
|
Rated Voltage
|
VDC
|
24
|
|
|
|
|||||
|
Rated Speed
|
Rpm
|
4000
|
|
|
|
|||||
|
Rated Torque
|
N.m
|
0.0625
|
0.125
|
0.185
|
0.25
|
|||||
|
Rated Current
|
Amps
|
1.8
|
3.3
|
4.8
|
6.3
|
|||||
|
Rated Power
|
W
|
26
|
52.5
|
77.5
|
105
|
|||||
|
Peak Torque
|
N.m
|
0.19
|
0.38
|
0.56
|
0.75
|
|||||
|
Peak Current
|
Amps
|
5.4
|
10.6
|
15.5
|
20
|
|||||
|
Back E.M.F
|
V/Krpm
|
4.1
|
4.2
|
4.3
|
4.3
|
|||||
|
Torque Constant
|
N.m/A
|
0.039
|
0.04
|
0.041
|
0.041
|
|||||
|
Rotor Inertia
|
g.c㎡
|
24
|
48
|
72
|
96
|
|||||
|
Body Length
|
mm
|
41
|
61
|
81
|
100
|
|||||
|
Weight
|
kg
|
0.3
|
0.45
|
0.65
|
0.8
|
|||||
|
57mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|
||||||
|
Model
|
|
Model
|
|
|
|
|
||||||
|
Specification
|
Unit
|
JK57BLS005
|
JK57BLS01
|
JK57BLS02
|
JK57BLS03
|
JK57BLS04
|
||||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|
||||||
|
Number Of Poles
|
Poles
|
4
|
|
|
|
|
||||||
|
Rated Voltage
|
VDC
|
36
|
|
|
|
|
||||||
|
Rated Speed
|
Rpm
|
4000
|
|
|
|
|
||||||
|
Rated Torque
|
N.m
|
0.055
|
0.11
|
0.22
|
0.33
|
0.44
|
||||||
|
Rated Current
|
Amps
|
1.2
|
2
|
3.6
|
5.3
|
6.8
|
||||||
|
Rated Power
|
W
|
23
|
46
|
92
|
138
|
184
|
||||||
|
Peak Torque
|
N.m
|
0.16
|
0.33
|
0.66
|
1
|
1.32
|
||||||
|
Peak Current
|
Amps
|
3.5
|
6.8
|
11.5
|
15.5
|
20.5
|
||||||
|
Back E.M.F
|
V/Krpm
|
7.8
|
7.7
|
7.4
|
7.3
|
7.1
|
||||||
|
Torque Constant
|
N.m/A
|
0.074
|
0.073
|
0.07
|
0.07
|
0.068
|
||||||
|
Rotor Inertia
|
g.c㎡
|
30
|
75
|
119
|
173
|
230
|
||||||
|
Body Length
|
mm
|
37
|
47
|
67
|
87
|
107
|
||||||
|
Weight
|
Kg
|
0.33
|
0.44
|
0.75
|
1
|
1.25
|
||||||
|
60mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|||||
|
|
|
Model
|
|
|
|
|||||
|
Specification
|
Unit
|
JK60BLS01
|
JK60BLS02
|
JK60BLS03
|
JK60BLS04
|
|||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|||||
|
Number Of Poles
|
Poles
|
8
|
|
|
|
|||||
|
Rated Voltage
|
VDC
|
48
|
|
|
|
|||||
|
Rated Speed
|
Rpm
|
3000
|
|
|
|
|||||
|
Rated Torque
|
N.m
|
0.3
|
0.6
|
0.9
|
1.2
|
|||||
|
Rated Current
|
Amps
|
2.8
|
5.2
|
7.5
|
9.5
|
|||||
|
Rated Power
|
W
|
94
|
188
|
283
|
377
|
|||||
|
Peak Torque
|
N.m
|
0.9
|
1.8
|
2.7
|
3.6
|
|||||
|
Peak Current
|
Amps
|
8.4
|
15.6
|
22.5
|
28.5
|
|||||
|
Back E.M.F
|
V/Krpm
|
12.1
|
12.6
|
12.4
|
13.3
|
|||||
|
Torque Constant
|
N.m/A
|
0.116
|
0.12
|
0.118
|
0.127
|
|||||
|
Rotor Inertia
|
g.c㎡
|
0.24
|
0.48
|
0.72
|
0.96
|
|||||
|
Body Length
|
mm
|
78
|
99
|
120
|
141
|
|||||
|
Weight
|
Kg
|
0.85
|
1.25
|
1.65
|
2.05
|
|||||
|
80mm BLDC MOTOR SPECIFICATION:
|
|
|
|
|
|
|||||
|
|
|
Model
|
|
|
|
|||||
|
Specification
|
Unit
|
JK80BLS01
|
JK80BLS02
|
JK80BLS03
|
JK80BLS04
|
|||||
|
Number Of Phase
|
Phase
|
3
|
|
|
|
|||||
|
Number Of Poles
|
Poles
|
4
|
|
|
|
|||||
|
Rated Voltage
|
VDC
|
48
|
|
|
|
|||||
|
Rated Speed
|
Rpm
|
3000
|
|
|
|
|||||
|
Rated Torque
|
N.m
|
0.35
|
0.7
|
1.05
|
1.4
|
|||||
|
Rated Current
|
Amps
|
3
|
5.5
|
8
|
10.5
|
|||||
|
Rated Power
|
W
|
110
|
220
|
330
|
440
|
|||||
|
Peak Torque
|
N.m
|
1.05
|
2.1
|
3.15
|
4.2
|
|||||
|
Peak Current
|
Amps
|
9
|
16.5
|
24
|
31.5
|
|||||
|
Back E.M.F
|
V/Krpm
|
13.5
|
13.3
|
13.1
|
13
|
|||||
|
Torque Constant
|
N.m/A
|
0.13
|
0.127
|
0.126
|
0.124
|
|||||
|
Rotor Inertia
|
g.c㎡
|
210
|
420
|
630
|
840
|
|||||
|
Body Length
|
mm
|
78
|
98
|
118
|
138
|
|||||
|
Weight
|
Kg
|
1.4
|
2
|
2.6
|
3.2
|
|||||

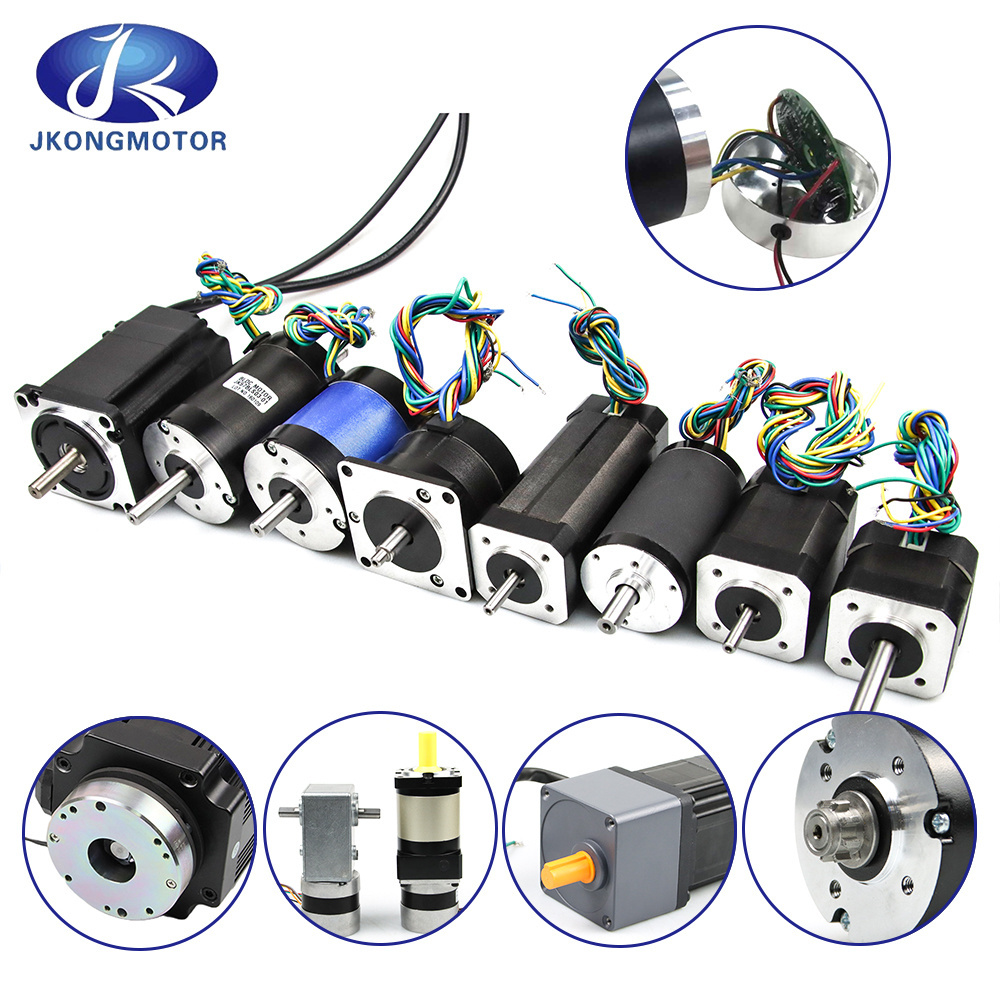

BLDC Motor
1、Various Size:
42mm to 130mm
2、Different Gearbox:
Planetary Gearbox / Worm Gearbox / Eccentric Gearbox
3、Parameters Customized:
Shaft / Flange / Brake / Encoder / Integrated Driver / Cables
4、
Complete and mature drive system support
5、
Without brush,
low interference, long life, low maintenance cost, low noise, smooth operation
BLDC Gear / Brake Motor
1、
Planetary Gearbox
2、
High Precision Planetary Gearbox
3、
Worm Gearbox
4、
Eccentric Gearbox
5、
Encoder / Brake
6、
Integrated Dc Servo Motor
7、
High-precision output
8、
High-performance transmission can achieve high torque transmission, high-precision output, high rigidity and low noise
9、
Small size, compact structure, large load-bearing capacity, and the design itself can also achieve high-precision positioning
BLDC Motor Driver
1、
Including：JKBLD120 / JKBLD300 / JKBLD480 / JKBLD720 / JKBLD750 / JKBLD1100 / JKBLD2200
2、
Suitable for the bldc motor with Hallsensor or without hallsensor
3、Optional for RS232 / RS485 Control
4、
Stable operation and can be appropriately overloaded
5、
Suitable for brushless motors of various specifications
6、
Complete and mature drive system support
7、
Perfect pre-sales, during-sales and after-sales services
Stepper Motor
1、Various Size:
20mm to 130mm
2、Parameters Customized:
Shaft / Flange / Brake / Encoder / Integrated Driver / Cables
Geared / Brake Stepper Motor
1、
Planetary Gearbox /
High Precision Planetary Gearbox /
Worm Gearbox /
Eccentric Gearbox
2、
Encoder / Brake optional
Stepper Motor Driver
1、
Different type for stepper motors from nema 8 to nema 52 stepping motors
2、
Suitable for Hybrid Stepper Motor or Closed Loop Stepping Motor
Linear Screw Motor
1、
Linear Actuators / Linear Guide Rail
2、
Ball Screw / T-Screw...
Integrated Servo Motor
1、
Integrated Dc Servo Motor
2、
Integrated Stepper Motor
3、
Encoder / Brake / Gearbox / Shaft
Brush Dc Motor
1、
From 42mm to 90mm
2、
Encoder / Brake / Gearbox optional
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
