Quick Details
-
Type:
-
Laboratory Thermostatic Devices
-
Keyword:
-

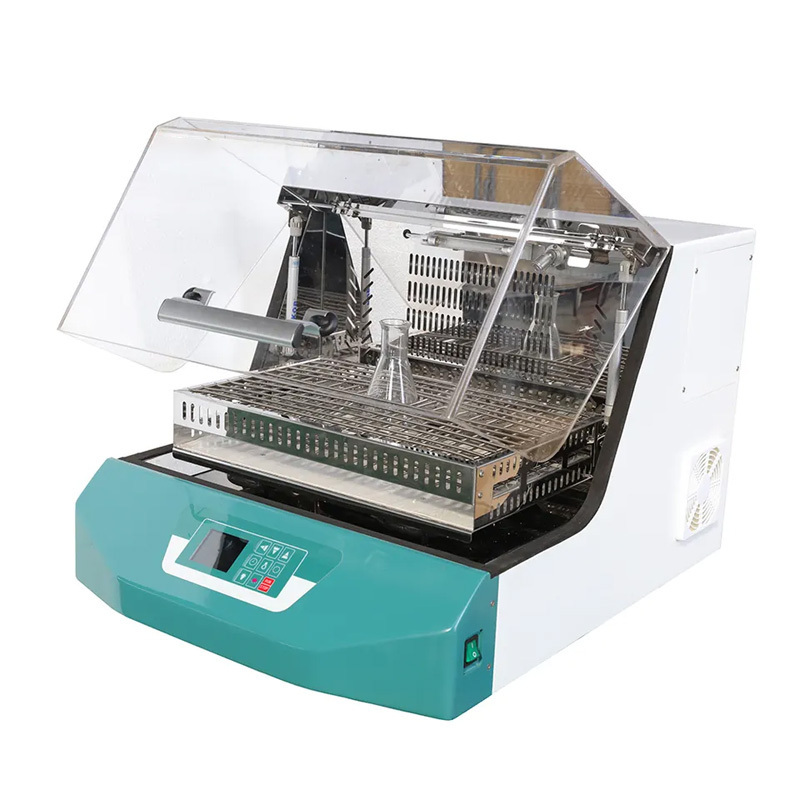

Thermostatic shaking incubator
-
Temperature Range::
-
RT+5~65℃
-
Inner chamber size::
-
455*380*290mm
-
Voltage::
-
200-240V/100-120V
-
Power::
-
600W
-
Rotary speed::
-
30-300rpm
-
Timing::
-
0~9999min
-
Display:
-
LCD
-
Customized:
-
OEM
Quick Details
-
Warranty:
-
other
-
Model Number:
-
FS-50B/70B
-
Place of Origin:
-
China
-
Type:
-
Laboratory Thermostatic Devices
-
Keyword:
-
Thermostatic shaking incubator
-
Temperature Range::
-
RT+5~65℃
-
Inner chamber size::
-
455*380*290mm
-
Voltage::
-
200-240V/100-120V
-
Power::
-
600W
-
Rotary speed::
-
30-300rpm
-
Timing::
-
0~9999min
-
Display:
-
LCD
-
Customized:
-
OEM
Products Description
Characteristics:
1. Large-screen LCD, shows temperature, speed, working time. Menu operation interface, easy to operate.
2. Multi-segment speed, temperature, time control system, a variety of different speed, temperature, time experiment mode can be
set at one time, automatic conversion during operation.
3. Standard UV sterilization, unique air duct breeze circulation, independent over temperature limiter, automatic cut off heating
after over limit temperature.
4. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control.
Adjustable starting speed to prevent the splash of shake flask liquid.
2. Multi-segment speed, temperature, time control system, a variety of different speed, temperature, time experiment mode can be
set at one time, automatic conversion during operation.
3. Standard UV sterilization, unique air duct breeze circulation, independent over temperature limiter, automatic cut off heating
after over limit temperature.
4. Speed control : Intelligent Brushless DC motor, High speed accuracy, Slow start design, Auto lock if speed out of control.
Adjustable starting speed to prevent the splash of shake flask liquid.
|
Model
|
|
|
WGL--50B
|
WGL-70B
|
|||
|
Shaking Mode
|
|
|
Cyclotron Oscillation
|
|
|||
|
Function
|
|
Amplitude
|
Ф20mm
|
|
|||
|
|
|
Temp. Resolution
|
0.1ºC
|
|
|||
|
|
|
Temp. Motion
|
±0.1ºC
|
|
|||
|
|
|
Temp. Uniformity
|
±1ºC
|
|
|||
|
|
|
Temp. Range
|
RT+5~65ºC
|
4~65ºC
|
|||
|
|
|
Rotary Speed
|
30~300rpm
|
30~300rpm
|
|||
|
|
|
Rotary Speed
Precision |
±1rpm
|
|
|||
|
Structure
|
|
Chamber Material
|
Mirror Stainless Steel
|
|
|||
|
|
|
Outer Shell
|
ABS
|
|
|||
|
|
|
Observation Window
Material |
Imported resin
|
|
|||
|
|
|
Thermal Insulation
Material |
Polyurethane
|
|
|||
|
|
|
Cooling System
|
No
|
Yes
|
|||
|
|
|
Coolant
|
No
|
R134a
|
|||
|
|
|
Heater
|
Stainless steel heating tube
|
|
|||
|
|
|
Drive Mode
|
Three-axis level
|
|
|||
|
|
|
Oscillating Plate
|
Spring Wire Rack
|
|
|||
|
|
|
Air Circulation
Mode |
Horizontal convection
|
|
|||
|
|
|
Power Rating
|
0.6kW
|
0.8kW
|
|||
|
Controller
|
|
Temp. Control
Mode |
LCD PID intelligent control
|
|
|||
|
|
|
Cyclotron Control
Mode |
|
|
|||
|
|
|
Setting Mode
|
Automatic changes of
rotation direction |
|
|||
|
|
|
Temp. Display
Mode |
Touch button setting
|
|
|||
|
|
|
Speed Display
Mode |
LCD display
|
|
|||
|
|
|
Timer
|
0~9999min
|
|
|||
|
|
|
Operation Function
|
Fixed value operation,timing
function,bidirectional automatic switchover,auto stop, quick stop start |
|
|||
|
|
|
Temperature Sensor
|
Pt100
|
|
|||
|
|
|
Speed Sensor
|
Hoare
|
|
|||
|
|
|
Gating System
|
Yes
|
|
|||
|
|
|
Additional Function
|
Deviation correction, menu keys
locked, power-off memory |
|
|||
|
Safety Device
|
|
|
over temperature alarm, menu locked,
gating system ,power-off protection , plugging turn protection |
|
|||
|
Specification
|
|
Inner Chamber
Size (W*L*H) (mm) |
455*380*290
|
560*390*320
|
|||
|
|
|
Exterior Size (W*L*H)(mm)
|
500*640*480
|
600*770*500
|
|||
|
|
|
Packing Size (W*L*H)
(mm) |
812*630*670
|
923*730*683
|
|||
|
|
|
Shelf Size(mm)
|
380*320
|
480*315
|
|||
|
|
|
Max capacity of
Shelf for single specification(ml/pc) |
100ml*16/250ml*9
/500ml*4/1000ml*4 |
100ml*24/250ml*12
/500ml*6/1000ml*6 |
|||
|
|
|
Inside Volume
|
50L
|
70L
|
|||
|
|
|
Shelf Load Bearing
|
≤10kg/layer
|
≤15kg/layer
|
|||
|
|
|
Shelf Layer
|
1
|
|
|||
|
|
|
Power Supply (50/60Hz)Current Rating
|
AC220V/2.5A
|
AC220V/3.5A
|
|||
|
|
|
NW/GW (kg)
|
44/55
|
65/85
|
|||
|
Optional
Flask Clip Tray |
|
|
100ml*16/250ml*9
/500ml*4/1000ml*4 |
100ml*24/250ml*12
/500ml*6/1000ml*6 |
|||
