Quick Details
-
Production Capacity:
-
20SETS/MONTH
-
Power:
-
4.5kw
-
Dimension(L*W*H):
-
5500*17000*3000mm
-
Certification:
-
CE/ISO/SGS
-
Product name:
-
automatic four corner cnc machine for welding pvc window
-
Air Pressure:
-
0.5-0.8MPa
-
Air consumption:
-
200L/min
-
Input Voltage:
-
220V 50~60Hz
-
Input Power:
-
4.5KW
-
Welding profile height:
-
20-120mm
-
Welding Width:
-
120mm
-
Welding range:
-
300*3000mm 1800*3000mm
-
Overall size:
-
5500*17000*3000mm
Quick Details
-
Brand Name:
-
CARTER
-
Voltage:
-
220V 50~60Hz
-
Weight:
-
3800kg, 3800kg
-
Production Capacity:
-
20SETS/MONTH
-
Power:
-
4.5kw
-
Dimension(L*W*H):
-
5500*17000*3000mm
-
Certification:
-
CE/ISO/SGS
-
Product name:
-
automatic four corner cnc machine for welding pvc window
-
Air Pressure:
-
0.5-0.8MPa
-
Air consumption:
-
200L/min
-
Input Voltage:
-
220V 50~60Hz
-
Input Power:
-
4.5KW
-
Welding profile height:
-
20-120mm
-
Welding Width:
-
120mm
-
Welding range:
-
300*3000mm 1800*3000mm
-
Overall size:
-
5500*17000*3000mm
F eature

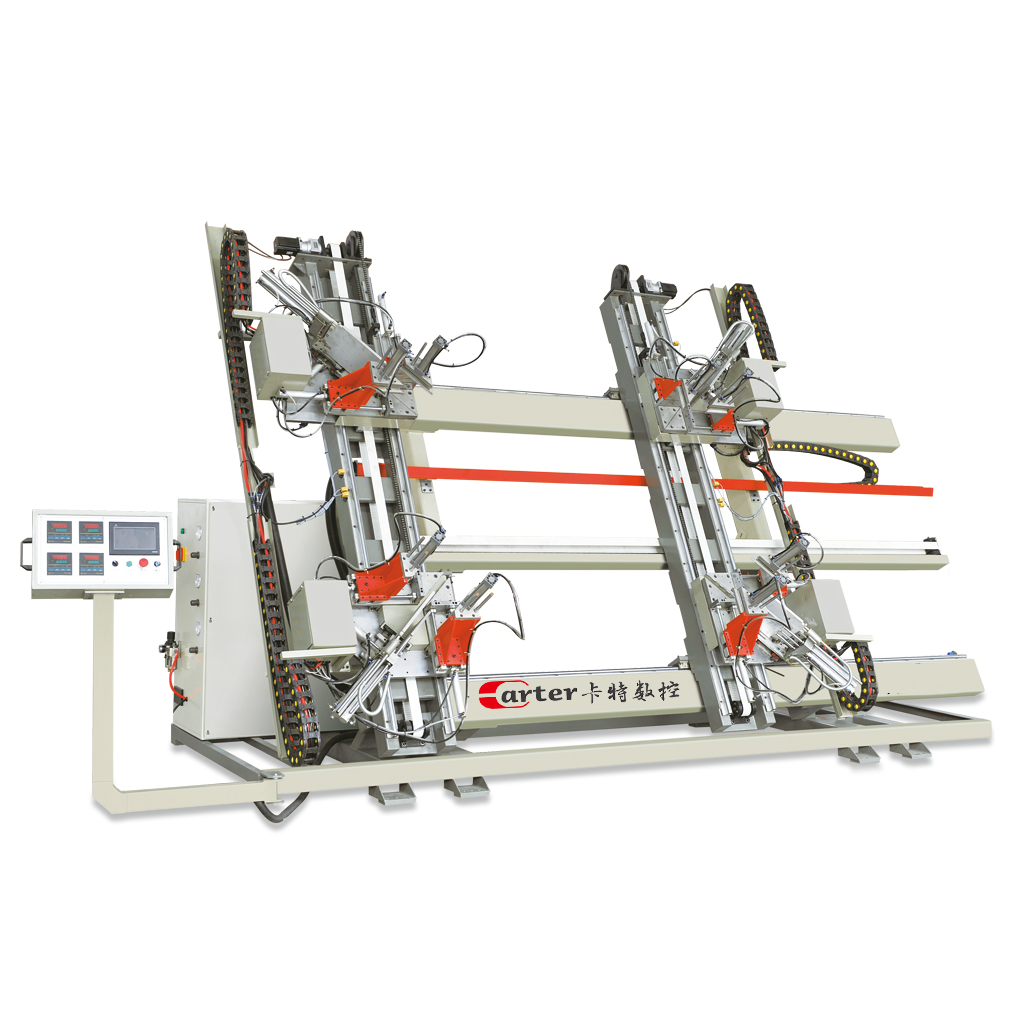

This machine is the special machine for the welding of plastic door & window. The four heads can finish the rectagle welding with one operation, It has the features of advanced technology, durability, easy operation and high effciency, etc. It is pneumatic driving with high accuracy and easy maintenance. The pneumatic system uses imported elements with excellent function and longevity. The control part uses the imported programme controller and the driving system uses the imported motors, which ensures the orientation accuracy and durability.
1. Automatically for rectangular plastic(UPVC/PVC) door and window frame welding.
2. Increased the effective weld height and enhanced rigidity design, high production efficiency.
3. linear bearing motion pair, high precision equipment, stable technical performance.
4. the unique positioning mechanism and a clamping device ensure the welding size precision and stability of shape position precision.
5. adopted the three coated craft route, with profiles positioning and clamping function, effectively ensured the welding finished product size precision and flateness shape and position accuracy
6. Imported Japan Mitsubishi CNC control system
|
Parameter |
|
|
Air Pressure |
0.5~0.8MPa |
|
Air consumption |
20 0L/min |
|
Input Voltage |
220V 50~60Hz or As Customer need |
|
Input Power |
4 .5Kw |
|
Welding profile height |
20-1 2 0mm |
|
Welding Width |
Max 120mm |
|
Welding range |
3 00 x30 00mm 1800x3000mm |
|
Overall size |
55 00× 1700 0× 30 00mm |
|
Weight |
38 00kg |
|
Main accessory |
|
|
Control system |
|
|
PLC |
Taiwan Delta |
|
Solenoid valve |
Sitairui |
|
Cylinder |
Huatong |
|
Motor |
Anhui Sanyang (Best Chinese Motor Brand) |
|
Air Filter Device |
STNC |
|
Electrical Button and Switcher |
Schneider |
|
AC Contactor and Circuit Breaker |
Schneider |
|
Temperature Controller |
Japan Omron |
|
Standard accessory |
|
|
Heat plate |
4 pcs |
|
Teflon cloth |
several |
|
Complete tooling |
1set |
|
Certificate |
1pc |
|
Operation Manual |
1pc |
