Quick Details
-
Marketing Type:
-
New Product 2023
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minderhightech
-
Weight (KG):
-
70
-
Marketing Type:
-
New Product 2023
Product Description

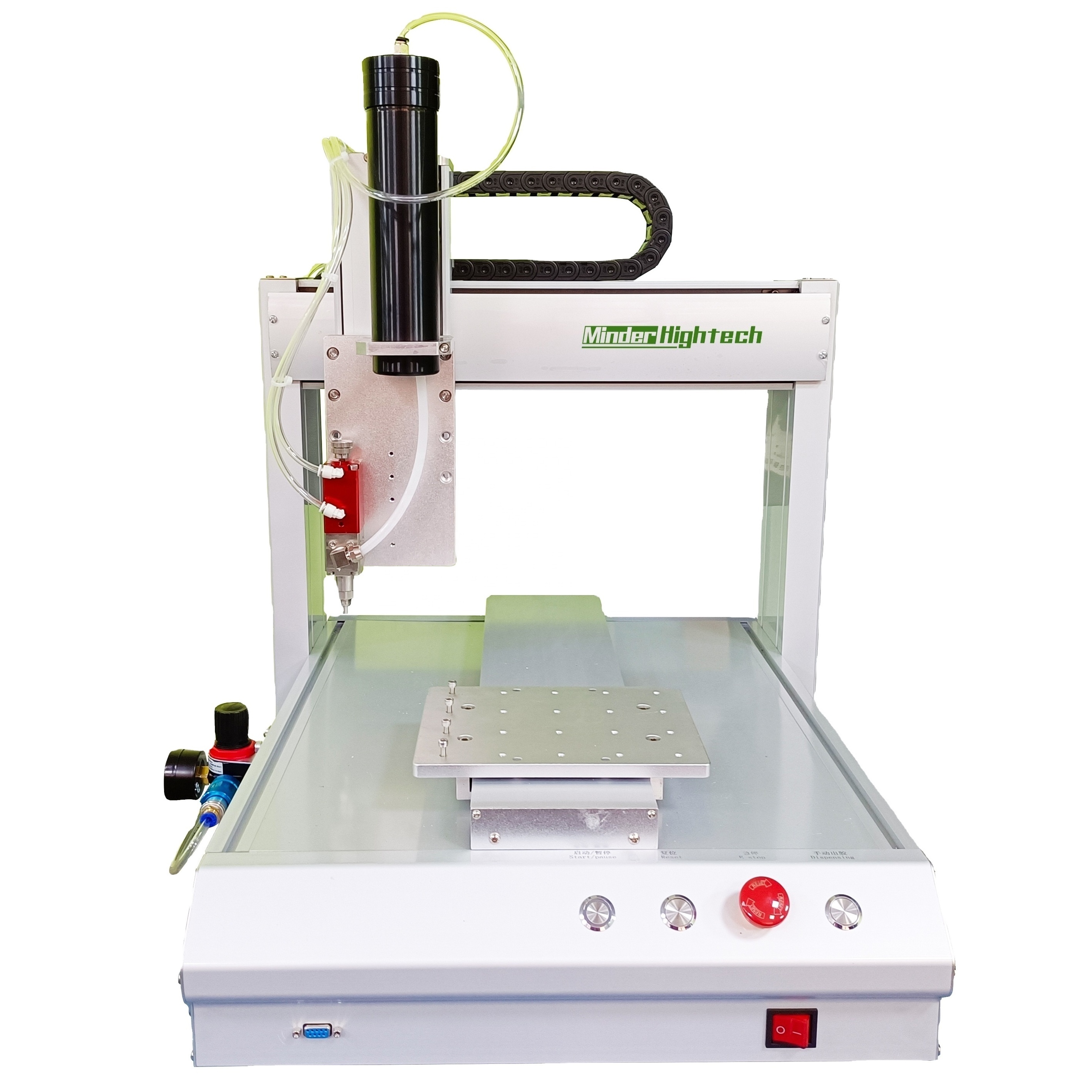

Main features of Automatic dispenser equipment Glue Drop Machine
1.Operation with handheld LCD panel teach box,which is easy to program and learn.
2.Functions of drawing points,lines,surfaces,arc,circle and consecutive interpolation of irregular curves to realize any 3D non planar trajectory path.
3.Excellent teaching function to support array,graphical browsing,three dimensional elliptic,common graphical library
inserting,group editing and so on.
4.MINISD file storage with high speed and 2G capacity can store 999 dispensing process documents.
5.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be set by parameters.
6.With Second special dispensing controller,glue outflow is quite stable without leaking and dripping.
7.The function of automatic gel prevention can effectively prevent glue curing from jamming needle head.
8.Powerful PC compatibility with the Logoshop software can import mainstream design software(such as Auto CAD,Coral Draw,etc.) to generate a variative of file formats(such as,.NC,.AI,.DXF,.JPG,.BMP,scanner,etc.）
9.It is applied to fluid dispensing, such as, UV glue, AB glue,COB(black glue), white glue, EMI conductive glue, silicon, epoxy
resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative and so on.
Specification
|
Model
|
MD-DD-T3311
|
MD-DD-T4411
|
MD-DD-T5511
|
MD-DD-T53311
|
MD-DD-T54411
|
||||
|
Stroke X
|
300mm
|
400mm
|
500mm
|
500mm
|
500mm
|
||||
|
Stroke Y1
|
300mm
|
400mm
|
500mm
|
300mm
|
400mm
|
||||
|
Stroke Y2
|
no
|
no
|
no
|
300mm
|
400mm
|
||||
|
Stroke Z
|
100mm
|
100mm
|
100mm
|
100mm
|
100mm
|
||||
|
Glue capacity
|
300ml-330ml
|
|
|
|
|
||||
|
Driving method
|
stepping motor / servo motor
|
|
|
|
|
||||
|
Applicable viscosity value
|
≤10000cps
|
|
|
|
|
||||
|
Gluing time
|
0.8-5 S / time
|
|
|
|
|
||||
|
Glue amount
|
0.01-5 ml /time
|
|
|
|
|
||||
|
Spit frequency
|
1-250 (times / minute)
|
|
|
|
|
||||
|
Moving method
|
point to point/linear/circle
|
|
|
|
|
||||
|
Programing interface
|
teaching box/PC
|
|
|
|
|
||||
|
Repeat accuracy
|
+-0.02mm
|
|
|
|
|
||||
|
Speed
|
0.1-800mm/sec
|
|
|
|
|
||||
|
Available Graph
|
line/circle/arc/continuous line/3D irregularity line
|
|
|
|
|
||||
|
Program storage
|
100groups/1000points per group
|
|
|
|
|
||||
|
Port
|
RS232
|
|
|
|
|
||||
|
Power
|
AC110V- 240V/50Hz
|
|
|
|
|
||||
|
Air
|
0.5Mpa
|
|
|
|
|
||||
Distinguishing Feature
It runs alternately with a double platform, saving the time for the product to be taken and put.
It is independent of the mold. It is an aluminum profile casting structure with beautiful appearance.
It has a hand-held teaching programmer, which is fast and easy to program.
Its glue speed and glue amount can be set separately.
It is controlled by a high precision stepping motor, and the trail is accurate.
It can finish any shape point glue, such as space point, line, arc, etc.
It contains a variety of glue needles, syringes, glue valves and controllers to meet different requirements.
Applicable Industry
Plastic labels, zipper heads, key chains, bookmarks, key cases, U disk shells, MP3 shells, mobile phone lanyards, mobile phone ornaments, mobile phone holders, mobile phone wipes, wrist straps, silicone bracelets, silicone necklaces, PVC car mats, Refrigerator stickers, mouse pads, coasters, glasses silicone covers, etc., suitable for clothing, shoes and hats, services, electronic appliances, toys, gifts, home, etc.
.
