Quick Details
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
HIG
-
Model Number:
-
1/8"-6"
-
Standard:
-
ISO
-
Usage:
-
Oil Gas Water Industrial
-
Size:
-
1/2' ~ 6'
-
Color:
-
Black
-
Type:
-
Equal,Reducing
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Square
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
HIG
-
Model Number:
-
1/8"-6"
-
Standard:
-
ISO
-
Usage:
-
Oil Gas Water Industrial
-
Size:
-
1/2' ~ 6'
-
Color:
-
Black
-
Type:
-
Equal,Reducing
Product Description
Details Images
Product Paramenters
|

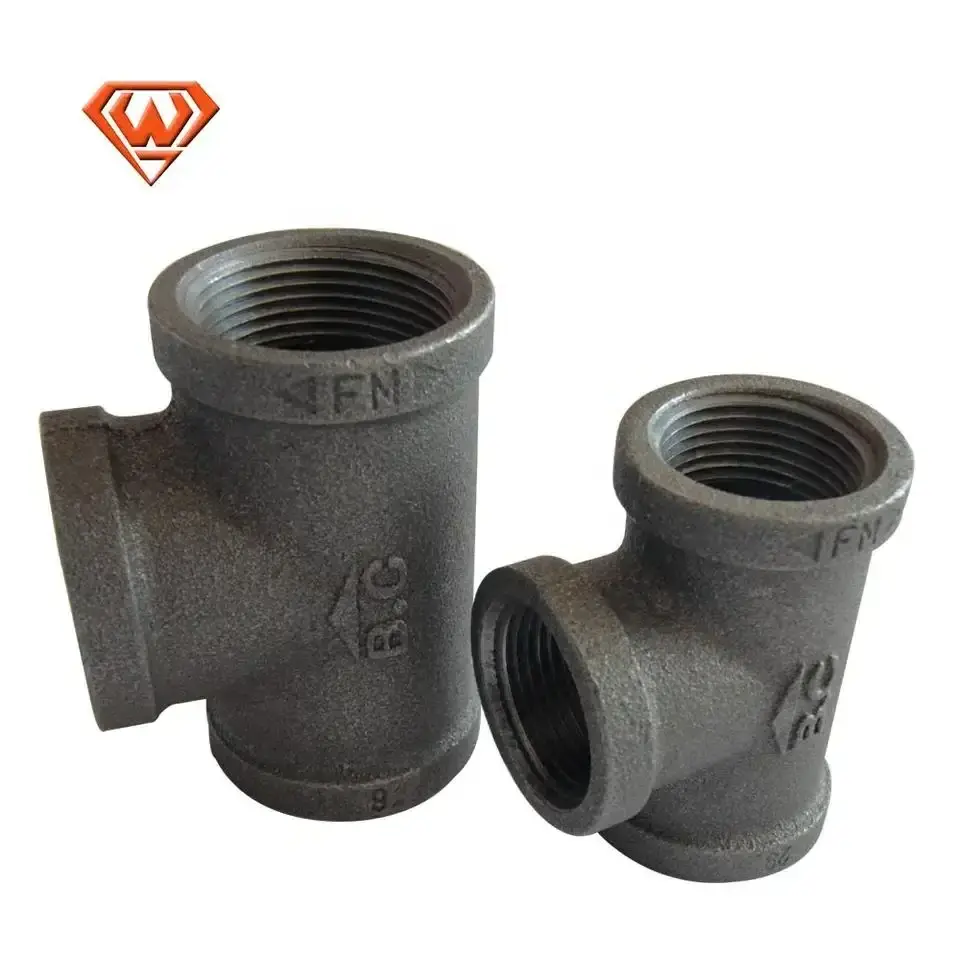

Malleable Iron Pipe Fittings Details
|
|
|
||
|
Material
|
Black heart malleable iron
|
|
||
|
American Standard
|
Threads : ANSI B1.20.1
|
|
||
|
|
Dimension: ASME B 16.3, B16.14. Union: B 16.39
|
|
||
|
British Standard
|
Threads :ISO 7/1
|
|
||
|
|
Dimension: BS EN 10242, BS 143&1256
|
|
||
|
DIN Standard
|
Threads : ISO 7/1
|
|
||
|
|
Dimension : ISO 49, DIN2950, EN10242
|
|
||
|
Chemical property
|
(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65),
(P% <0.1), (S% <0.2%) |
|
||
|
Physical property
|
Tensile strength >=350MPa, Elongation >=10%,
Hardness <=150HB |
|
||
|
Testing pressure
|
2.5MPa, 100% test before shipment
|
|
||
|
Working pressure
|
1.6MPa
|
|
||
|
Type
|
Banded without ribs,Beaded with ribs,Beaded without ribs
|
|
||
|
Surface
|
Ø Galvanized
|
|
||
|
|
Ø Normal black/Shining black
|
|
||
|
Series
|
Heavy, standard, medium, light
|
|
||
|
Certificate
|
BSI, ANAB, ISO9001,FM
|
|
||
|
Applications
|
Suitable for Pipe lines connect of steam, air, gas, oil and so on.
|
|
||
|
Buyer’s drawings or designs are available.
|
|
|
||
|
Package
|
1. Cartons without pallets. 2. Cartons with pallets.
|
|
||
|
|
3. Double woven bags Or as buyer’s requirements.
|
|
||
|
Delivery detail
|
|
|
||
|
According to the quantities and specifications of each order.
|
|
|
||
|
Normal delivery time is from 30 to 45 days after receiving the deposit.
|
|
|
||
