Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TENTAIR
-
Dimension(L*W*H):
-
955x1580x1240mm
-
Weight (KG):
-
355 KG
Quick Details
-
Type:
-
Chiller
-
Mounting:
-
Other
-
Airflow:
-
6000m³/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TENTAIR
-
Dimension(L*W*H):
-
955x1580x1240mm
-
Weight (KG):
-
355 KG
Overview

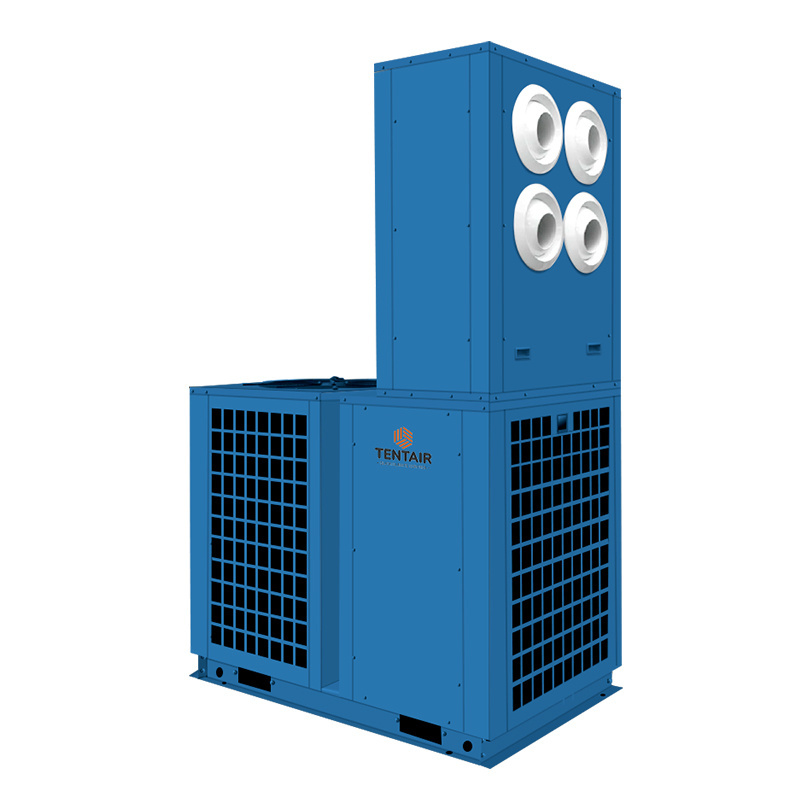

Tentair Tent Package A/Cs are heavy duty self-contained package for commercial usage. These units are designed and manufactured to meet the requirement of air conditioning for big tents, marquees and temporary buildings.
Those units are assembled and fully charged with refrigerant in the factory. Each unit is 100% tested before dispatch and it's ready for installation. All that is required on site is to put on necessary QuickAir kit and plug the power.
--- Self-contained package design for Quick Installation
--- Industrial plug & socket for Quick Power Connect
--- Diverse type of air supply kit for QuickAir Supply
--- Multi-functional LCD wire controller for EasyControl
--- Optional QuickMove kit for Quick transportation
|
Tentair Model
|
|
TPA35CSA-XP
|
TPA35CSA-XP
|
|
|
General
|
Refrigerant
|
Eco-R410A
|
Eco-R410A
|
|
|
|
Power Supply
|
380/ 3/ 50
|
380/ 3/ 50
|
|
|
|
Function Mode
|
Cooling only
|
Cooling & Heating
|
|
|
|
Climate Condition
|
T1 (Max. 48℃)
|
T1 (Max. 48℃)
|
|
|
Performance
|
Cooling Capacity
|
35.0kw (120,000Btu/hr)
|
35.0kw (120,000 Btu/hr)
|
|
|
|
Heating Capacity
|
n/a
|
130,000 Btu/hr
|
|
|
|
Supply Air Volume
|
6000m³/h (2941CFM)
|
6000m³/h (3529CFM)
|
|
|
|
Max. Air Distance
|
20.0m
|
20.0m
|
|
|
|
Applied Area
|
100~150m²
|
100-150m²
|
|
|
|
Noise Level
|
63dB(A)
|
63dB(A)
|
|
|
Electrical
|
Rated Input
|
12.4kw
|
12.4kw
|
|
|
|
Rated Current
|
22.2A
|
22.2A
|
|
|
|
Max. Current
|
32.0A
|
32.0A
|
|
|
|
Power Cable
|
5x10mm²
|
5x10mm²
|
|
|
Physical
|
Unit Dimension (W x D x H)
|
955x1580x1240
|
955x1580x1240
|
|
|
|
Unit Weight
|
355kg
|
365kg
|
|
