Quick Details
-
Application:
-
Walkway, Floor, Trench Drainage Cover, Platform
-
Design Style:
-
Industrial
-
Place of Origin:
-
Sichuan, China, Sichuan China
-
Brand Name:
-
LanFan
-
Model Number:
-
LF-SG
-
Chemical Composition:
-
Metal
-
Main Materials:
-
Carbon steel, aluminum, stainless steel
-
Surface Treatment:
-
Galvanized, Painted, No Finish, Pickling, Electrochemical Polishing
-
Manufacturing Methods:
-
Welded Grating, Dovetail Pressure Locked, Swaged Pressure Locked.
-
Bearing Bar Type:
-
Flat Bar Type, Serrated Bar Type, I-Bar Type
-
Common Bearing Bar Spacing:
-
7/16", 1/2", 11/16", 15/16", 19/16" in 1/16" increments.
-
Common Cross Bar Spacing:
-
2", 4" in 1" increment.
-
Bearing Bar Depth:
-
3/4" to 7".
-
Bearing Bar Thickness:
-
1/8" to 1/2".
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Walkway, Floor, Trench Drainage Cover, Platform
-
Design Style:
-
Industrial
-
Place of Origin:
-
Sichuan, China, Sichuan China
-
Brand Name:
-
LanFan
-
Model Number:
-
LF-SG
-
Chemical Composition:
-
Metal
-
Main Materials:
-
Carbon steel, aluminum, stainless steel
-
Surface Treatment:
-
Galvanized, Painted, No Finish, Pickling, Electrochemical Polishing
-
Manufacturing Methods:
-
Welded Grating, Dovetail Pressure Locked, Swaged Pressure Locked.
-
Bearing Bar Type:
-
Flat Bar Type, Serrated Bar Type, I-Bar Type
-
Common Bearing Bar Spacing:
-
7/16", 1/2", 11/16", 15/16", 19/16" in 1/16" increments.
-
Common Cross Bar Spacing:
-
2", 4" in 1" increment.
-
Bearing Bar Depth:
-
3/4" to 7".
-
Bearing Bar Thickness:
-
1/8" to 1/2".
Rain Water Drainage Trench Cover Stainless Steel Floor Drain With Grating Sheet Hot Dip Galvanized Metal Steel Grating

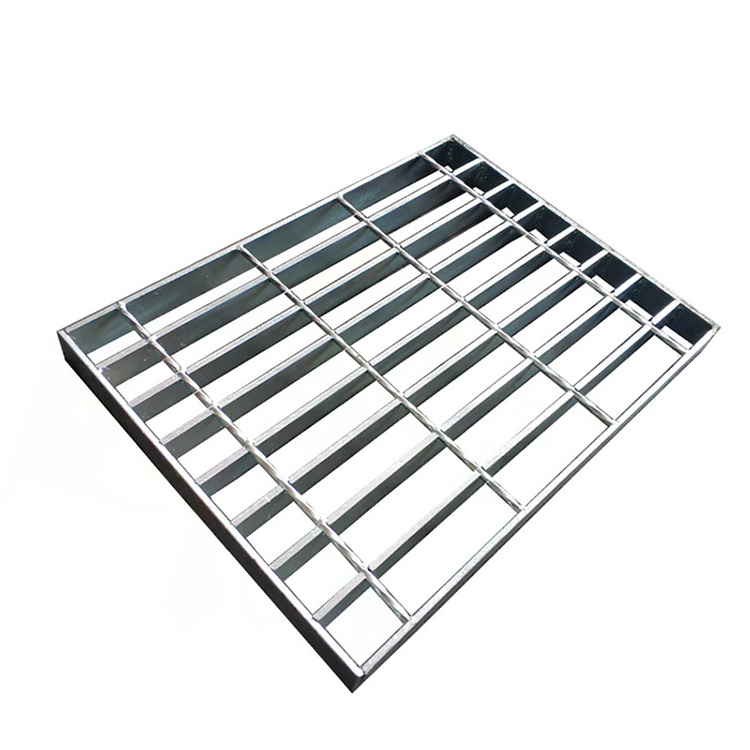

Steel Grating
is also known as the mesh grid, is generally made of carbon steel, and the appearance of hot-dip galvanized can prevent oxidation. It can also be made of stainless steel. Steel grid plate with ventilation, lighting, heat dissipation, anti-slip, explosion-proof and other properties. There are more than 200 specification varieties (according to different use environment, the surface can be different protection treatment), which is widely used in various factories and engineering projects.
| Learn more about the main components of Steel Grating | |
| Span | Total span |
| Width | Panel width |
| Bearing Bars | Load carrying main element |
| Bearing Bars Spacing | Measure from center-to-center of the bearing bars in 1/16″ increments. Standard spacing for industrial flooring is 19/16″(1-3/16″) on center. Other popular spacings are 15/16″, 11/16″, 1/2″, and 7/16″ on center |
| Bearing Bars Depth | Ranges from 3/4″ to 7″ depending on anticipated loads |
| Bearing Bars Thickness | Ranges from 1/8″ to 1/2″ depending on anticipated loads |
| Cross Bars | Used to Secure the position of bearing bars |
| Cross Bar Spacing | Measured from center-to-center of cross bars in 1″ increments. Standard spacing is 4″ or 2″ on center. |
Q:Are you a factory or a trader?
A:We are factory .
Q:Can you offer free samples?
A:Sure, but usually the customer has to pay for freight.
Q:Can you customize the product?
A:sure, you provide instructions, drawings, can customize the product what you want.
Q:What about the delivery time?
A:It usually takes around 15-20 days, with customized products taking even more time.
