Quick Details
-
Brand Name:
-
TOPVALL
-
Certificate:
-
CE
-
MATERIAL:
-
ROHS Nylon
-
Work pressure:
-
0.01MPa~1.5MPa
-
Life:
-
5-10 Years
-
Colour:
-
customized
-
Connection:
-
Male Thread
-
Item Name:
-
Float valve
-
Water flow:
-
High flow 200L/Min-600L/Min
-
Water level:
-
Adjustrable as need
Quick Details
-
Port Size:
-
50MM
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
TB40
-
Brand Name:
-
TOPVALL
-
Certificate:
-
CE
-
MATERIAL:
-
ROHS Nylon
-
Work pressure:
-
0.01MPa~1.5MPa
-
Life:
-
5-10 Years
-
Colour:
-
customized
-
Connection:
-
Male Thread
-
Item Name:
-
Float valve
-
Water flow:
-
High flow 200L/Min-600L/Min
-
Water level:
-
Adjustrable as need

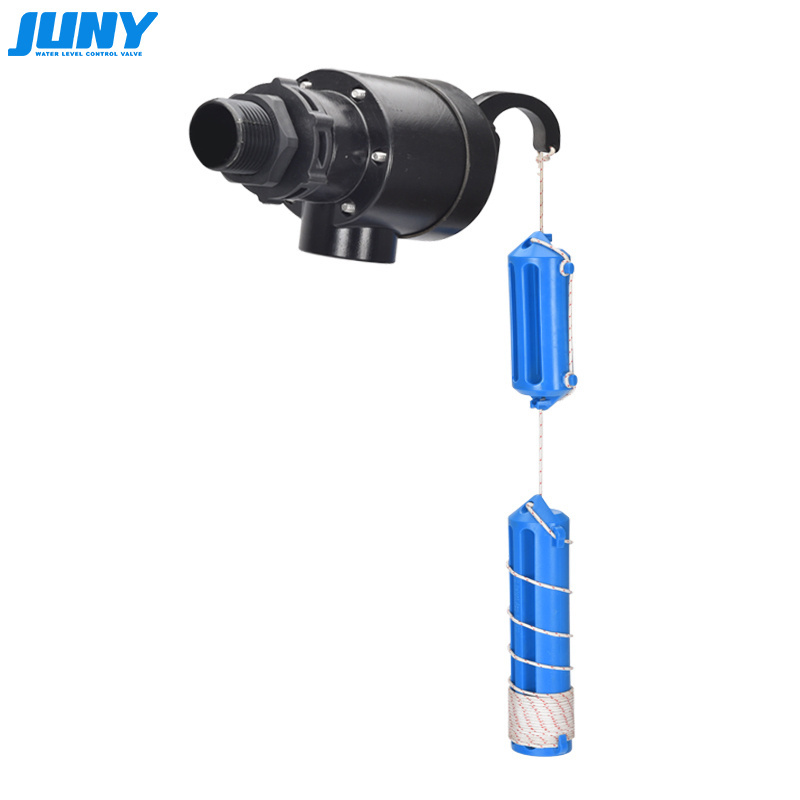

The TANKBUDDY VALVE is patented product.It is ideal for water tanks which are filled by running water or a pressure system controlled by water pump.The valve gives a level difference which is adjustable from 50mm up to 2.5m to minimise starting and stopping of running water or the pump system.Level difference accept Customization
| MODEL | SIZE | FLOW | WORK PRESSURE | ADJUSTABLE WATER LEVEL |
| TB15 | 1/2" | 200L/MIN |
1-10Mpa
1-10Bar 15-150PSI |
50MM up to 2.5M
CUSTOMIZED |
| TB20 | 3/4" | |||
| TB25 | 1" | |||
| TB32 | 1.25" | |||
| TB40 | 1.5" | 600L/MIN | ||
| TB50 | 2" | |||
| TB65 | 2.5" | |||
| TB80 | 3" |
· Water tank,water tower, water pool,Irrigation,animal drinking, Spray equipment,swimming pool etc.
· High flow. Ideal for all makes and models of tanks.
· Available inlet sizes. Keeps pump operation to a minimum .
· Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m .
· Valve Seal Access System for quick access to valve seal .
· The valve mounts at the top-side of the tank. It fits easily through a thin walled tank or screws into a threaded
tankinlet.
· As the tank empties, the float travels down the corduntil it hits the level stopper. The valve then opens
immediately to give a full flow.
·
As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster.
This lifts the arm and the valve shuts down.
· Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump
off at a pressure at least one bar above the running pressure.
