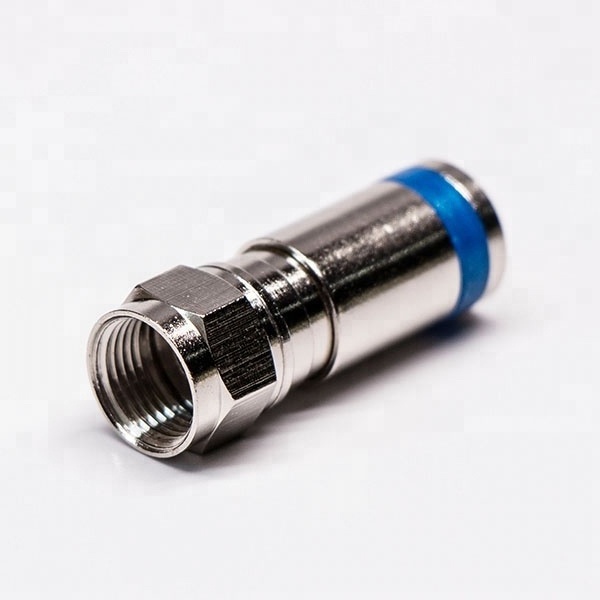

75ohm Coax Straight Cable RG58 RG6 Male F-Type Compression Connector

75ohm Coax Straight Cable RG58 RG6 Male F-Type Compression Connector

FOB Reference Price: Get Latest Price

≥50 Pieces

US $2.99

≥1000 Pieces

US $0.79

≥100000 Pieces

US $0.17

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Dosin

Model Number:: DOSIN-803-0114

Body Type:: RG6 F Type Compression Connector

Attachment Type:: Crimp/Solder/Compression

Impedance:: 75 Ohm

75 Ohm Frequency Range:: DC-1GHz

Material:: Brass, POM

Finish Selection:: Nickel/Gold/Silver

Insulation Selection:: POM

Product name:: Straight Male Cable RG58 RG6 F Type Compression Connector

Quick Details

Type:: F

Application:: RF

Gender:: Male

Place of Origin:: Guangdong, China

Brand Name:: Dosin

Model Number:: DOSIN-803-0114

Body Type:: RG6 F Type Compression Connector

Attachment Type:: Crimp/Solder/Compression

Impedance:: 75 Ohm

75 Ohm Frequency Range:: DC-1GHz

Material:: Brass, POM

Finish Selection:: Nickel/Gold/Silver

Insulation Selection:: POM

Product name:: Straight Male Cable RG58 RG6 F Type Compression Connector

For the Specific Price of Other Models,

Please Contact Our Customer Service >>

Product Description

Full Series : RF Connectors

All types of RF connectors from OEM Manufacturer in China

Product Description

F Type Connector Used for 75Ω Cable Assign System, Especially CATV, Broadcast Television Network. It Can Already Be Used for Having Impedance to Mate the Occasion Required, Can Be Used in Not Mating the Occasion Too.

Product Features

-Great security and tamper protection performance;
-Simple structure to make it in competitive price;
-Less than 30 seconds required for wiring, easy to install;
-Can be visually inspect even after connection.

Electrical Characteristics
Impedance	75 ohm
Frequency Range	0~1Ghz
VSWR	Straight Type ≤ 1.2max / R/A type ≤ 1.3max
Withstanding Voltage	500 V rms
Working Voltage	170 V rms
Center Contact Resistance	≤ 10 MΩ
Outer Contact Resistance	≤ 5 MΩ
Insultation Resistance	≥ 1000 MΩ
RF Leakage	100dB min @1GHz
Mechanical Characteristics
Coupling	3/8-32 thread
Cable Retention	20 lbs min.
Durability(mating)	≥ 500 cycles
Environmental Characteristics
Temprature Range	-40°C ~ +60°C
Materials & Finish
Body	Brass with Nickel plated
Insulator	Natural Delrin
Contact Pin	Brass with Gold plated
Ferrule	Copper with Nickel plated

If You Still Not Found a Suitable Product, Please Contact Us>>

Applications

Head End Equipment;Set Top Boxes;CATV;High Speed Cable Modems;CIMs;Hybrid Fiber Coax Networks

Certifications

Our Factory

Dongguan Dosin Precision Industry Co., Ltd.

Was established in 2008 , and specializes in design, development and manufacturing in RF Coaxial Connectors ,RF cable assemblies, RF adapters, antenna series, Fiber optical cable assemblies and other custom made connectors.

Our company covers more than 20000 square meters, with well-equipped workshop, automatic production lines, andhundreds of employers. Since our establishment, our products and services have received a good reputation home and abroad. So far,we have built business relations in many countries, 70% products being sold to all over the world.

Our company adheres the business philology of "hardworking, pragmatic, innovation, excellence" and values "trust, quality,service, Thanksgiving" to make constant effort to prefect our products. The company is ISO9001 certificated,and the products are RoHS , REACH compliant. If you are interested in our company or our products, please contact us. We will be here to response youthe first around.

We promise you the top-quality and the most cost-effective products and services. Looking forward to cooperate with you!

Stamping Workshop

Insert Metal Plate between the top and bottom mold, and then apply pressure to cut the plate. Ideal for mass production as high production capacity with only one die mold.

Die Casting Workshop

Forcing the molten metal under high pressure into a mold cavity. In DOSIN, this workshop is main for die casting moulding to make Zinc Alloy or Aluminium Alloy parts.

Injection Moulding Workshop

Injection moulding requires to transfer the polymeric material in powder or granule form from a feed hopper to a heated barrel. And then the plastic melted and injected into a mould. This process is automated, so the production capacity is high.

Lathe Turning

Lathe is used to remove unwanted material from a cylindrical workpieces by machine tool. We used lathe to produce copper parts and insulators (like Teflon). No mould required for this process. The production capactity limited by products' structure and quantity of machine.
