Quick Details
-
Weight:
-
120 KG
-
Product name:
-
uv DTF printer
-
RIP software:
-
Original Maintop
-
Ink colors:
-
Varnish+White+CMYK
-
Ink:
-
uv ink
-
Keyword:
-
UV DTF Printer
-
Printhead:
-
2 pcs DX8 dx10 dx11 xp600 Print Heads
-
Printing Size:
-
30*50cm
-
Media Type:
-
flat and round medias
-
Print height:
-
15cm/5.9 Inches
-
uv lamp type:
-
Water circle cooling uv system
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
dosign
-
Dimensions(L*W*H):
-
1150*950*850mm
-
Weight:
-
120 KG
-
Product name:
-
uv DTF printer
-
RIP software:
-
Original Maintop
-
Ink colors:
-
Varnish+White+CMYK
-
Ink:
-
uv ink
-
Keyword:
-
UV DTF Printer
-
Printhead:
-
2 pcs DX8 dx10 dx11 xp600 Print Heads
-
Printing Size:
-
30*50cm
-
Media Type:
-
flat and round medias
-
Print height:
-
15cm/5.9 Inches
-
uv lamp type:
-
Water circle cooling uv system
Product Description

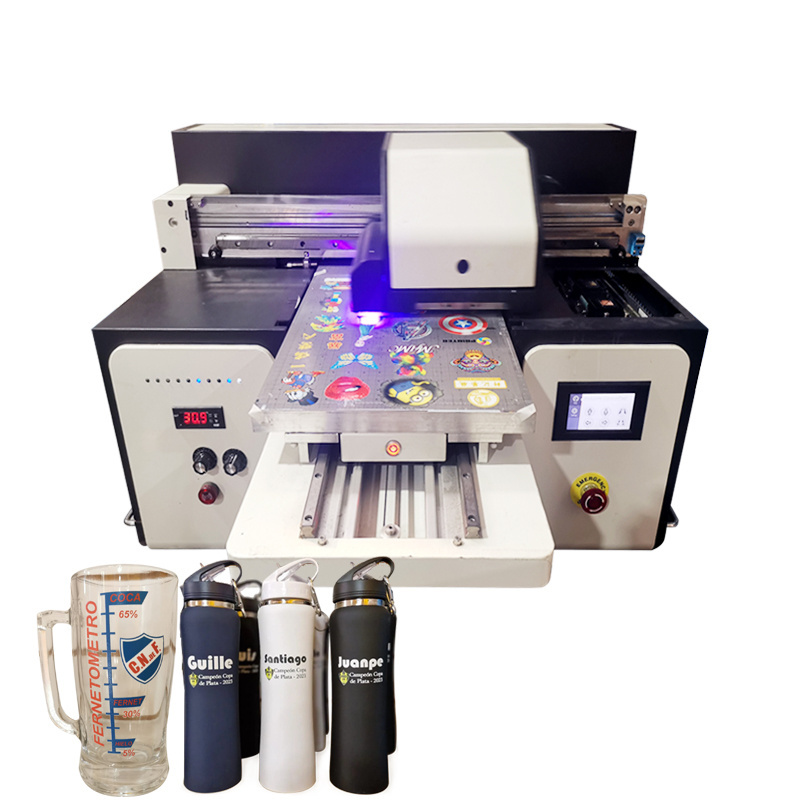

A3 xp600 DX8 double heads uv led varnish digital flatbed uv printer with 3D embossing effect
New launched A3 Size UV Printer Highlights:
1: Smart printing size 30*50cm space save and low investment to start printing business
2: Adopt 2 pieces XP600 / TX800 Printheads cheap printheads maintenance cost
3: 2 Print heads can print CMYK+White+Varnish at one pass ink output
4: Honeycomb suction down platform and HIWIN Linear guide ensure high quality printing and durable printing machines
5: Dual led uv lamps with water circulation cooling method more efficient and longer lifespan up to 20000 Hours
6: New trend for pet film dtf printing
Specification
|
Model
|
DS-A3U-02
|
|
Printing size
|
30*50cm
|
|
Media thickness
|
15cm
|
|
Table
|
Aluminum alloy Air Vacuum down suction platform adsorption table
|
|
Print head
|
2 Pieces TX800 / xp600 for option
|
|
Dryer
|
2 pieces water circulation cooling UV Lamp during
|
|
Ink type
|
UV Ink
|
|
Color
|
CMYK+White+Varnish print at the same time
|
|
|
Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper,metal, wood, porcelain, PVC, ABS, acrylic,
aluminum, iron sheet, ceramic tile,glass, marble, granite, paperboard, PET Film etc |
|
Software
|
Original MainTop
|
|
Linear rail guide
|
TaiWan HiWin linear guide
|
|
Motor
|
Leadshine SERVO Motor
|
|
Driving power
|
110 V/ 220 V. 50HZ/60HZ
|
|
Power consumption
|
120W/ Hour.
|
|
Ink consumption
|
15 ML/SQM.
|
|
Operating system
|
Windows XP/ME/Vista/Win7/Win10
|
|
Dimensions(L*W*H)
|
1150*950*850mm
|
|
Weight
|
120KGs
|
Details Images
Printed Samples
Why Choose Us
Customers' Gallery
FAQ
Q1: What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal,
ceramic, glass, textile and fabrics etc.
Q2: Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3: Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4: Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5: How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6: What about the warranty?
A:We have 12 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7: What's the printing cost?
A:Usually, 1 square meter need cost about $1 printing cost with our good quality ink.
Q8: Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
