Quick Details
-
Chip Material:
-
INGAN
-
Color Temperature(CCT):
-
Dream color RGB WS2812B V5
-
Input Voltage(V):
-
5V
-
Product Weight（kg）:
-
0.001
-
Luminous Intensity:
-
mcd
-
Luminous Flux(lm):
-
high lumens
-
Optical Attenuation(%):
-
0.01
-
Power:
-
0.24W
-
Power Dissipation:
-
240
-
Viewing Angle(°):
-
120
-
Color Rendering Index(Ra):
-
N/A
-
Color Temperature:
-
Programmable dream color addressable R G B
-
Operating Temperature(℃):
-
-30 - 65
-
Storage Temperature(℃):
-
-40 - 65
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shiningopto
-
Forward Voltage:
-
DC 5V
-
Wavelength:
-
Red: 620nm; Green: 520nm; Blue: 460nm
-
Pin qty:
-
4 pins
-
WS 2812 LED IC Type:
-
WS2811 built-in
-
LED surface color:
-
White or Black version available
-
Warranty:
-
2 years
-
Chip:
-
Sanan / Taiwan Epistar or others
-
Lifespan:
-
50000 hours
-
Application:
-
LED strip, LED dot matrix, car ring, flexible panel light.
Quick Details
-
Warranty(Year):
-
2-Year
-
Support Dimmer:
-
Yes
-
Luminous Efficacy(lm/w):
-
30
-
Chip Material:
-
INGAN
-
Color Temperature(CCT):
-
Dream color RGB WS2812B V5
-
Input Voltage(V):
-
5V
-
Product Weight（kg）:
-
0.001
-
Luminous Intensity:
-
mcd
-
Luminous Flux(lm):
-
high lumens
-
Optical Attenuation(%):
-
0.01
-
Power:
-
0.24W
-
Power Dissipation:
-
240
-
Viewing Angle(°):
-
120
-
Color Rendering Index(Ra):
-
N/A
-
Color Temperature:
-
Programmable dream color addressable R G B
-
Operating Temperature(℃):
-
-30 - 65
-
Storage Temperature(℃):
-
-40 - 65
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shiningopto
-
Forward Voltage:
-
DC 5V
-
Wavelength:
-
Red: 620nm; Green: 520nm; Blue: 460nm
-
Pin qty:
-
4 pins
-
WS 2812 LED IC Type:
-
WS2811 built-in
-
LED surface color:
-
White or Black version available
-
Warranty:
-
2 years
-
Chip:
-
Sanan / Taiwan Epistar or others
-
Lifespan:
-
50000 hours
-
Application:
-
LED strip, LED dot matrix, car ring, flexible panel light.

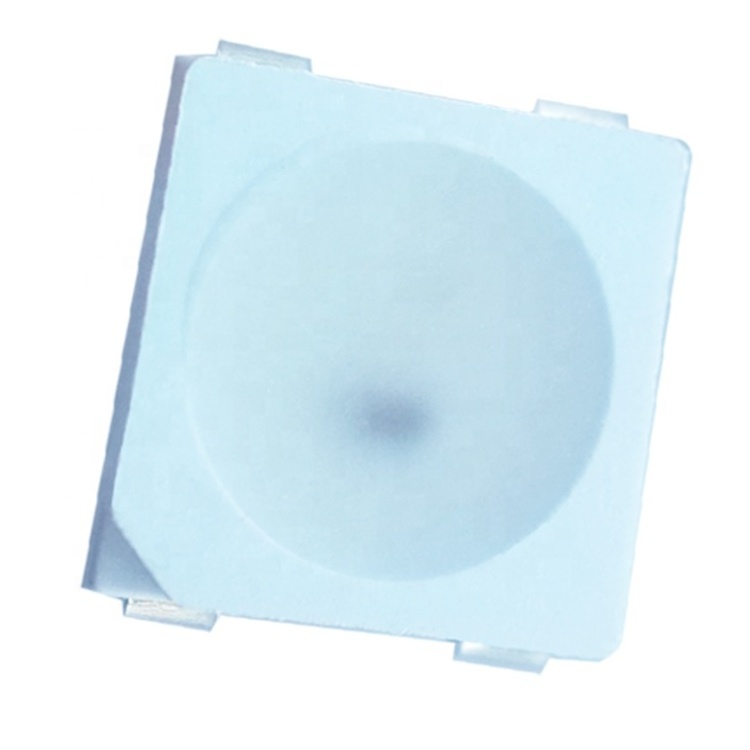

Addressable WS2812 SMD 5050 5V RGB WS2812B-V5 LED Chip For Strip Lighting With Programmable IC WS2811 Embedded DC5V Diodo
Product name: top view RGB addressable WS2812B-V5 5050SMD LED.
| Specifications of WS2812B V5 version | |
| LED package type | 5050 SMD LED |
| LED size | L 5.4*W 5.0*H 1.57 mm |
| Emitting color | Addressable magic color RGB |
| Brightness | Red: 300-500 MCD, Green: 600-1000 MCD, Blue: 200-300 MCD. |
| Working current | Red/Green/Blue 12mA |
| Forward voltage | DC 5volts |
| Power | 0.24 Watt. |
| Wavelength | B: 460-475nm, R: 620-630nm, G: 515-530 nm |
| LED top surface color | white / black, two choices |
| Warranty | Two years |
| Packing | 1000 pieces per reel in an anti-static foiled bag |
Competitive Advantages of our LEDs:
- Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.
- Professional engineers and experienced workers.
- Short delivery time, normally only 1-7 working days.
- Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
- Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 5050, 3030 , 3535 , 1-5W high power LED , 1-2000W integrated LED / COB LED, Diode etc.
Our Services:
- Reply your inquiry in 24 working hours
- Well-trained and experienced staffs to answer all your inquiries in fluent English.
- Strict quality control procedures before shipment.
- Customized design is available.OME and ODM are welcomed
- Delivery the goods to our customer all over the world with speed and precision.
