Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
BAYM
-
Output:
-
1XSPDT; 1A/AC1;250VAC/24VDC
-
Supply terminals:
-
A1-A2
-
Voltage range:
-
AC/DC24-240V(50-60Hz)
-
Burden:
-
max.2VA
-
Time ranges:
-
-15%;+10%
-
Interelectrode voltage:
-
max.AC10V
-
Interelectrode current:
-
AC<0.1mA
-
Response time:
-
max.400ms
-
Cable length:
-
max.100m
-
Min.breaking capacity DC:
-
500mW
-
Output indication:
-
red LED
Quick Details
-
Mounting Type:
-
Wire
-
Description:
-
control of ordinary purified water or sewage water, Liquid Level Sensor
-
Model Number:
-
TBL7-B1
-
Place of Origin:
-
China
-
Brand Name:
-
BAYM
-
Output:
-
1XSPDT; 1A/AC1;250VAC/24VDC
-
Supply terminals:
-
A1-A2
-
Voltage range:
-
AC/DC24-240V(50-60Hz)
-
Burden:
-
max.2VA
-
Time ranges:
-
-15%;+10%
-
Interelectrode voltage:
-
max.AC10V
-
Interelectrode current:
-
AC<0.1mA
-
Response time:
-
max.400ms
-
Cable length:
-
max.100m
-
Min.breaking capacity DC:
-
500mW
-
Output indication:
-
red LED

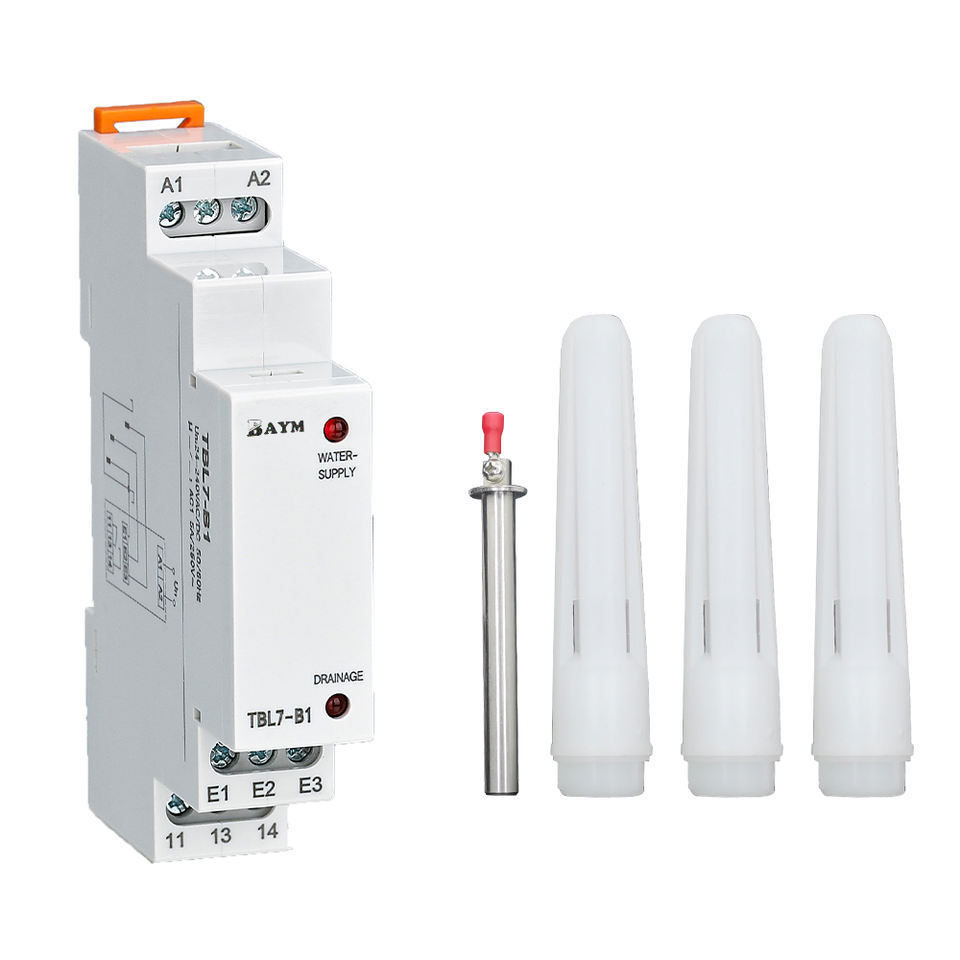

* TBL7-B1 For control of ordinary purified water or sewage water, such as water tank, and water pond.water pool etc.
* Realization of a wide range of power supply: AC/DC24-240V 50/60Hz
* Relay status is indicated by LED
* 1-MODULE18mm.DIN railmounting
* Realization of a wide range of power supply: AC/DC24-240V 50/60Hz
* Relay status is indicated by LED
* 1-MODULE18mm.DIN railmounting
Mechanical life: 1X 10000000
Electrical life(AC1):1X 1000000
Operating temperature:20°C to+55°C(4°F to 131°F)
Storage temperature:- 35°C to+75°C(-22°F to 167°F)
Mounting/DIN rail:Din rail EN/IEC 60715
Protection degree:IP20
Operating position:any
Pollution degree:2
Max. cable (size) mm2: solid wire max.1x2.5 or 2x1.5/with sleeve max.1x2.5(AWG12)
Dimensions:95.5x18x64mm
Weight:W240-96g,A230-95g
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
