Quick Details
-
Product name:
-
Dispensing Valve
-
Application:
-
Building Material Shops
-
Function:
-
Multifunctional
-
After-sales Service Provided:
-
Video Technical Support
-
Model:
-
LDV-3131
-
Shipping:
-
DHL.TNT.FedEx.UPS.EMS
-
Certification:
-
CE ROHS
-
Payment terms:
-
T/T
-
Packing:
-
Wodden Case
-
MOQ:
-
1 Set
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
China Brand
-
Weight (KG):
-
2
-
Product name:
-
Dispensing Valve
-
Application:
-
Building Material Shops
-
Function:
-
Multifunctional
-
After-sales Service Provided:
-
Video Technical Support
-
Model:
-
LDV-3131
-
Shipping:
-
DHL.TNT.FedEx.UPS.EMS
-
Certification:
-
CE ROHS
-
Payment terms:
-
T/T
-
Packing:
-
Wodden Case
-
MOQ:
-
1 Set
Product Overview

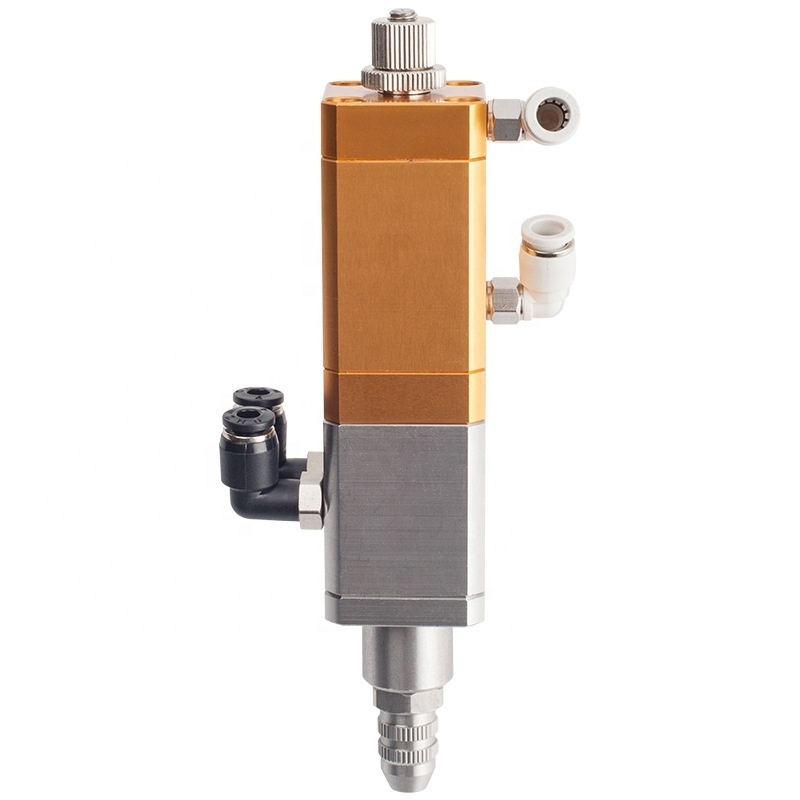

Liquid Dispenser Valve
Can be connected with needle tube,coated with hardcover, and there action speed of dispensing valve is fast.
FEATURES AT A GLANCE
Working principle: The back-suction dispensing valve adopts the structure of upward movement to close the glue, so that the glue is stopped and the glue is sucked back and cut off at the same time, reducing the residual glue on the remaining glue head, so that the dispensing does not cause leakage or stringing.
Female precision structure: the body of the rubber valve is anodized by aluminum alloy, and the sealing material is made of PTFE, and the parts in contact with the colloid are all corrosion-resistant materials
Fine atomization and adjustable glue volume
Applicable fluids: single-component liquids such as adhesives, paints, UV glue, alcohol, white latex, grease, ink, etc.
Suitable for all kinds of good fluidity, medium viscosity one-component glue
Meet the needs of multi-field dispensing operations
PRODUCT SPECIFICATIONS
|
Product weight
|
450g
|
Fluid inlet
|
1/8 thread
|
|
Operating rate
|
Less than 600/min
|
Cylinder
|
Double action
|
|
Feeding pressure
|
10kg
|
Glue mixing ratio
|
1:1
|
|
Use air source
|
4-7kgf/cm
|
Operating viscosity
|
1-100000.cps
|
|
Body material
|
Aluminum alloy anode + stainless steel
|
Outer diameter size
|
42(H)147
|
PRODUCT CONFIGURATION
Used with Dispensing Valve
Used with Dispensing Needle
Used with Dispensing Mixer
