Quick Details
-
Brand Name:
-
F&C, F&C
-
Product name:
-
AC voltage 220V 2-wire, diffuser 40cm photo electric switch
-
Model type:
-
reflective sensing
-
Light source:
-
850nm infrared modulated light
-
Detection distance:
-
40cm
-
Working voltage:
-
AC 220V
-
Certificate:
-
Rohs
-
Entry cable:
-
dia4*2m/2 wires
-
Material:
-
ABS
-
photo electric sensor:
-
photo electric sensor
Quick Details
-
Use:
-
Position Sensor
-
Model Number:
-
HRRI-S40NC/AC
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
F&C, F&C
-
Product name:
-
AC voltage 220V 2-wire, diffuser 40cm photo electric switch
-
Model type:
-
reflective sensing
-
Light source:
-
850nm infrared modulated light
-
Detection distance:
-
40cm
-
Working voltage:
-
AC 220V
-
Certificate:
-
Rohs
-
Entry cable:
-
dia4*2m/2 wires
-
Material:
-
ABS
-
photo electric sensor:
-
photo electric sensor
Square shape photo sensor, AC voltage 220V 2-wire, diffuser 40cm photo electric switch
Specifications for photo electric sensor:
| Model | HRRI-S40NC/AC |
| Detection Type | reflection sensing |
| Standard Detection Object Size | 10cm*10cm white paper |
| Detection Distance | 40cm |
| Output Type | NPN.NO.NC/ PNP.NO.NC |
| Light Source | 850nm infared modulated light |
| Operating Voltage | 220V AC |
| Response Time | 0.5ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -20 to -60 (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/ 2 wires |
( photo electric sensor ) advantages :
1. Ideal for general-purpose logistics photoelectric switch device.
2. Around 40cm detecting distances.
3. Water-proof IP66.
4. Global(EN Specifications and NPN,PNP applicable.
5. OEM order accepted, 18 months warranty.

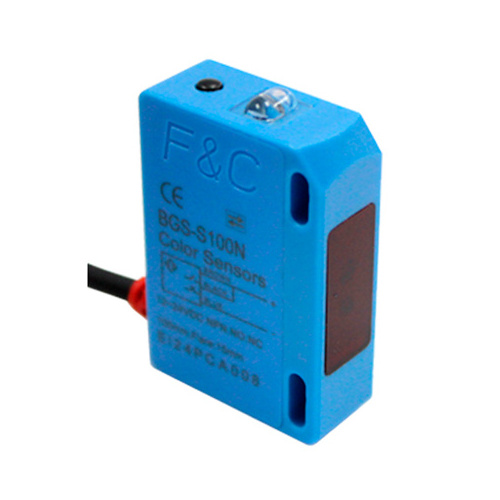

Photos (photo electric sensor) :
Dimensions ( photo electric sensor ) :
1. We will ship our product aboard with standard export package and customized package also accepted. Generally, all order will be shipped within 5 days after payment confirmed.
2. For small quantity, We will Ship our product to you by express.
3. For mass production , We will ship our product to you by Air or sea.
