- Product Details
- {{item.text}}
Quick Details
-
Conveyor Load:
-
300 kg
-
Conveyor speed:
-
0.22 m/s
-
Penetration:
-
36~40 mm steel
-
Resolution:
-
40 AWG
-
Film safety:
-
Guarantee ISO 1600 Film
-
X-ray leakage:
-
<1.0 μSv/h
-
Anode voltage:
-
100~160 kV
-
Beam direction:
-
80°
-
X-ray converter:
-
L-Shaped Photodiode Array
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Fangjiwuxian
-
Tunnel Size:
-
1000 x 800 mm
-
Conveyor Load:
-
300 kg
-
Conveyor speed:
-
0.22 m/s
-
Penetration:
-
36~40 mm steel
-
Resolution:
-
40 AWG
-
Film safety:
-
Guarantee ISO 1600 Film
-
X-ray leakage:
-
<1.0 μSv/h
-
Anode voltage:
-
100~160 kV
-
Beam direction:
-
80°
-
X-ray converter:
-
L-Shaped Photodiode Array

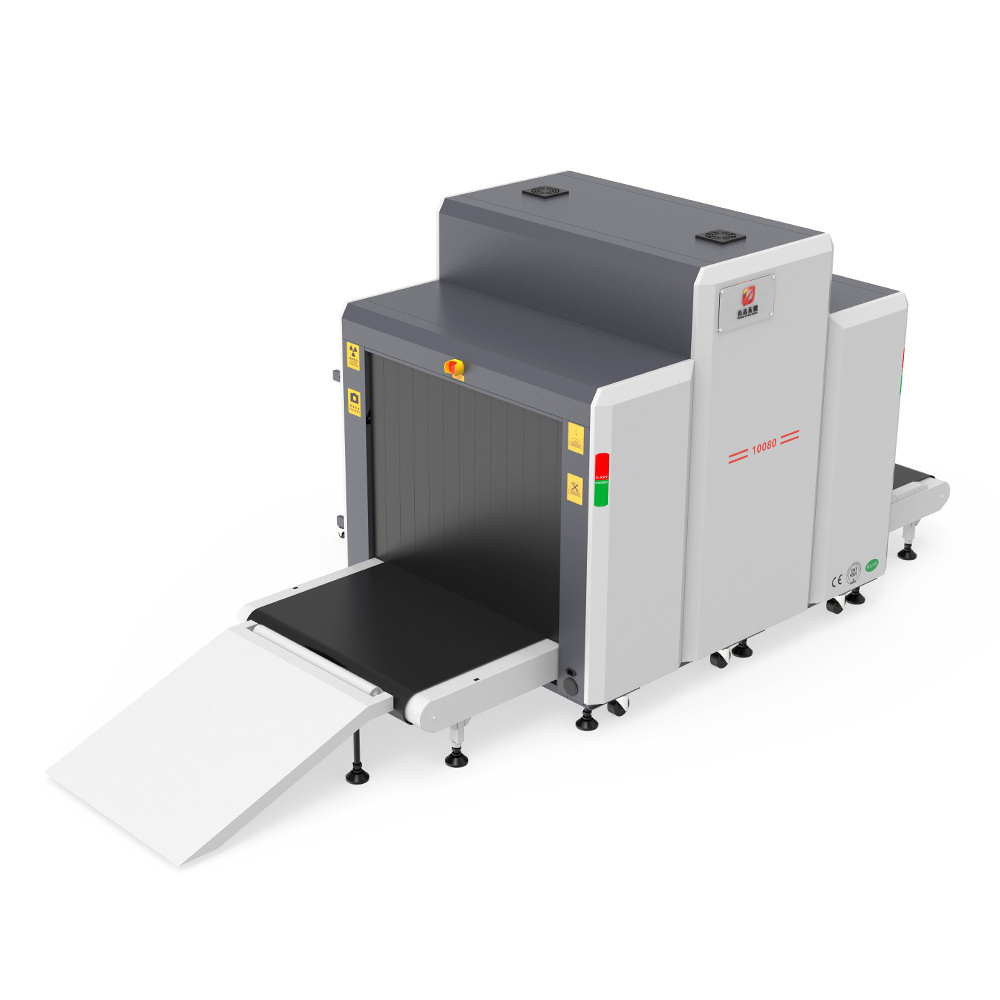

X Ray Baggage Scanner Paramenters
|
Basic parameters
|
|
Operating environment
|
|
||
|
The tunnel size
|
1000(W)*800(H)mm
|
Operating temperature/humidity
|
0℃ ~ 45℃/ 20% ~ 95% (non-condensing)
|
||
|
Conveyor Max Load(kgs)
|
150kg
|
Storage temperature/humidity
|
-20℃ ~ 60℃/ 20% ~ 95% (non-condensing)
|
||
|
Conveyor Speed(m/s)
|
0.22
|
Operating voltage
|
220VAC (±10%) 50±3HZ
|
||
|
Noise
|
＜55dB
|
Power loss
|
0.5KW (maximum)
|
||
