Quick Details
-
Product name:
-
8 Frequencies Beam Detector
-
Number of beams:
-
3 beams
-
Outdoor detection range:
-
250 meters
-
Material:
-
Aluminium + PC
-
Response speed:
-
50~500msec adjustable
-
Beam frequency:
-
8 channel selectable
-
Detection system:
-
Simultaneous blocking of 3 infrared beams
-
Power input:
-
DC 10-36 / AC 8-24V
-
LED:
-
Digit LED display
-
Warranty:
-
1 Year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
ABE-250F
-
Product name:
-
8 Frequencies Beam Detector
-
Number of beams:
-
3 beams
-
Outdoor detection range:
-
250 meters
-
Material:
-
Aluminium + PC
-
Response speed:
-
50~500msec adjustable
-
Beam frequency:
-
8 channel selectable
-
Detection system:
-
Simultaneous blocking of 3 infrared beams
-
Power input:
-
DC 10-36 / AC 8-24V
-
LED:
-
Digit LED display
-
Warranty:
-
1 Year
Home security outdoor wireless perimeter alarm sensors 3 beams

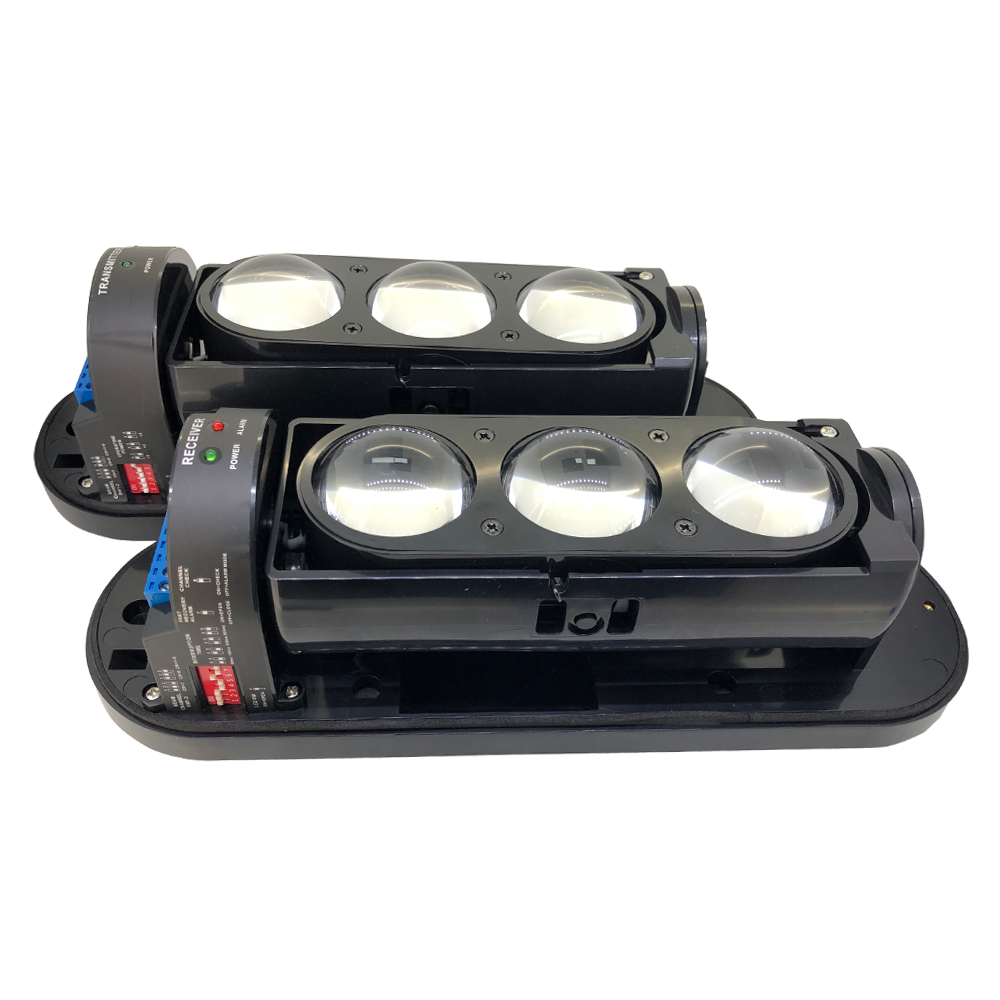

Structure
Features
1. 3 beams active infrared detector: can reduce the false alarms that are caused by bird, pet leaf...etc.
2. Selectable frequency 8 channels: Stacking, Straight line, Square or other various applications are allowed.
3. LED display signal grade for easy alignment.
4. Adopt digital DIP technology, frequency, sensitivity, indicator and operation power can be adjusted through DIP switches.
5. Special-purpose DSP chip, patent multidimensional fault-tolerant, true detection alarm technology.
6. NC/NO relay outputs, compatible with other brand alarm systems like Honeywell, Bosch, Paradox, DSC, GE Alef, HONEYWELL etc.
7. Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system.
8. AGC circuit: when faced with fog or inclement weather,t he detector sensitivity will increase automatically.
9. Fully seal structure, with rain cover design, C relay output.
10. External Protection: Protection from rain, dust & insects.
11. Sniper viewfinder with x2 magnification
12. Horizontal ±90° / vertical ±10° optical angle can be easy to adjust.
Parameters
|
Model |
ABE-50F |
ABE-100F |
ABE-150F |
ABE-200F |
ABE-250F |
|
|
Detection Range |
Outdoor |
50m |
100m |
150m |
200m |
250m |
|
Indoor |
150m |
300m |
450m |
600m |
750m |
|
|
Maximum Arrival Distance |
300m |
600m |
900m |
1200m |
1500m |
|
|
Number of beams |
3 beams |
|||||
|
Detection Method |
Simultaneous blocking of 3 infrared beams |
|||||
|
Interruption Time |
50msec, 150msec,300msec,500msec (selectable) |
|||||
|
Beam frequency |
8 channel selectable |
|||||
|
Power Supply |
DC10~36V; AC8~24V |
|||||
|
Current Consumption |
55mA max |
55mA max |
60mA max |
60mA max |
60mA max |
|
|
LED |
Red LED Alarm(receiver), Digtal LED Display |
|||||
|
Alarm Output |
Form C, Contact capacity: AC / DC30V, 0.5A or less |
|||||
|
Tamper Switch |
N.C., open when cover is removed |
|||||
|
Fault Alarm(optional) |
N.C Fault Output when the signal is incompetent |
|||||
|
Operating Temperature |
-25℃ to +55℃ |
|||||
|
Environment Humidity |
95% max |
|||||
|
Alignment Angle |
Horizontal 180°(±90°), Vertical 20°(±10°) |
|||||
|
Mounting |
Wall or Pole |
|||||
|
Protection Degree |
IP65 |
|||||
|
Material |
PC engineering plastic |
|||||
|
Dimension (L*W*H) |
295*95*90mm |
|||||
|
Weight (Transimtter and Receiver) |
1500g |
|||||
|
Attachments |
U bracket |
4pcs, 70.4*37.5*21.5mm, δ=1.5mm, stainless steel |
||||
| Pole mounting srew | 8pcs, PM4*30mm | |||||
| Installation manual | 1 | |||||
| Spiral Terminal Dedew and Defrost Method | Heaters(need to purchase separately) | |||||
| Note: When environment termperature lower than -20℃, please use heaters to ensure normal working. Heater is non-polarized. | ||||||
