Quick Details
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity, Customzised
-
Power:
-
0.5~5.5
-
Weight (KG):
-
250 kg
-
Product name:
-
Ceramic membrane Water treatment equipment
-
Type:
-
High Dust Capacity
-
Application:
-
Water Filtration System
-
Medium Material:
-
Ceramic membrane filter
-
Frame:
-
Galvanized Steel
-
Usage:
-
Industrial water treatment
-
Keywords:
-
ceramic membrane filter mechine
-
Capacity:
-
customized
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TOPEP
-
Material:
-
Wooden package with film, mental
-
Weight:
-
Depends on capacity
-
Size:
-
Depends on capacity, Customzised
-
Power:
-
0.5~5.5
-
Weight (KG):
-
250 kg
-
Product name:
-
Ceramic membrane Water treatment equipment
-
Type:
-
High Dust Capacity
-
Application:
-
Water Filtration System
-
Medium Material:
-
Ceramic membrane filter
-
Frame:
-
Galvanized Steel
-
Usage:
-
Industrial water treatment
-
Keywords:
-
ceramic membrane filter mechine
-
Capacity:
-
customized
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Online support
Product Description

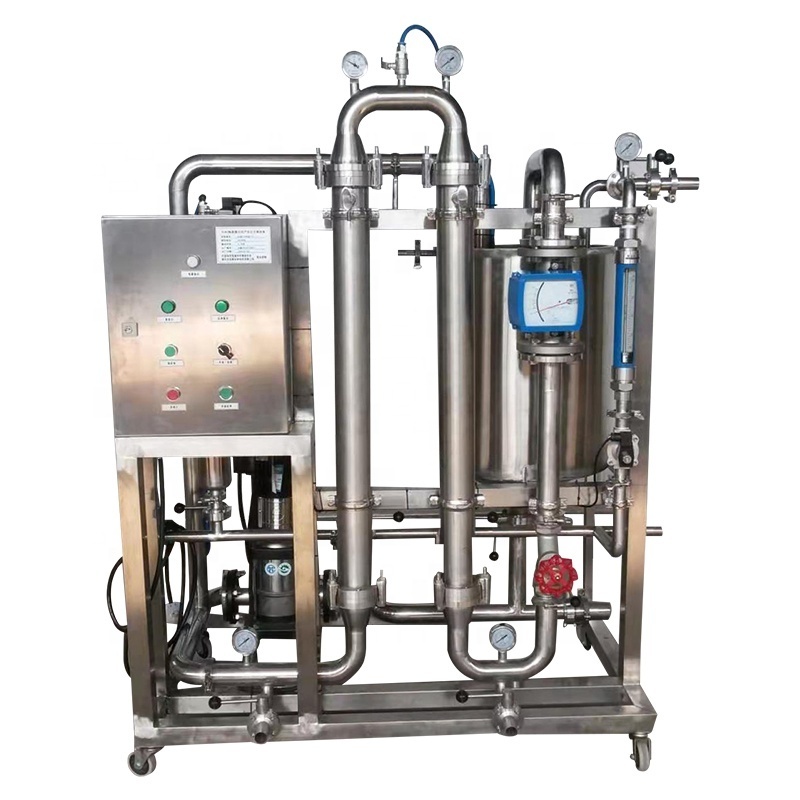

Ceramic membrane housing is a ceramic membrane assembly of the pressure shell, according to the needs of industrial production, can be achieved through different specifications of the membrane assembly shell of different diameters and different areas of the ceramic membrane of the concentration of filling membrane assembly design, sealing design is very important for the long-term stable operation of the ceramic membrane complete set system
Different series of specialized ceramic membrane module design, can adapt to the special requirements of different fields of technology, to ensure that the requirements of industrial production single set of membrane module filling membrane area from 0.01
㎡
to 100㎡
Specification
|
Item
|
Parametets
|
|
Name
|
5.8㎡ ceramic membrane equipment
|
|
Membrane aperture dia
|
0.2 micron
|
|
Working temperature
|
0℃~90℃
|
|
Maximum working pressure
|
0.6Mpa
|
|
Application PH
|
0~14
|
|
Number of filling membrane elements
|
1, 3, 5, 7, 12, 14, 19, 37, 61, 91, 99, 138, 349 cores
|
|
Length of matching membrane element
|
100~1200mm/ od 12, 25, 30, 40, 41mm
|
|
Main material
|
SUS304,SUS316(L), titanium, UPVC,FRPP
|
|
Sealing material
|
EPDM, fluorine rubber, silicone rubber, nitrile rubber, etc
|
|
Core Components
|
Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
|
|
Interface type
|
flange, clamp, live/DN15~DN800
|
|
Nominal pressure
|
1.0mpa, 1.6mpa, 2.5mpa
|
Can be customized according to customer requirements
Main features of the equipment
1.Good chemical stability,and remarkable anti-acid,alkali,organic solvent and strong oxidant ability
2.It has high mechanic strength, It is easy to wash and the membrane has long service life
3.It is resistant to high temperature, and can endure steam and high temperature disinfection
4.The apertures are narrow and have high separation efficiency
