Width:2.5-70mm
Thickness: 2.5-5mm
Dimension can be customized
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
WL
-
Color:
-
Black
-
Application:
-
Hydraulic Cylinder
-
Certificate:
-
ISO9001:2008
-
Surface:
-
Flat or impression
-
Chamfer:
-
available
-
Packing:
-
Roll Packing
-
Payment:
-
T/T
-
ODM:
-
Available
-
OEM:
-
Available
Quick Details
-
Size:
-
Width:2.5-70mm Thickness: 2.5-5mm, Width:2.5-70mm Thickness: 2.5-5mm Dimension can be customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JST
-
Model Number:
-
WL
-
Color:
-
Black
-
Application:
-
Hydraulic Cylinder
-
Certificate:
-
ISO9001:2008
-
Surface:
-
Flat or impression
-
Chamfer:
-
available
-
Packing:
-
Roll Packing
-
Payment:
-
T/T
-
ODM:
-
Available
-
OEM:
-
Available
Product Description

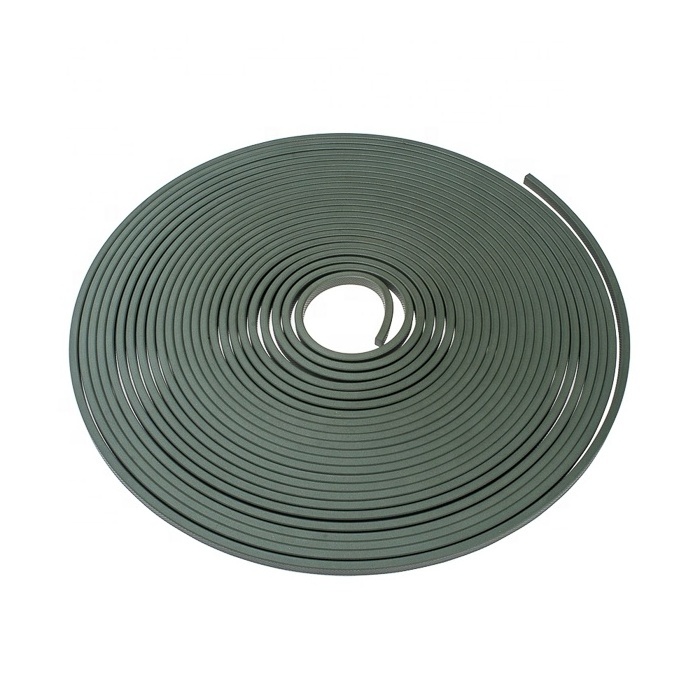

Wear Resistant wear bands 40% bronze filled PTFE guide strip hydraulic seals
Guide and wear strips can keep the piston centered as well as preventing metal-to-metal contact. The metal-to-metal contact will damage and score the surfaces and eventually cause seal damage, leakage and component damage. It is used to guide the piston and piston rod of the hydraulic cylinder to absorb the transverse force，optimizing the performance of the sealing system.
The PTFE guide strip is machined, and all JST’s PTFE guide strip are rounded to install in the groove with conventional rounding radius, which reduces the risk of damage to the edge of the guide strip or high friction due to wedge movement, which is caused by the radius at the bottom of the groove.
PTFE guide strip is suitable for light load or occasions where other designs are not allowed due to medium, temperature, friction or speed.
Size：
Advantage:
1. High wear resistance
2. Low friction
3. Reduce vibration
4. Compatible with virtually all fluid media
5. Flexible and easy to assemble
6. Low maintenance cost.
Working Conditions:
●Working Temperature: -100℃ to +200℃
●Working Speed: ≤5m/s
●Material:
PTFE + Bronze
Phenolic resin + fiber
Phenolic Resin + Fabric
Specification
|
item
|
value
|
|
Size
|
Width:2.5-70mm Thickness: 2.5-5mm
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
JST
|
|
Model Number
|
WL
|
|
Color
|
Black
|
|
Application
|
Hydraulic Cylinder
|
|
Certificate
|
ISO9001:2008
|
|
Size
|
Width:2.5-70mm Thickness: 2.5-5mm Dimension can be customized
|
|
Surface
|
Flat or impression
|
|
Chamfer
|
available
|
|
Packing
|
Roll Packing
|
|
Payment
|
T/T
|
|
ODM
|
Available
|
|
OEM
|
Available
|
