Quick Details
-
Model Number:
-
ECO2-R
-
Usage:
-
Gas Sensor
-
output:
-
0-10V or 4-20mA
-
Certificate:
-
CE
-
power:
-
AC/DC 24V
-
Application:
-
HVAC
-
Material:
-
ABS
-
Color:
-
White
-
Detect Gas:
-
CO2
Quick Details
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CH-BA
-
Model Number:
-
ECO2-R
-
Usage:
-
Gas Sensor
-
output:
-
0-10V or 4-20mA
-
Certificate:
-
CE
-
power:
-
AC/DC 24V
-
Application:
-
HVAC
-
Material:
-
ABS
-
Color:
-
White
-
Detect Gas:
-
CO2

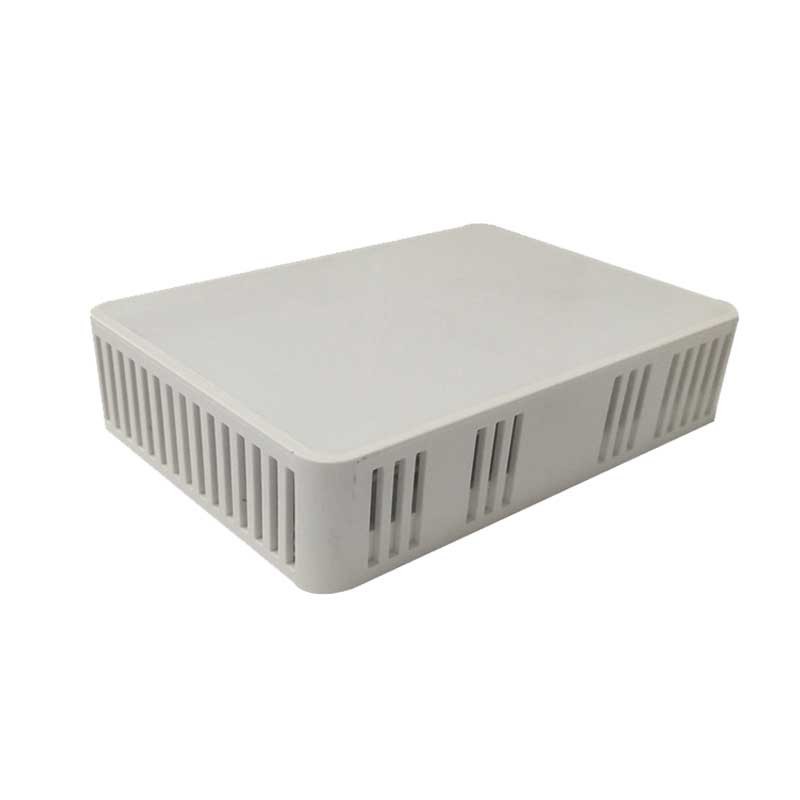

New Type Wall Mount Wall Co2 Sensor In Room
|
General |
|
|
Standard |
EMC Directive EMC/89/336/EEC |
|
Working Temperature |
0 - 50°C |
|
Storage Temperature |
.-40 - 70°C |
|
Working Humidity |
0 - 95% (no condensing) |
|
Working Environment |
Public place, business building, high rise residential area and industrial enviroment. |
|
Warm-up Time |
≤ 1 min |
|
Expecting life span |
> 5 years |
|
Maintenance intervals |
2 years |
|
Case Material |
ABS FR |
|
Protection Grade |
IP20 |
|
Power |
|
|
Power supply |
24VAV/DC +/-10%,50Hz(inside half-wave rectification) |
|
Power consumption |
< 1W |
|
Carbon Dioxide Detect(CO2) |
|
|
Measurement |
Infrared Ray |
|
Sensing range |
0 - 2,000ppm CO2 |
|
Reprtitive Rate |
± 70ppm + reading ±1% |
|
Accuracy |
± 70ppm + reading ±2% |
|
Output signal |
|
|
Vo linear conversion range |
0-10VDC corresponding 0-2,000ppm |
|
Io linear conversion range |
4-20 ma corresponding to 0-2000 PPM |
|
Discrimination |
10 bits, 10mV / 0.016mA (2 ppm) |
