Quick Details
-
Productivity:
-
14M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Weight:
-
600 kg
-
Dimension(L*W*H):
-
1600*700*1300mm
-
After-sales Service Provided:
-
Online support
-
Product Name:
-
Concrete Pump
-
Capacity:
-
6-8m3/h
-
Max.Aggregate Size:
-
20mm
-
Conveying Pipe Diameter:
-
65mm-80mm
-
Electric Power:
-
11kw
-
Working Principle:
-
S Pipe Valve
-
Feature:
-
Hydraulic Concrete Pump
-
Certification:
-
CE
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
130M
-
Max. horizontal conveying distance:
-
180M
-
Productivity:
-
14M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Weight:
-
600 kg
-
Dimension(L*W*H):
-
1600*700*1300mm
-
After-sales Service Provided:
-
Online support
-
Product Name:
-
Concrete Pump
-
Capacity:
-
6-8m3/h
-
Max.Aggregate Size:
-
20mm
-
Conveying Pipe Diameter:
-
65mm-80mm
-
Electric Power:
-
11kw
-
Working Principle:
-
S Pipe Valve
-
Feature:
-
Hydraulic Concrete Pump
-
Certification:
-
CE

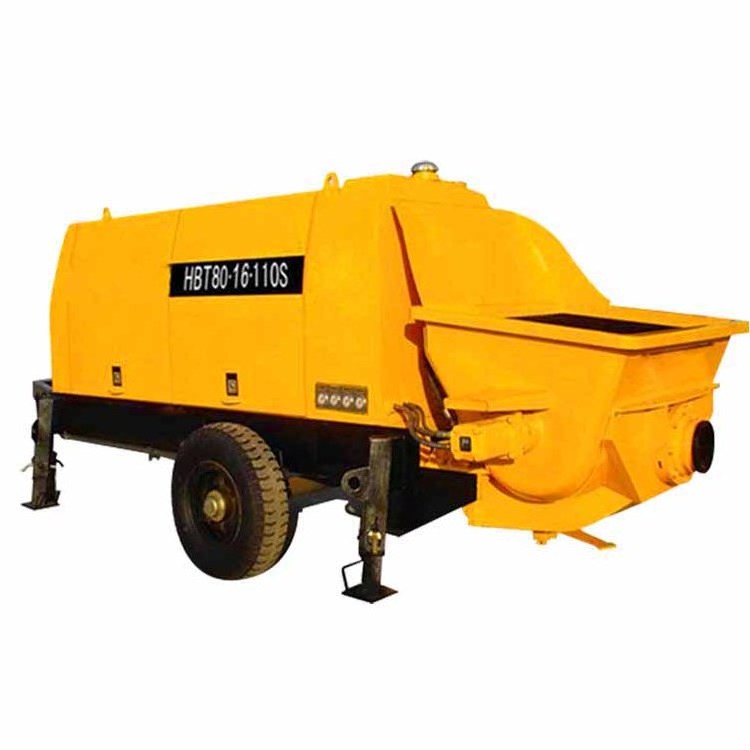

Trailer concrete pumps
Newly developed concrete pump can deliery concrete, mortar, cement, fireproof material, etc. It is suitable for fine stone concrete transportation to higher construction floor column pouring. It is the smallest concrete pump in China, mainly for some special construction conditions or narrow sites, which is inconvenience in work or difficult to complete the construction schedule.
1.Hydraulic system adopts independent three-loop control, high reliability glass plate and cutting ring are with hard alloy, wear resistance and long service life.
2.Pump mechanism uses a two-cylinder piston, with advanced performance and good continuity.
3.Electrical components such as contactors and push button switches are reliable in operation, simple in control circuit, and equipped with switches for easy operation.
4.The main seals are made of high-quality seals to prevent internal and external leakage of the hydraulic system.
|
Concrete Pump
|
|
| Model | YG-10 |
| Motor | Electric, 380V, 50Hz, 3Phases |
| Power | 11kw |
| Capacity | 5-6m3/h |
| Pressure | 15Mpa |
| Horizontal Distance | 40m |
| Vertical Distance | 20m |
| Cylinder | 110mm |
| Stroke | 360mm |
| Tube Diameter | 80mm |
| System | Hydraulic |
| Cooling | Air-cooled |
| Dimension | 1750*700*1100mm |
| Weight | 650kg |
| Color | Red or customized |
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Q: Are you trading company or manufacturer?
A:
We are original equipment manufacturer.
Q: How long is your delivery time?
A:
It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
Q: Do you provide samples? Is it free or extra?
A:
Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
Q: What is your terms of payment?
A:
We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
