Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1485*1150*1130mm
-
Machine Weight:
-
1000 kg
-
Bucket capacity:
-
0.2m³/380kg
-
Warranty of core components:
-
2 Year
-

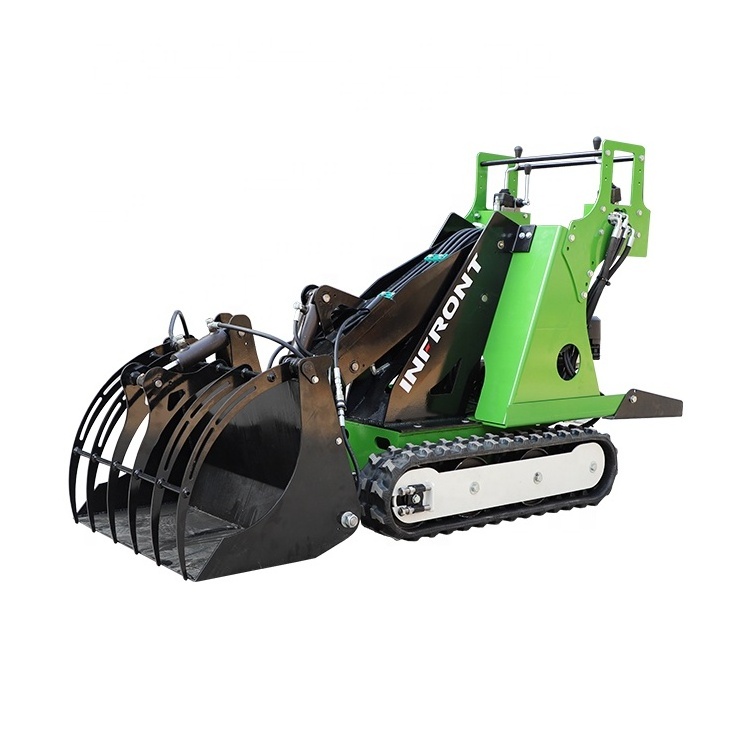

Product name:
-
Mini skid steer Loader
-
Certification:
-
CE ISO EPA
-
Brand:
-
INFRONT
-
Color:
-
Customer's Requiement
-
Keyword:
-
Front Loader Tractor
-
Name:
-
Wheel Skid Steer Loader
-
Key words:
-
Small Mini Loader
-
After-sales Service Provided:
-
Video Technical Support
-
Product:
-
Machinery Engineering Construction Machinery
-
Other name:
-
Wheel Backhoe Loader Excavator
Quick Details
-
Engine Brand:
-
Other
-
Power:
-
Other, 15.7 kw, 15.5KW
-
Brand Name:
-
INFRONT
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
1485*1150*1130mm
-
Machine Weight:
-
1000 kg
-
Bucket capacity:
-
0.2m³/380kg
-
Warranty of core components:
-
2 Year
-
Product name:
-
Mini skid steer Loader
-
Certification:
-
CE ISO EPA
-
Brand:
-
INFRONT
-
Color:
-
Customer's Requiement
-
Keyword:
-
Front Loader Tractor
-
Name:
-
Wheel Skid Steer Loader
-
Key words:
-
Small Mini Loader
-
After-sales Service Provided:
-
Video Technical Support
-
Product:
-
Machinery Engineering Construction Machinery
-
Other name:
-
Wheel Backhoe Loader Excavator
FEATURES
● RELIABLE GASILINE DIESEL ENGINE
Engine, Made in Japan/USA, EPA certified, provides fast cycle times, great digging power and excellent pushing ability.
● DUAL RGONOMIC JOYSTICK CONTROLS
Real Dual ergonomic Joystick controls can allows you to easily operate the drive system and the boom at the same time.
● EXCELLENT MANEUVERABLITY
41-in Narrow width maneuver in and out of small spaces where other large traditional machines just can not go.
● OUTSTANDING ACCESS
Easy for operators of different sizes to jump on and off the machine instead of getting into and out of a cab.
● Multifunctional accessories
Dozens of accessories can be replaced, suitable for different environments, and the control interface is easy to use and master.
● RELIABLE GASILINE DIESEL ENGINE
Engine, Made in Japan/USA, EPA certified, provides fast cycle times, great digging power and excellent pushing ability.
● DUAL RGONOMIC JOYSTICK CONTROLS
Real Dual ergonomic Joystick controls can allows you to easily operate the drive system and the boom at the same time.
● EXCELLENT MANEUVERABLITY
41-in Narrow width maneuver in and out of small spaces where other large traditional machines just can not go.
● OUTSTANDING ACCESS
Easy for operators of different sizes to jump on and off the machine instead of getting into and out of a cab.
● Multifunctional accessories
Dozens of accessories can be replaced, suitable for different environments, and the control interface is easy to use and master.
380Pro
380N
500N
380S
| Briggs Stratton 3864 | Rato R740 | ||
| Lifting Capacity KG | 350 | 380 | 380 |
| Engine Type | HONDA HGX690 | Briggs Stratton 3864 | Rato R740 |
| Engine Capacity(kw/Hp) | 16.5/22.1 | 18.2/23 | 15.5KW/21 |
| Displacement cm3/Number of cylinders | 688/2 | 670/2 | |
| Rotation speed per minute(rpm) | 3600 | 3600 | 3600 |
| Maximum torque NM/rpm | 38.6/2500 | 50/3000 | 45/2500 |
| Cooling method | Air-cooled | Air-cooled | Air-cooled |
| Fuel/Fuel tank capacity | Gasoline 95#/20L | Gasoline 95#/20L | Gasoline 95#/20L |
| Drive System | Hydraulic four-wheel drive | Hydraulic four-wheel drive | Hydraulic four-wheel drive |
| Speed(km/h) | 0-6(By Scale) | 0-6(By Scale) | 0-6(By Scale) |
| Enhancement of capabilities(kg) | 350 | 300 | 300 |
| Traction force(kg) | 409 | ||
| Hydraulic drive system(L/bar) | 35/200 | 50/180 | 50/180 |
| Hydraulic oil tank capacity(L) | 40 | 35 | 35 |
| Standard Tires | 22*11.00-8 | 18*8.5-8 | 18*8.5-8 |
| Electrical system(V) | 12 | 12 | 12 |
| Battery Capacity(Ah) | 45 | 36 | 36 |
| Braking System | Hydraulic enclosed brake | Hydraulic enclosed brake | Hydraulic enclosed brake |
| Drive | Skid steering | Skid steering | Skid steering |
| Hydraulic Cylinder Thrust(KG) | 600 | ||
| Rising Force(KG) | 300 | ||
| Overall Dimensions(MM) | 1525*1050*1258 | 1485*1150*1300 | 1485*1150*1300 |
| Weight(KG) | 630 | 830 | 830 |
1. Warranty
Q: How to identify the quality about mini excavator for sale?
A: Our mini crawler excavator have a 12 months warranty after sale.
2. Packing
Q:What is the container size of cheap mini digger?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
3. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these 1 ton china excavator, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
