- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HJ
-
Voltage:
-
380V /50HZ
-
Dimension(L*W*H):
-
1000*650*1290
-
Weight (KG):
-
120
-
Power (kW):
-
1.1KW
-
Product name:
-
Blade Sharpen Machine
-
Application:
-
Plastic Crusher Blade
-
Usage:
-
Surface Polishing
-
Grinding wheel:
-
BW D125*D95*D32*12
-
Grinding Angle:
-
90 Industrial Knife Sharpener
-
Type of grindable blade:
-
Straight
-
Standard grinding wheel:
-
White Corundum Wheel
-
Grinding Wheel Speed:
-
1450/1740 R.P.M
-
Color:
-
Customized Optional
-
Key word:
-
Polishing Machine Parts
Quick Details
-
Wheel Size(mm):
-
200XD110X100
-
Year:
-
2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HJ
-
Voltage:
-
380V /50HZ
-
Dimension(L*W*H):
-
1000*650*1290
-
Weight (KG):
-
120
-
Power (kW):
-
1.1KW
-
Product name:
-
Blade Sharpen Machine
-
Application:
-
Plastic Crusher Blade
-
Usage:
-
Surface Polishing
-
Grinding wheel:
-
BW D125*D95*D32*12
-
Grinding Angle:
-
90 Industrial Knife Sharpener
-
Type of grindable blade:
-
Straight
-
Standard grinding wheel:
-
White Corundum Wheel
-
Grinding Wheel Speed:
-
1450/1740 R.P.M
-
Color:
-
Customized Optional
-
Key word:
-
Polishing Machine Parts
Product Description

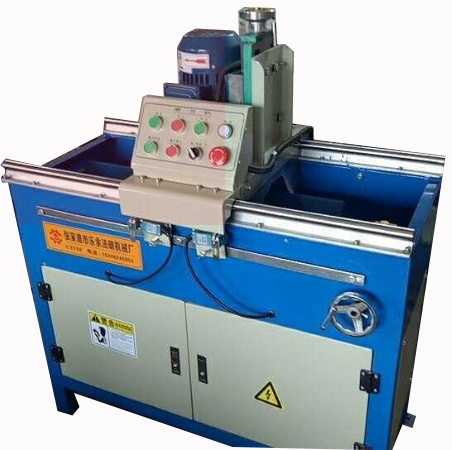

Knife sharpener machine is designed according to plastic crusher bits easy to loss which is specially used in sharpening the crusher bits. It has compact structure, comfortable outlook, high efficiency, easy control, is suitable for sharpening and processing each kind of straight edge cutting tool. It is composed of machine frame, operating platform, slide carriage, reduction motor, grinding head, electrical equipment. It is suit for our PP/PE/PET crusher.
Parameters:
1. The effective grinding length is 700mm-1200mm. If the blade is small, multiple pieces can be grinded at one time
2 grinding angle ± 90 °
3. Width of electromagnetic suction table 160mm
4 grinding head motor power: 2.2kw/4kw, the rotation direction of cutter is left-handed
6 grinding head speed 1450rpm
7 grinding wheel 200 × φ 110 × 100mm
8 stroke speed of grinding head 12-16m / min
Broken blade grinder product introduction
This machine tool is specially designed according to the fact that the blade of plastic crusher is easy to blunt. It is a supporting product of plastic crusher, which greatly improves the working efficiency of the crusher. At the same time, it can also grind the straight blade of woodworking machine tool and other machine tools
Structural features: the machine tool is composed of body, workbench, linear sliding bar, slide block, reducer motor, grinding head motor, cooling system and electrical control parts. The structure of each part is compact, the appearance is beautiful and reasonable, the grinding head moves at a constant speed and is stable. The machine is small in size, light in weight, fast in effect, stable and easy to adjust. It is suitable for processing various straight edge cutters.
Details Images
Features of grinder:
1. Rolling positioning linear guide rail, with high-quality wear-resistant steel belt inlaid on its surface, has stable and reliable transmission and long service life;One time refueling by hand pressure, time saving and convenient;
2. The worktable is adjusted by worm gear transmission, with accurate transmission ratio and high transmission efficiency;
3. Electromagnetic chuck cutter table, with super suction, reliable positioning, convenient operation and high working efficiency;
4. Special grinding head motor, adjustable axial clearance, stable transmission, large grinding amount, long service life and high precision;
Size Information
Model You Can Chose
|
Model
|
Working Range
|
Moving motor
|
Dimension
|
Weight
|
|
HJ-MDJ-700
|
0~700
|
90YSJ-4 GS60
|
1000*650*1290mm
|
120KG
|
|
HJ-MDJ-1000
|
0~1000
|
90YSJ-4 GS60
|
1300*650*1290mm
|
220KG
|
|
HJ-MDJ-1200
|
0~1200
|
90YSJ-4 GS60
|
1500*700*1500mm
|
420KG
|
Packing&Shipping
Company Introduction
Gongyi JinLong Hengji Heavy Industry Machinery Co.. Ltd
is a comprehensive enterprise related to design, research and development, manufacture, marketing, technical support and installation service. We have been concentrating on waste recycling machinery, include scrap cable wire recycling machine, PCB circuit board recycling machine, waste aluminum plastic composite material aluminum plastic composite panel, medical blister, etc) recycling machine, waste automobile/air conditioner radiator recycling machine, mixed plastics separation machine. With mature production technology and professional sales, engineers and installation team, through the unremitting technological innovation and following the market demand, we have been installed machines in more than 50countries all over the world.
After Sales Service
♦ After-sale service
(1) Installation guidance
When the machine arrives at your company, we will dispatch our technicians to your factory to guide the installation and commissioning at site.
(2) Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3) Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
(1) Installation guidance
When the machine arrives at your company, we will dispatch our technicians to your factory to guide the installation and commissioning at site.
(2) Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3) Warranty
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
FAQ
Blades Sharpen And Blade Grinder for Plastic Machine Blades
1.About the after-sale service, how can you solve the problems that occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replacement parts to be delivered as soon as possible.
2.After placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so most of them can be used directly, also our machine is easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be charged by you.
3.What are your terms of payment?
30% T/T in advance, 70% balance before shipment or Negotiable
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replacement parts to be delivered as soon as possible.
2.After placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so most of them can be used directly, also our machine is easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be charged by you.
3.What are your terms of payment?
30% T/T in advance, 70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below.
